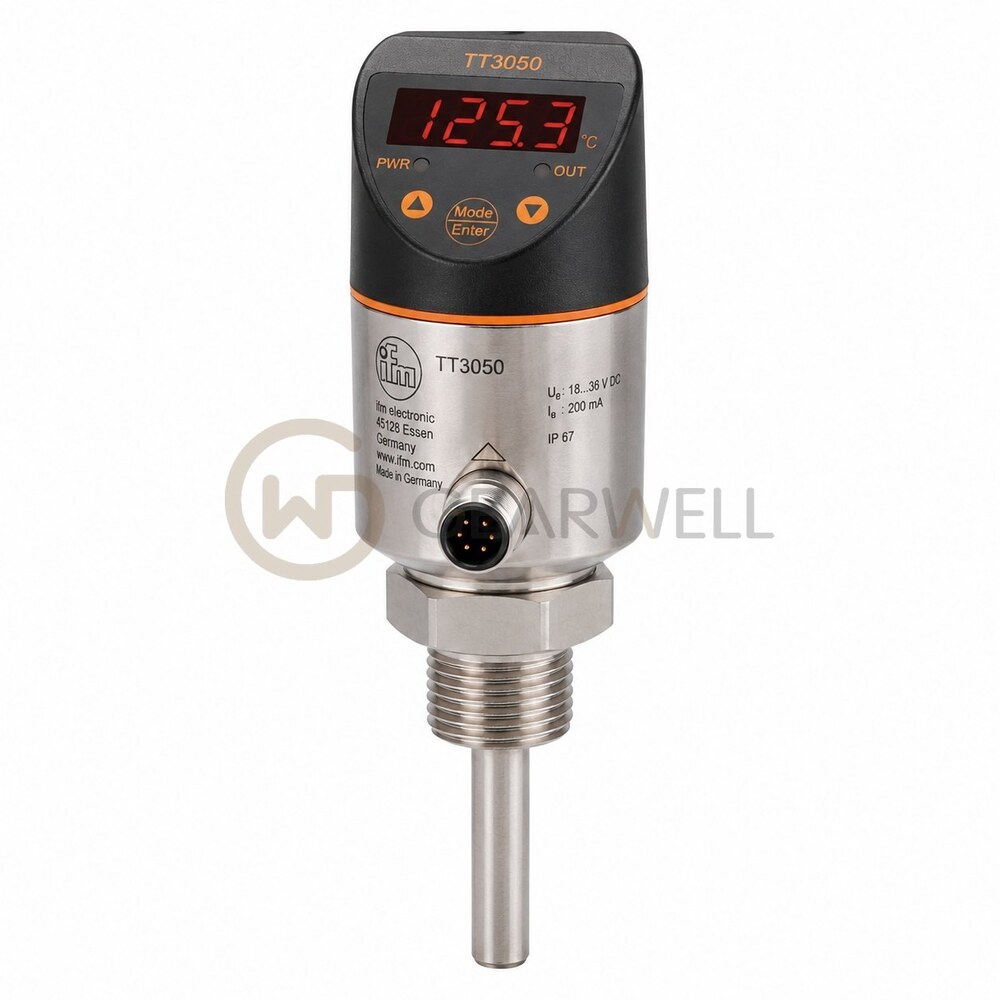

IFM TT3050 Temperature Probe Sensor

Product overview

The ifm TT3050 (TT-300KBBD10-…../US) is a temperature probe sensor for liquids and gases. Its measuring range is -40…150 °C. It uses a Pt 1000 measuring element (DIN EN 60751, class A) in a 360 mm probe, Ø 10 mm, with an installation length of 360 mm, and its dynamic response T05 / T09 is 1 / 3 s. The process connection is a clamp fitting Ø 10 mm, rated to 160 bar, and the wetted parts are stainless steel (1.4404 / 316L). It connects through an M12 connector (A-coded, 4 gold-plated contacts). ifm specifies an accuracy of ±(0.15 K + 0.002 × |t|); accuracy values apply to flowing water. The unit is Ø 10 mm and 381.5 mm long and is rated IP68 and IP69K for -25…80 °C ambient. It has UL approval under file E217884.
