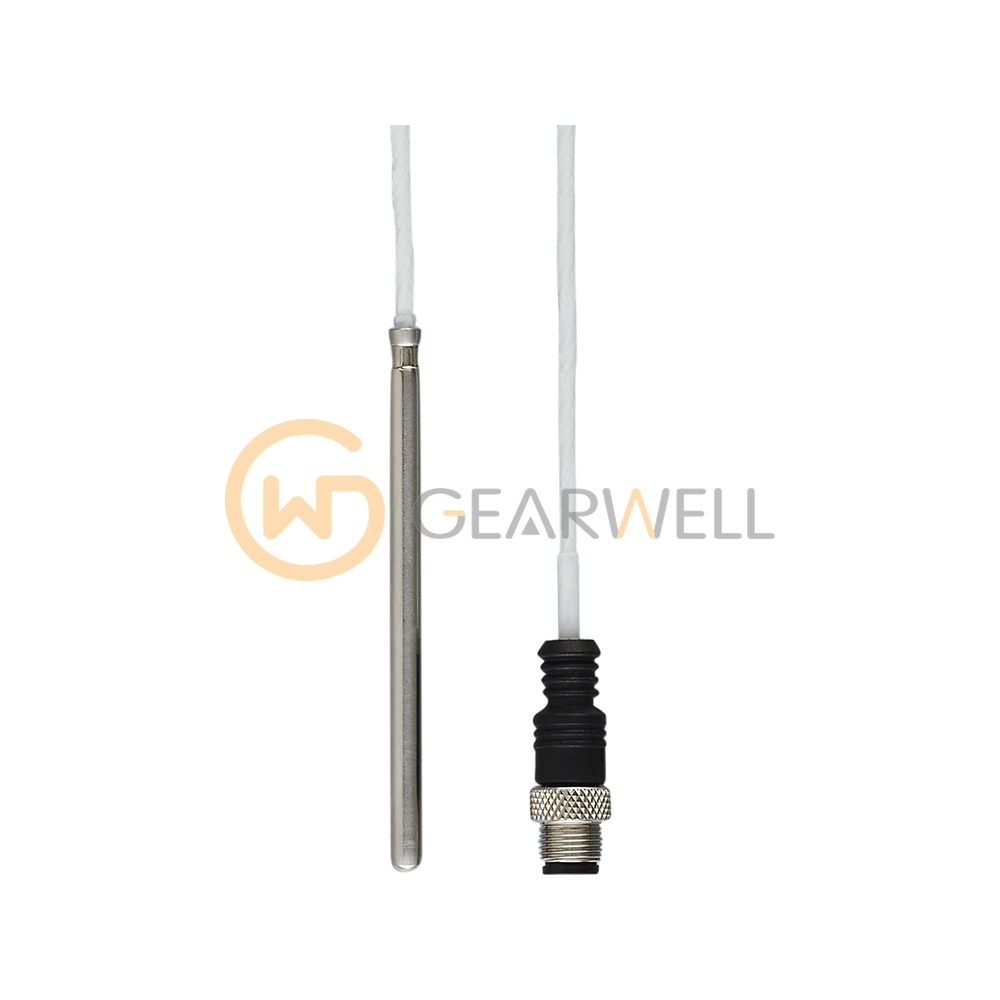

IFM TS2451 Temperature cable sensor with process connection
- Brand
- IFM
- Model
- TS2451
- GEARWELL SKU
- GWP-000012539
- Category
- Pressure, Flow & Temperature
Key specifications
- Housing
- tubular
- Dimensions
- Ø 6 / L = 100 mm
- Protection
- IP 67
- Process connection
- Clamp fitting Ø 6 mm
- Installation length EL
- 50; (medium temperatures < 200 °C: 100) mm
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ifm TS2451 (TS-200KLKD06 …/US) is a temperature cable sensor with process connection for liquids and gases. Its measuring range is -100…600 °C. It uses a Pt 100 measuring element (DIN EN 60751, class A) in a 100 mm probe, Ø 6 mm, with an installation length of 50 mm (100 mm for medium temperatures below 200 °C), and its dynamic response T05 / T09 is 12 / 34 s. The process connection is a clamp fitting Ø 6 mm, and the wetted parts are stainless steel (1.4571 / 316Ti). It has a 2 m PTFE cable rated up to 250 °C and ends in an M12 connector. ifm specifies an accuracy of ±(0.15 K + 0.002 × |t|); accuracy values apply to flowing water. The unit is Ø 6 mm and 100 mm long and is rated IP67.
Technical reference
| Product name | IFM TS2451 Temperature cable sensor with process connection |
|---|---|
| Brand | IFM |
| Model | TS2451 |
| Category | Pressure, Flow & Temperature |
| Housing | tubular |
| Dimensions | Ø 6 / L = 100 mm |
| Protection | IP 67 |
| Process connection | Clamp fitting Ø 6 mm |
| Installation length EL | 50; (medium temperatures < 200 °C: 100) mm |
