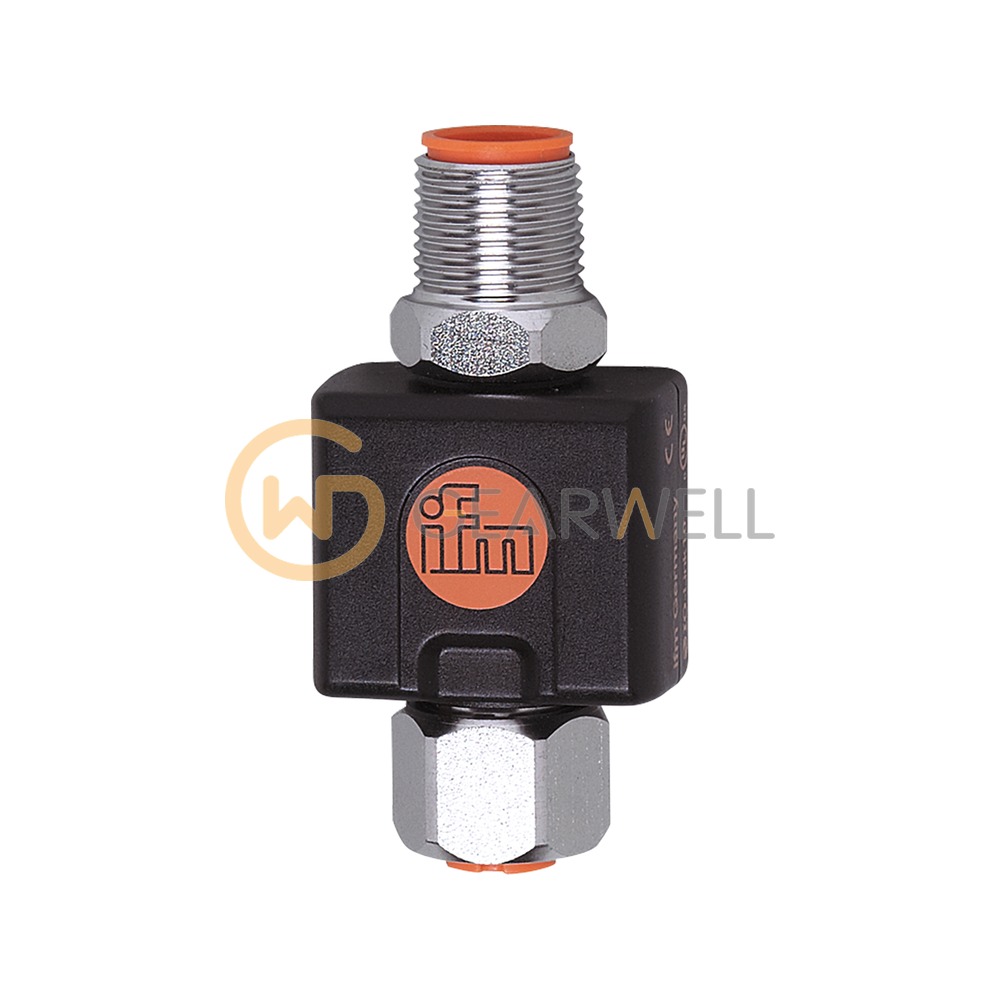

IFM TP3233 Evaluation unit for PT100/PT1000 temperature sensors
- Brand
- IFM
- Model
- TP3233
- GEARWELL SKU
- GWP-000016782
- Category
- Pressure, Flow & Temperature
Key specifications
- Material
- PA; PET
- Connector
- 1 x M12; coding: A; Contacts: 4, gold-plated; Moulded body: TPU (urethane); Locking: stainless steel (1.4404 / 316L); sealing: FKM
- Protection
- IP 67
- Output signal
- analog signal; IO-Link; (configurable)
- Measuring range
- -50...300 °C; -58...572 °F
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | IFM TP3233 Evaluation unit for PT100/PT1000 temperature sensors |
|---|---|
| Brand | IFM |
| Model | TP3233 |
| Category | Pressure, Flow & Temperature |
| Material | PA; PET |
| Connector | 1 x M12; coding: A; Contacts: 4, gold-plated; Moulded body: TPU (urethane); Locking: stainless steel (1.4404 / 316L); sealing: FKM |
| Protection | IP 67 |
| Output signal | analog signal; IO-Link; (configurable) |
| Measuring range | -50...300 °C; -58...572 °F |
| Operating voltage | 20...32 DC V |
| Communication interface | IO-Link |
