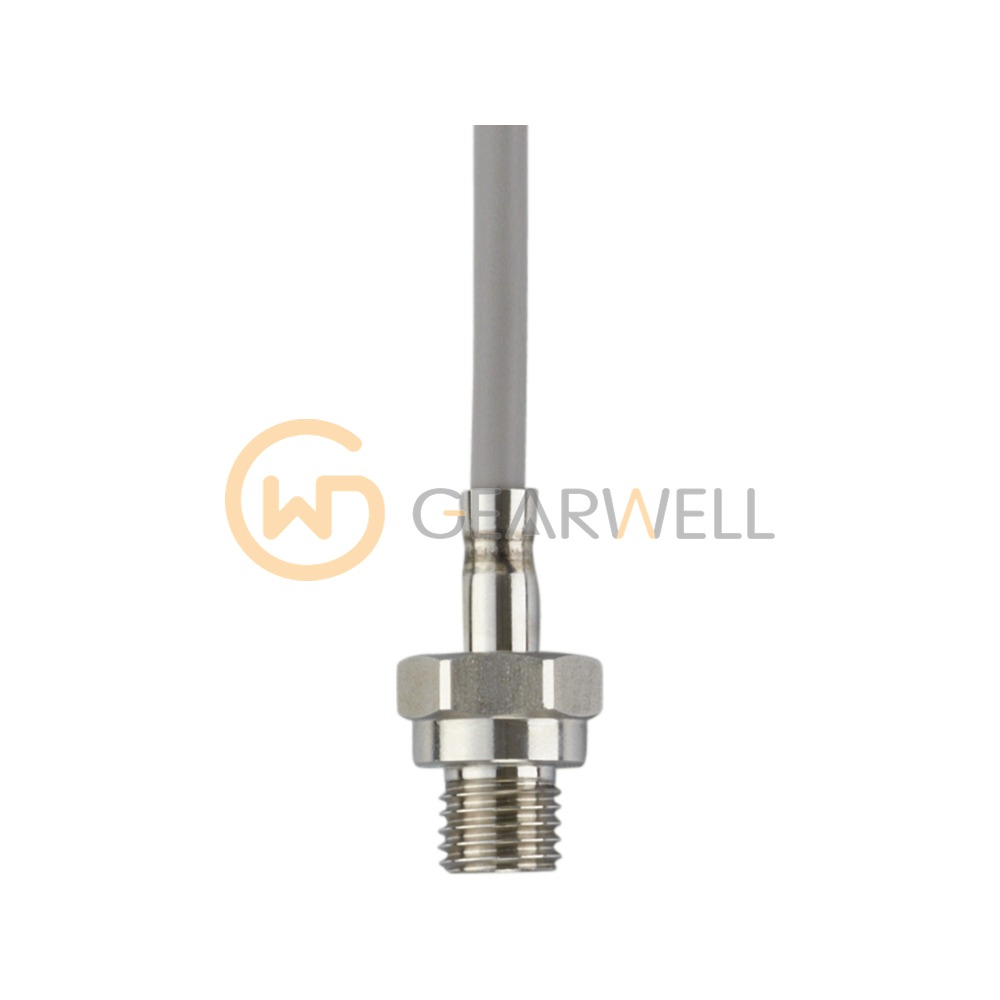

IFM TS5951 TS-500KLKM... Temperature cable sensor with screw-in sensor
- Brand
- IFM
- Model
- TS5951
- GEARWELL SKU
- GWP-000016785
- Category
- Pressure, Flow & Temperature
Key specifications
- Design
- screw-in sensor
- Material
- stainless steel (1.4301 / 304)
- Protection
- IP 67
- Measuring range
- -30...150 °C; -22...302 °F
- Pressure rating
- 500 bar
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | IFM TS5951 TS-500KLKM... Temperature cable sensor with screw-in sensor |
|---|---|
| Brand | IFM |
| Model | TS5951 |
| Category | Pressure, Flow & Temperature |
| Design | screw-in sensor |
| Material | stainless steel (1.4301 / 304) |
| Protection | IP 67 |
| Measuring range | -30...150 °C; -22...302 °F |
| Pressure rating | 500 bar |
| Measuring element | 1 x Pt 100; (to DIN EN 60751, class A) |
| Process connection | threaded connection M12 x 1,5 external thread |
