IFM TR2439 Temperature Sensor Evaluation Unit with Display
- Brand
- IFM
- Model
- TR2439
- GEARWELL SKU
- GWP-000002444
- Category
- Pressure, Flow & Temperature
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview

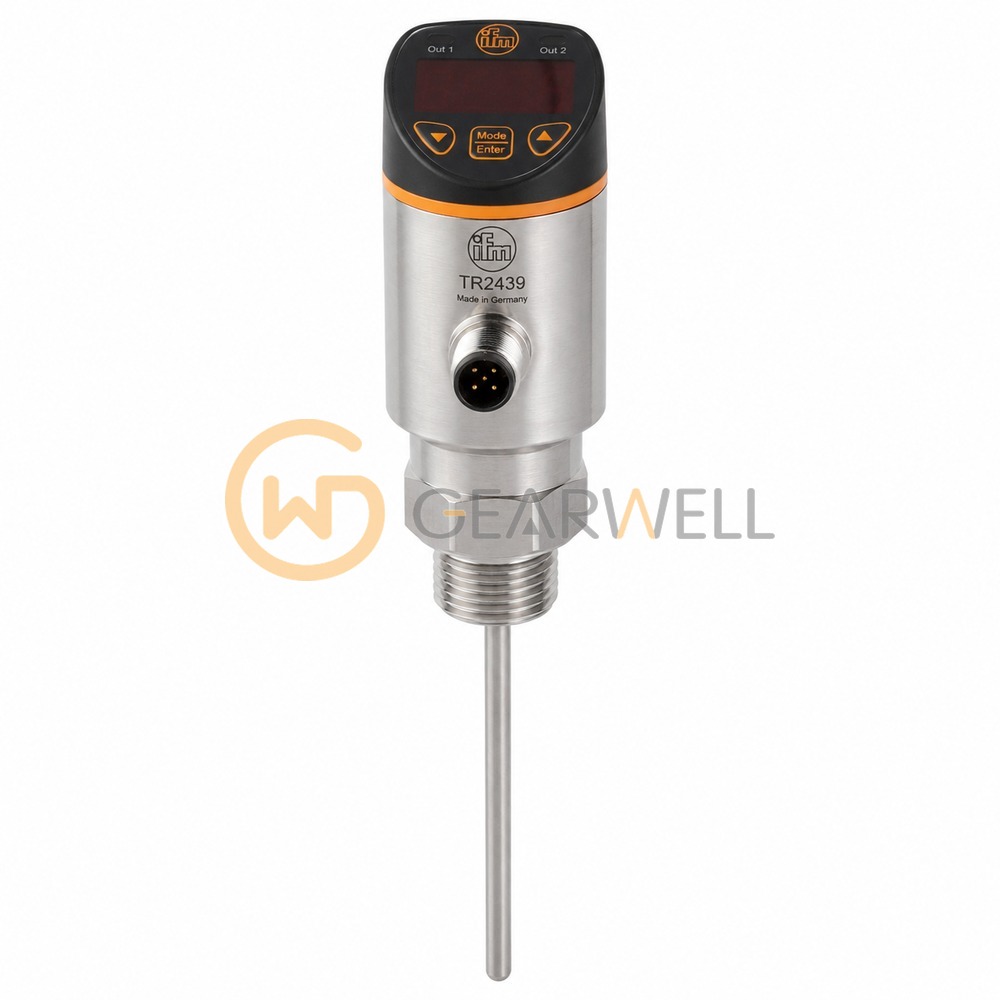

The ifm TR2439 (TR-000KDBM12-MFPKG/US) is an evaluation unit with display for Pt100 and Pt1000 temperature sensors, with a measuring range of -100…600 °C. The process connection is a G 1/2 external thread. It provides 1 switching output (PNP/NPN), 1 analog output (4…20 mA or 0…10 V) and IO-Link, with the switching output rated at 250 mA, runs on 18…32 V DC and connects through an M12 connector (A-coded, 4 gold-plated contacts). ifm specifies an analog output precision of ±(0.3 K + 0.1 % of the set measuring span). The unit is Ø 34 mm and 104 mm long and is rated IP67 for -25…80 °C ambient.
Technical reference
| Product name | IFM TR2439 Temperature Sensor Evaluation Unit with Display |
|---|---|
| Brand | IFM |
| Model | TR2439 |
| Category | Pressure, Flow & Temperature |
