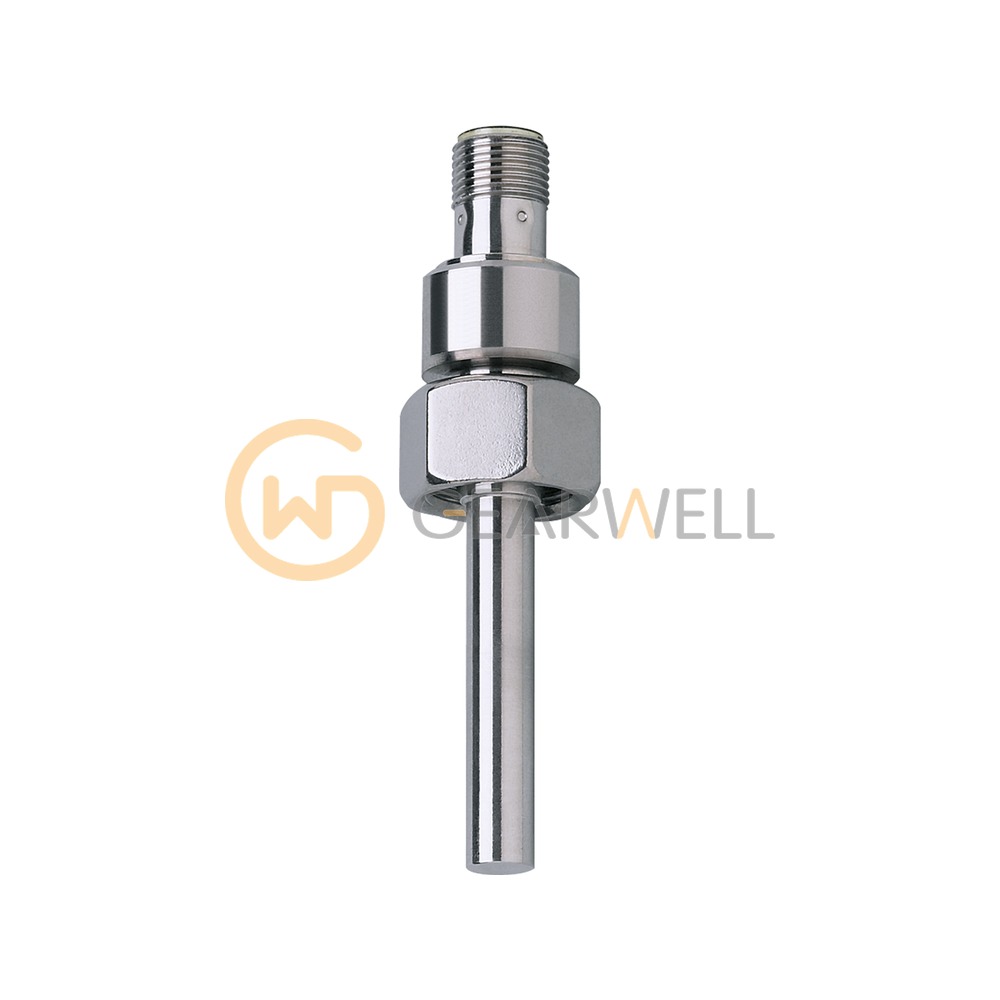

IFM TM9550 TM-045-BEM18 /US Temperature sensor with process connection
- Brand
- IFM
- Model
- TM9550
- GEARWELL SKU
- GWP-000016781
- Category
- Pressure, Flow & Temperature
Key specifications
- Material
- stainless steel (1.4404 / 316L)
- Probe diameter
- 8.2 mm
- Probe length L
- 44 mm
- Measuring range
- -40...125 °C; -40...257 °F
- Pressure rating
- 300 bar; 30 MPa
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | IFM TM9550 TM-045-BEM18 /US Temperature sensor with process connection |
|---|---|
| Brand | IFM |
| Model | TM9550 |
| Category | Pressure, Flow & Temperature |
| Material | stainless steel (1.4404 / 316L) |
| Probe diameter | 8.2 mm |
| Probe length L | 44 mm |
| Measuring range | -40...125 °C; -40...257 °F |
| Pressure rating | 300 bar; 30 MPa |
| Measuring element | 1 x Pt 1000; (to DIN EN 60751, class B) |
| Process connection | threaded connection M18 x 1,5 Internal thread |
| Installation length EL | 60 mm |
