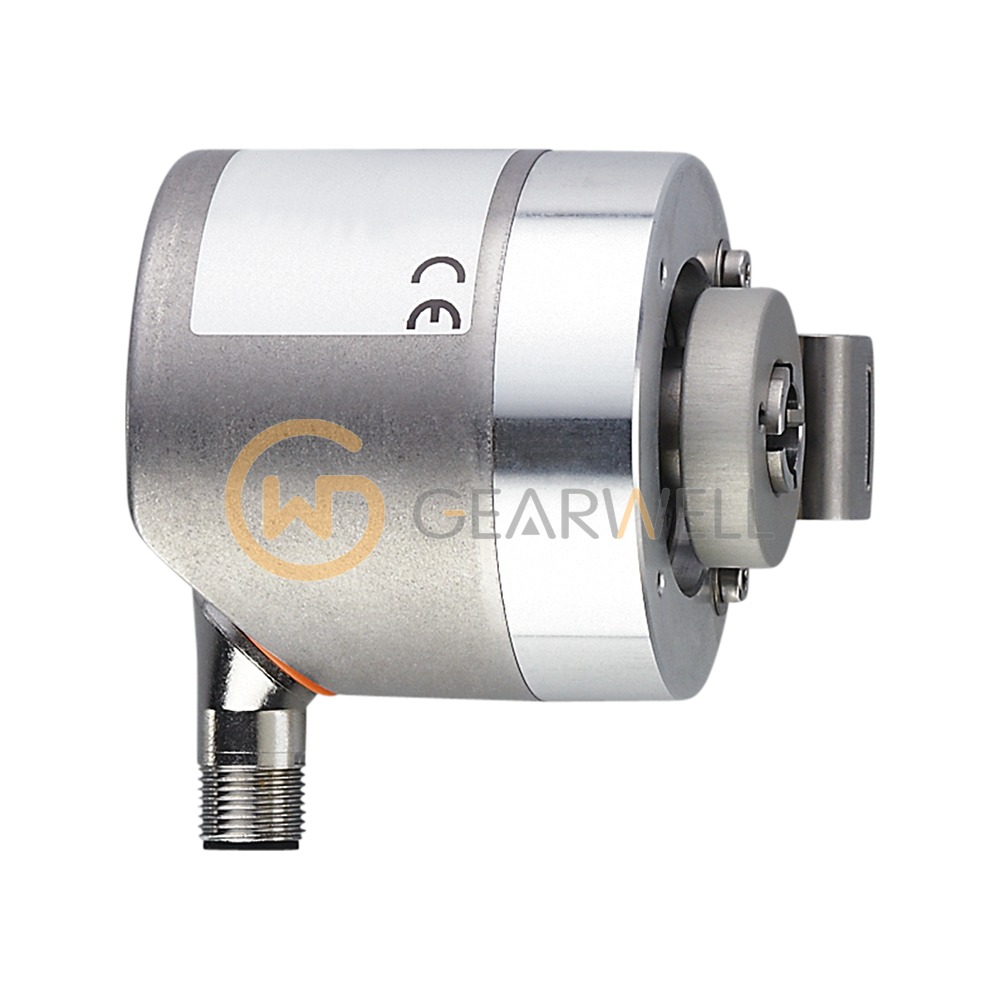

IFM RO3103 Incremental Encoder with Hollow Shaft
- Brand
- IFM
- Model
- RO3103
- GEARWELL SKU
- GWP-000009388
- Category
- Encoders & Position
Key specifications
- Housing
- cylindrical
- Dimensions
- Ø 58.5 / L = 69 mm
- Protection
- IP 65; IP 66 (on the housing: IP 67; on the shaft: IP 65)
- Electrical design
- HTL/TTL
- Operating voltage
- 4.75...30 DC V
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ifm RO3103 (INCREMENTAL ENCODER BASIC LINE) is an incremental encoder with a Ø 9.525 mm hollow shaft open on one side. Its resolution can be set from 1 to 10000 pulses (factory setting 1024) over IO-Link, the outputs are HTL or TTL (factory setting HTL), the A and B channels are 90° apart, and ifm gives an accuracy of 0.1° and up to 12000 rpm. The mechanical speed limit is 12000 rpm and the starting torque is 0.02 Nm; the shaft installation depth is 27 mm and it tolerates 0.5 mm axial shaft misalignment. It runs on 4.75…30 V DC, connects through an M12 connector (A-coded, 5 contacts), measures Ø 58.5 x 69 mm and is rated IP65 and IP66 for -40…85 °C ambient.
Technical reference
| Product name | IFM RO3103 Incremental Encoder with Hollow Shaft |
|---|---|
| Brand | IFM |
| Model | RO3103 |
| Category | Encoders & Position |
| Housing | cylindrical |
| Dimensions | Ø 58.5 / L = 69 mm |
| Protection | IP 65; IP 66 (on the housing: IP 67; on the shaft: IP 65) |
| Electrical design | HTL/TTL |
| Operating voltage | 4.75...30 DC V |
| Ambient temperature | -40...85 °C |
| Current consumption | < 150 mA |
| Communication interface | IO-Link |
