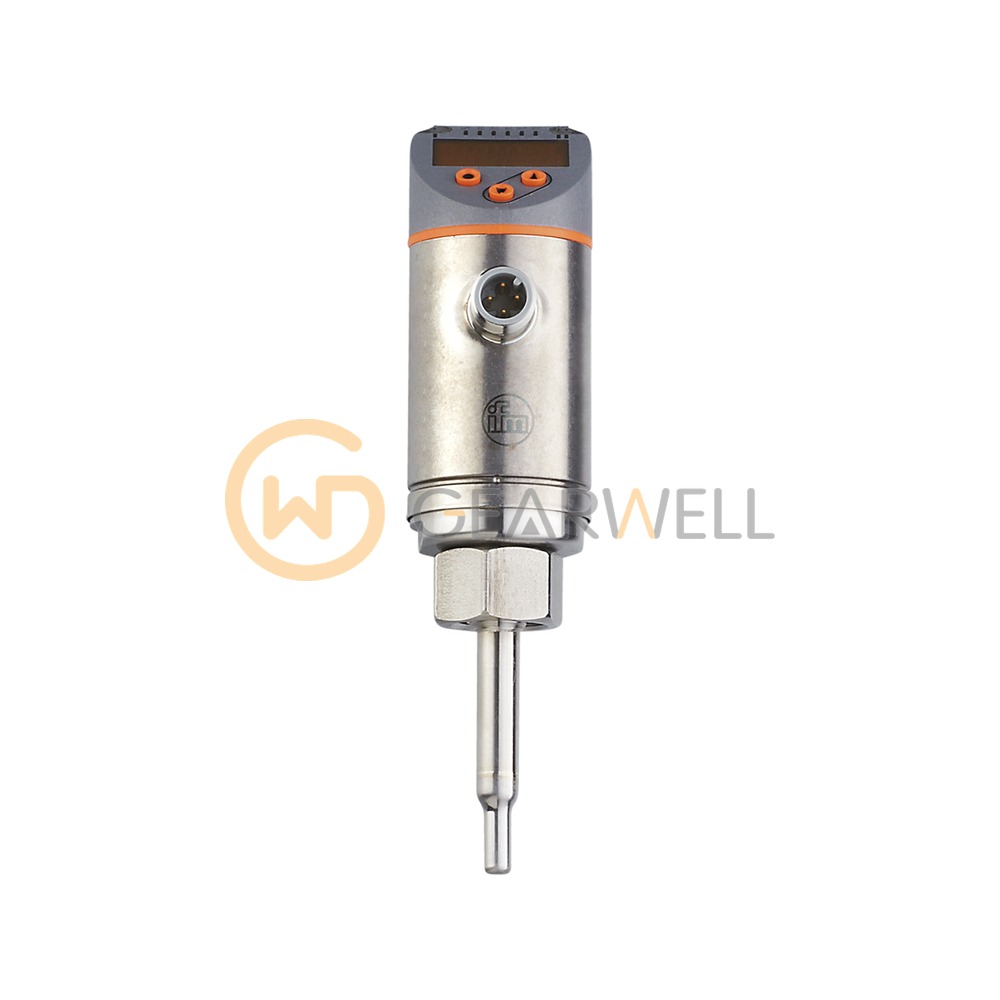

IFM SA5004 SAD10XDB50KG/US-100 Flow Sensor

Product overview

The ifm SA5004 (SAD10XDB50KG/US-100) is a flow sensor for water, glycol solutions, air and oils. Its setting range is 0.04…3 m/s and it also measures medium temperature over -20…90 °C. The probe is 45 mm long and 8 mm in diameter. The process connection is an M18 x 1.5 internal thread, the pressure rating is 100 bar, the wetted parts are stainless steel (1.4404 / 316L) and FKM gasket and the medium temperature range is -20…90 °C. It provides 2 analog outputs (4…20 mA), runs on 18…30 V DC and connects through an M12 connector (A-coded, 4 gold-plated contacts). The unit is Ø 34 mm and 142 mm long and is rated IP65 and IP67 for -40…80 °C ambient. It has UL approval under file E174189.
