IFM RM9006 Absolute Multiturn Encoder with Solid Shaft
- Brand
- IFM
- Model
- RM9006
- GEARWELL SKU
- GWP-000003726
- Category
- Encoders & Position
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview

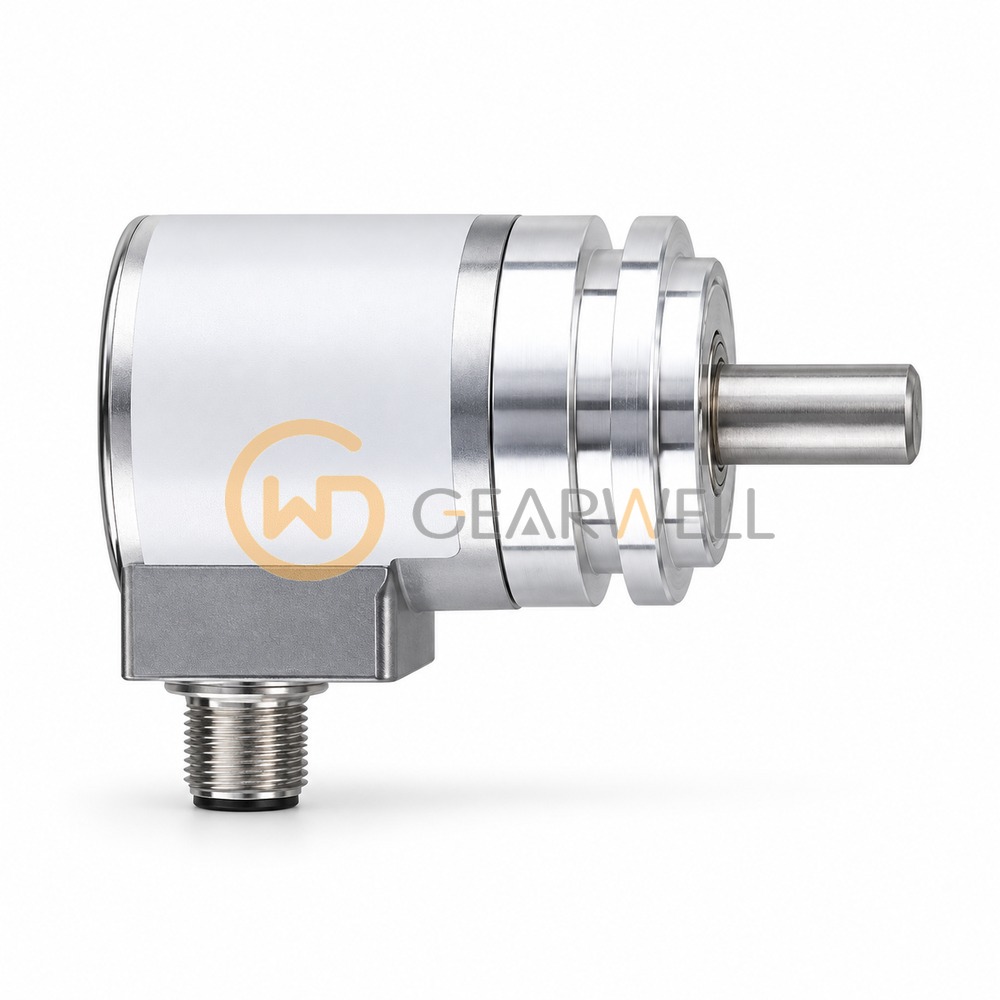

The ifm RM9006 (RMS0024-C24/UST) is an absolute multiturn encoder with a Ø 10 mm solid shaft and a synchro flange. It resolves 4096 steps per revolution over 4096 revolutions (24 bit) in binary code and communicates over CANopen; the factory setting is 125 kBit/s, node ID 32. ifm gives an accuracy of 0.08°. The mechanical speed limit is 6000 rpm, the starting torque is 0.05 Nm and the shaft takes 180 N axially and 180 N radially at the shaft end. It runs on 9…30 V DC, connects through an M12 connector (A-coded), measures Ø 36.8 x 76 mm and is rated IP68 and IP69K for -40…85 °C ambient.
Technical reference
| Product name | IFM RM9006 Absolute Multiturn Encoder with Solid Shaft |
|---|---|
| Brand | IFM |
| Model | RM9006 |
| Category | Encoders & Position |
