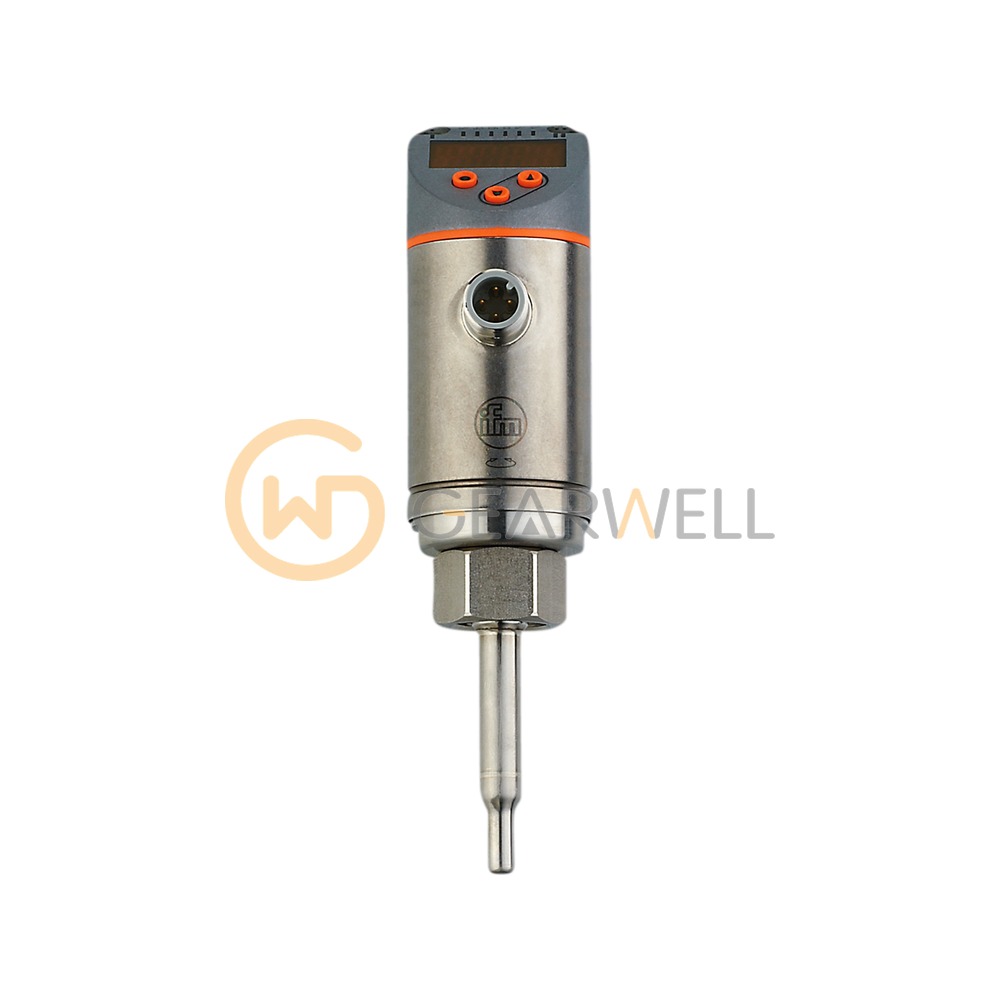

IFM SA5010 SAD10XDBFRKG/US-100 Flow Sensor
- Brand
- IFM
- Model
- SA5010
- GEARWELL SKU
- GWP-000009391
- Category
- Pressure, Flow & Temperature
Key specifications
- Measuring range
- -4...194 °F
- Output function
- normally open / normally closed (parameterisable)
- Electrical design
- PNP/NPN
- Operating voltage
- 18...30 DC V
- Current consumption
- < 100 mA
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ifm SA5010 (SAD10XDBFRKG/US-100) is a flow sensor for water, glycol solutions, air and oils. The probe is 45 mm long and 8 mm in diameter. The process connection is an M18 x 1.5 internal thread, the pressure rating is 100 bar, the wetted parts are stainless steel (1.4404 / 316L) and FKM gasket. It provides 2 switching outputs (PNP/NPN), 1 analog output (4…20 mA), frequency output and IO-Link, with the switching outputs configurable as normally open or normally closed and rated at 250 mA each, runs on 18…30 V DC and connects through an M12 connector (A-coded, 4 gold-plated contacts). The unit is Ø 34 mm and 142 mm long and is rated IP65 and IP67. It has UL approval under file E174189.
Technical reference
| Product name | IFM SA5010 SAD10XDBFRKG/US-100 Flow Sensor |
|---|---|
| Brand | IFM |
| Model | SA5010 |
| Category | Pressure, Flow & Temperature |
| Measuring range | -4...194 °F |
| Output function | normally open / normally closed (parameterisable) |
| Electrical design | PNP/NPN |
| Operating voltage | 18...30 DC V |
| Current consumption | < 100 mA |
| Communication interface | IO-Link |
| Number of digital outputs | 2 |
| Number of analogue outputs | 1 |
