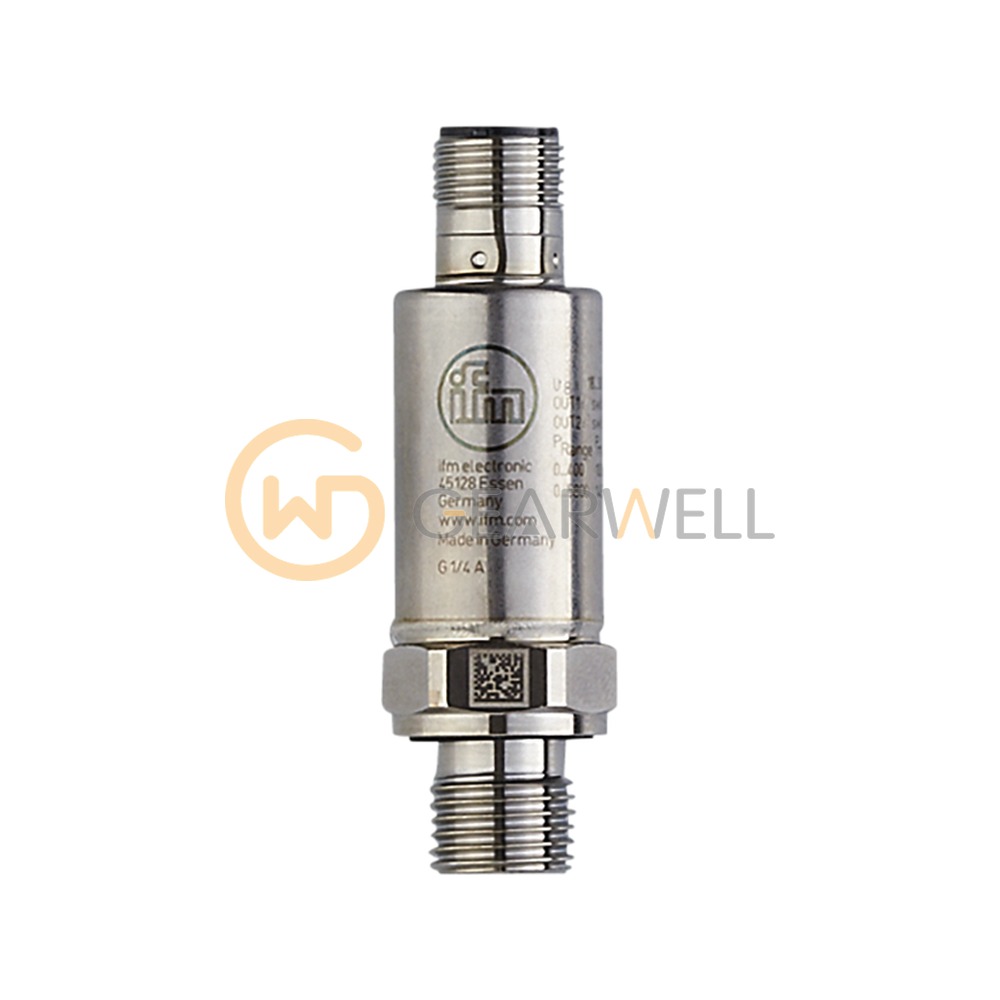

IFM PV7001 PV-250-SEG14-UFRVG/US/ / Pressure switch with IO-Link
- Brand
- IFM
- Model
- PV7001
- GEARWELL SKU
- GWP-000012475
- Category
- Pressure, Flow & Temperature
Key specifications
- Output signal
- switching signal; IO-Link; (configurable)
- Output function
- normally open / closed; (configurable)
- Electrical design
- PNP/NPN
- Operating voltage
- 18...30 DC V
- Process connection
- threaded connection G 1/4 external thread (DIN EN ISO 1179-2); Internal thread:M5
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ifm PV7001 (PV-250-SEG14-UFRVG/US/ /) is a pressure switch with IO-Link for liquids and gases. It measures relative pressure over 0…250 bar (0…3626 psi), with a pressure rating of 625 bar and a minimum burst pressure of 1200 bar. The process connection is a G 1/4 external thread (DIN EN ISO 1179-2) with M5 internal thread, the wetted parts are stainless steel (1.4305 / 303 and 630/1.4542/17-4 PH), and the permitted medium temperature is -40…90 °C. It provides 2 switching outputs (PNP/NPN) and IO-Link, runs on 18…30 V DC and connects through an M12 connector (A-coded, 4 contacts). ifm specifies characteristic deviation < ± 0.5 % of span and repeatability < ± 0.05 % of span. The sensor is rated IP67 and IP69K for -40…90 °C ambient.
Technical reference
| Product name | IFM PV7001 PV-250-SEG14-UFRVG/US/ / Pressure switch with IO-Link |
|---|---|
| Brand | IFM |
| Model | PV7001 |
| Category | Pressure, Flow & Temperature |
| Output signal | switching signal; IO-Link; (configurable) |
| Output function | normally open / closed; (configurable) |
| Electrical design | PNP/NPN |
| Operating voltage | 18...30 DC V |
| Process connection | threaded connection G 1/4 external thread (DIN EN ISO 1179-2); Internal thread:M5 |
| Current consumption | < 15 mA |
| Switching frequency DC | < 170 Hz |
| Number of inputs and outputs | Number of digital outputs: 2 |
