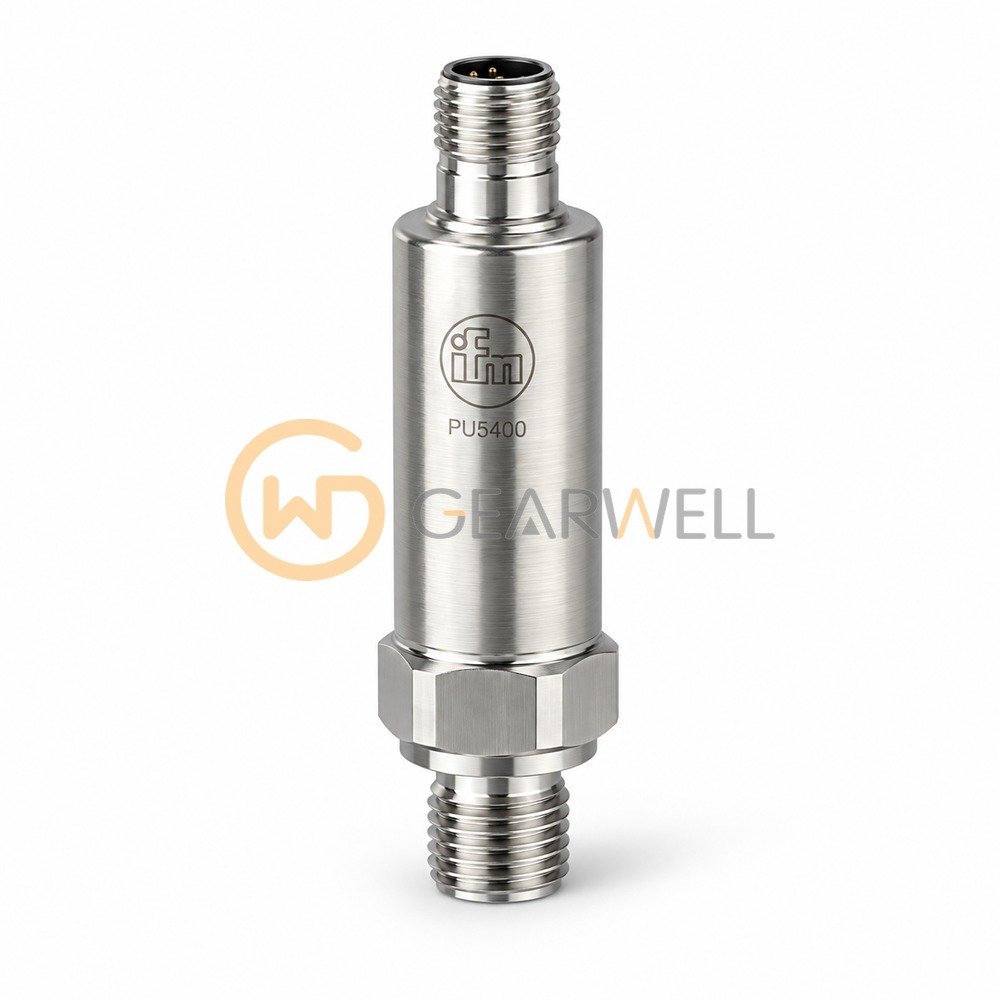

IFM PU5400 Pressure Transmitter
- Brand
- IFM
- Model
- PU5400
- GEARWELL SKU
- GWP-000004439
- Category
- Pressure, Flow & Temperature
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ifm PU5400 (PU-400-SEG14-B-DVG/US/ /W) is a pressure transmitter for liquids and gases. It measures relative pressure over 0…400 bar (0…5800 psi), with a pressure rating of 1000 bar and a minimum burst pressure of 1700 bar. The process connection is a G 1/4 external thread (DIN EN ISO 1179-2), the wetted parts are stainless steel (630/1.4542/17-4 PH), and the permitted medium temperature is -40…90 °C. It provides 1 analog output (0…10 V), runs on 16…36 V DC and connects through an M12 connector (A-coded, 3 contacts). ifm specifies characteristic deviation < ± 0.5 % of span and repeatability < ± 0.05 % of span. The sensor is rated IP67 and IP69K for -40…90 °C ambient.
Technical reference
| Product name | IFM PU5400 Pressure Transmitter |
|---|---|
| Brand | IFM |
| Model | PU5400 |
| Category | Pressure, Flow & Temperature |
