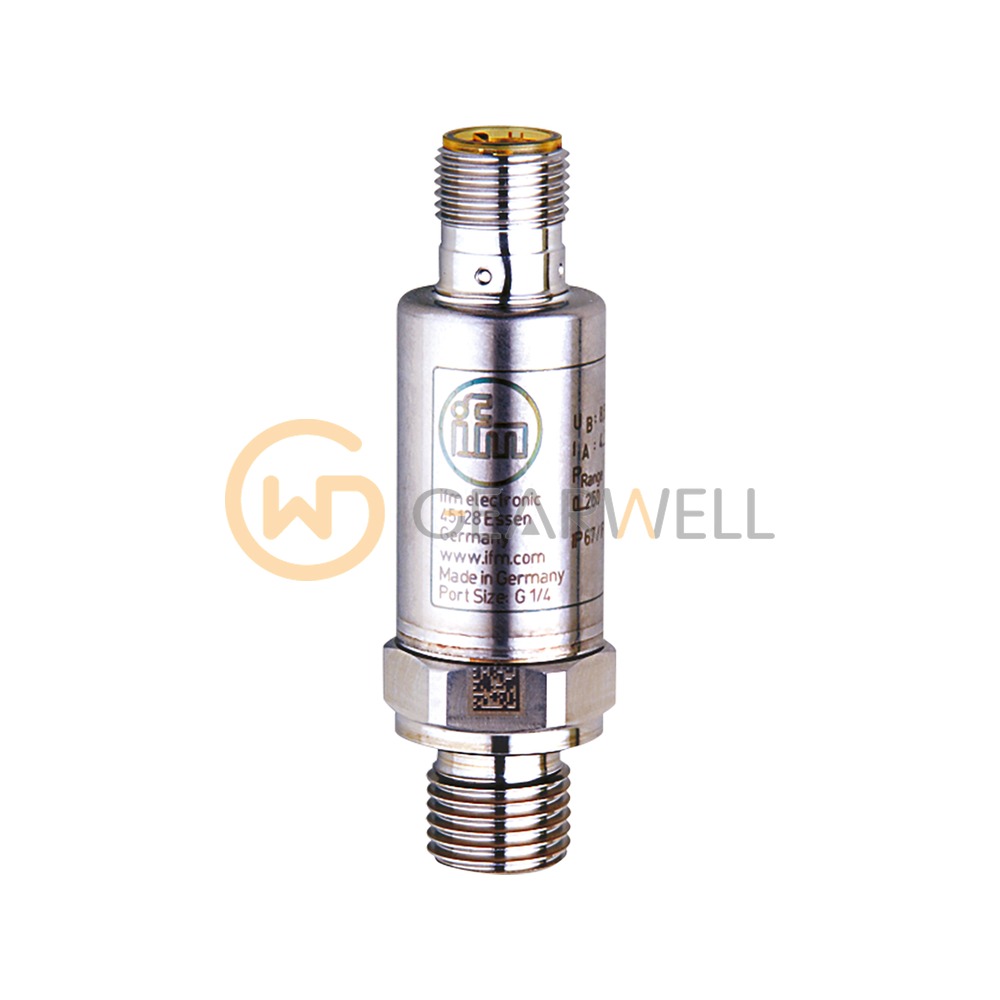

IFM PU5403 PU-025-SEG14-B-DVG/US/ /W Pressure transmitter
- Brand
- IFM
- Model
- PU5403
- GEARWELL SKU
- GWP-000012474
- Category
- Pressure, Flow & Temperature
Key specifications
- Protection
- IP 67; IP 69K
- Output signal
- analog signal
- Operating voltage
- 16...36 DC V
- Medium temperature
- -40...90 °C
- Process connection
- threaded connection G 1/4 external thread (DIN EN ISO 1179-2)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ifm PU5403 (PU-025-SEG14-B-DVG/US/ /W) is a pressure transmitter for liquids and gases. It measures relative pressure over 0…25 bar (0…360 psi), with a pressure rating of 65 bar and a minimum burst pressure of 600 bar. The process connection is a G 1/4 external thread (DIN EN ISO 1179-2), the wetted parts are stainless steel (630/1.4542/17-4 PH), and the permitted medium temperature is -40…90 °C. It provides 1 analog output (0…10 V), runs on 16…36 V DC and connects through an M12 connector (A-coded, 3 contacts). ifm specifies characteristic deviation < ± 0.5 % of span and repeatability < ± 0.05 % of span. The sensor is rated IP67 and IP69K for -40…90 °C ambient.
Technical reference
| Product name | IFM PU5403 PU-025-SEG14-B-DVG/US/ /W Pressure transmitter |
|---|---|
| Brand | IFM |
| Model | PU5403 |
| Category | Pressure, Flow & Temperature |
| Protection | IP 67; IP 69K |
| Output signal | analog signal |
| Operating voltage | 16...36 DC V |
| Medium temperature | -40...90 °C |
| Process connection | threaded connection G 1/4 external thread (DIN EN ISO 1179-2) |
| Ambient temperature | -40...90 °C |
| Current consumption | < 12 mA |
| Number of inputs and outputs | Number of analog outputs: 1 |
