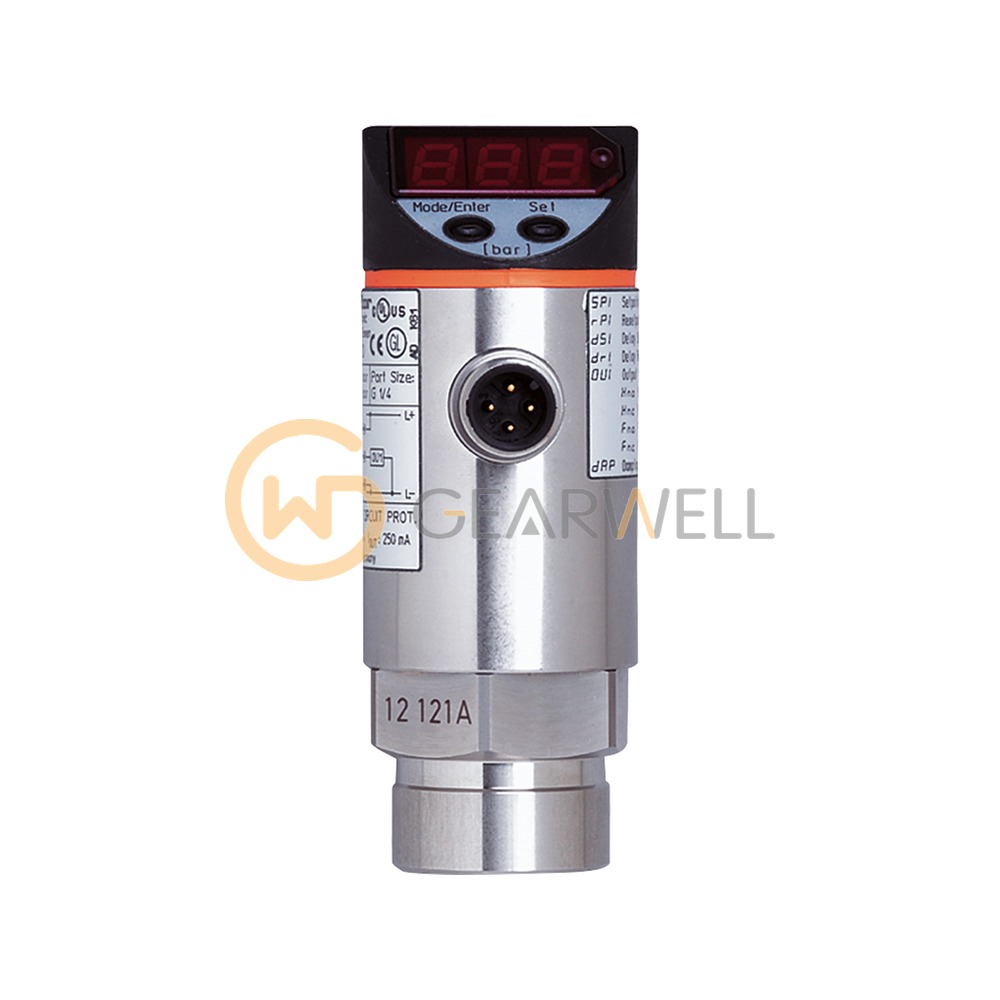

IFM PN7300 PN-400-SBU76-QFRKG/US/ /V Pressure Sensor with Display
- Brand
- IFM
- Model
- PN7300
- GEARWELL SKU
- GWP-000008423
- Category
- Pressure, Flow & Temperature
Key specifications
- Dimensions
- Ø 34 / L = 91.5 mm
- Output function
- normally open / normally closed (parameterisable)
- Electrical design
- PNP/NPN
- Operating voltage
- 18...36 DC (to SELV/PELV) V
- Current consumption
- < 50 mA
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | IFM PN7300 PN-400-SBU76-QFRKG/US/ /V Pressure Sensor with Display |
|---|---|
| Brand | IFM |
| Model | PN7300 |
| Category | Pressure, Flow & Temperature |
| Dimensions | Ø 34 / L = 91.5 mm |
| Output function | normally open / normally closed (parameterisable) |
| Electrical design | PNP/NPN |
| Operating voltage | 18...36 DC (to SELV/PELV) V |
| Current consumption | < 50 mA |
| Switching frequency DC | < 170 Hz |
| Communication interface | IO-Link |
| Number of digital outputs | 2 |
