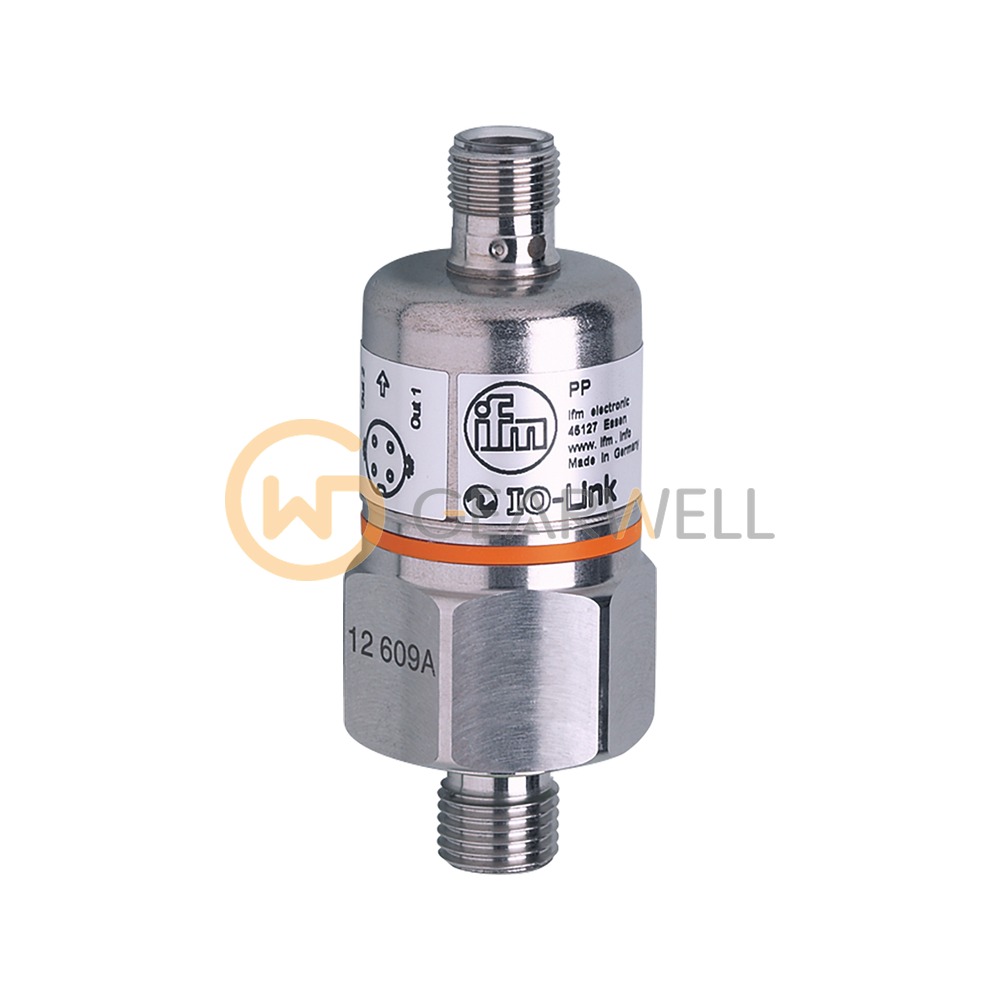

IFM PP004E Pressure Switch with Ceramic Measuring Cell
- Brand
- IFM
- Model
- PP004E
- GEARWELL SKU
- GWP-000008424
- Category
- Pressure, Flow & Temperature
Key specifications
- Dimensions
- Ø 30 / L = 79.5 mm
- Output function
- normally open / normally closed (parameterisable)
- Electrical design
- PNP
- Operating voltage
- 9.6...36 DC (communication mode: 18...32) V
- Current consumption
- < 45 mA
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | IFM PP004E Pressure Switch with Ceramic Measuring Cell |
|---|---|
| Brand | IFM |
| Model | PP004E |
| Category | Pressure, Flow & Temperature |
| Dimensions | Ø 30 / L = 79.5 mm |
| Output function | normally open / normally closed (parameterisable) |
| Electrical design | PNP |
| Operating voltage | 9.6...36 DC (communication mode: 18...32) V |
| Current consumption | < 45 mA |
| Switching frequency DC | 170 Hz |
| Communication interface | IO-Link |
| Number of digital outputs | 2 |
