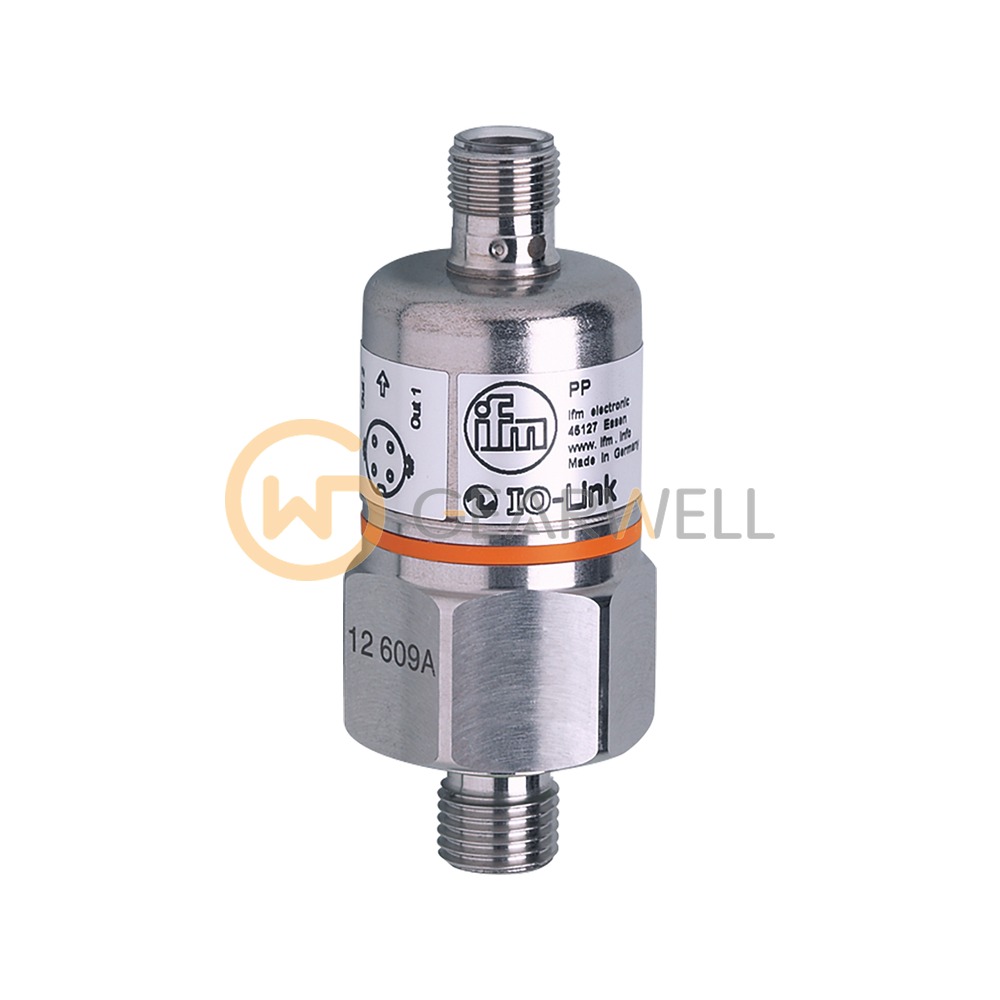

IFM PP7552 Pressure switch with ceramic measuring cell
- Brand
- IFM
- Model
- PP7552
- GEARWELL SKU
- GWP-000012473
- Category
- Pressure, Flow & Temperature
Key specifications
- Output signal
- switching signal; IO-Link; (configurable)
- Output function
- normally open / closed; (configurable)
- Electrical design
- PNP
- Operating voltage
- 9.6...36 DC; (communication mode: 18...32) V
- Process connection
- threaded connection G 1/4 external thread Internal thread:M5
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ifm PP7552 (PP-100-SBG14-QFPKG/US/ /V) is a pressure switch with ceramic measuring cell for liquids and gases. It measures relative pressure over 0…100 bar (0…1450 psi), with a pressure rating of 300 bar and a minimum burst pressure of 650 bar. The process connection is a G 1/4 external thread with M5 internal thread, the wetted parts are stainless steel (1.4305 / 303), ceramics and FKM, and the permitted medium temperature is -25…90 °C. It provides 2 switching outputs (PNP) and IO-Link, runs on 9.6…36 V DC and connects through an M12 connector (A-coded, 4 contacts). ifm specifies characteristic deviation < ± 0.25 % of span and repeatability < ± 0.1 % of span. The sensor is rated IP68 for -25…85 °C ambient.
Technical reference
| Product name | IFM PP7552 Pressure switch with ceramic measuring cell |
|---|---|
| Brand | IFM |
| Model | PP7552 |
| Category | Pressure, Flow & Temperature |
| Output signal | switching signal; IO-Link; (configurable) |
| Output function | normally open / closed; (configurable) |
| Electrical design | PNP |
| Operating voltage | 9.6...36 DC; (communication mode: 18...32) V |
| Process connection | threaded connection G 1/4 external thread Internal thread:M5 |
| Current consumption | < 45 mA |
| Switching frequency DC | 170 Hz |
| Number of inputs and outputs | Number of digital outputs: 2 |
