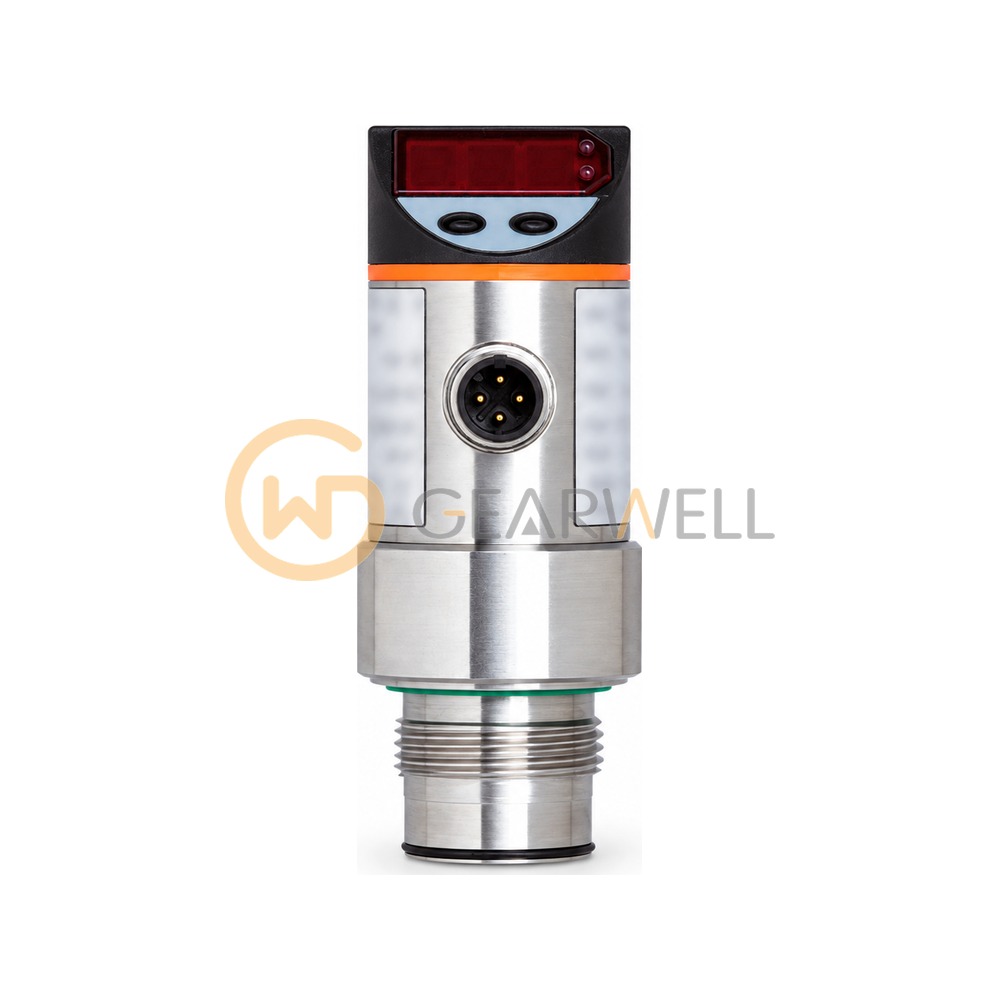

IFM PF2954 PF flush pressure sensors Flush pressure sensor
- Brand
- IFM
- Model
- PF2954
- GEARWELL SKU
- GWP-000014279
- Category
- Pressure, Flow & Temperature
Key specifications
- Output signal
- switching signal; analog signal; (configurable)
- Measuring range
- -0.5...10 bar / -7...145 psi / -50...1000 kPa / -0.05...1 MPa
- Output function
- normally open / closed; (configurable)
- Electrical design
- PNP/NPN
- Operating voltage
- 20...30 DC V
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ifm PF2954 (PF-010-REB34-MFRKG/US/ /P) is a flush pressure sensor for liquids and gases, including viscous media and liquids with suspended particles. It measures relative pressure over -0.5…10 bar (-7…145 psi), with a pressure rating of 50 bar and a minimum burst pressure of 150 bar. The process connection is a G 3/4 external thread, the wetted parts are stainless steel (1.4435 / 316L), ceramics (99.9 % Al2O3), FKM and PTFE, and the permitted medium temperature is -25…80 °C. It provides 2 switching outputs (PNP/NPN) and 1 analog output (4…20 mA or 0…10 V), runs on 20…30 V DC and connects through an M12 connector (A-coded, 4 gold-plated contacts). ifm specifies characteristic deviation < ± 0.6 % of span and repeatability < ± 0.1 % of span. The sensor is rated IP67 for -25…80 °C ambient.
Technical reference
| Product name | IFM PF2954 PF flush pressure sensors Flush pressure sensor |
|---|---|
| Brand | IFM |
| Model | PF2954 |
| Category | Pressure, Flow & Temperature |
| Output signal | switching signal; analog signal; (configurable) |
| Measuring range | -0.5...10 bar / -7...145 psi / -50...1000 kPa / -0.05...1 MPa |
| Output function | normally open / closed; (configurable) |
| Electrical design | PNP/NPN |
| Operating voltage | 20...30 DC V |
| Analog current output | 4...20; (scalable 1:4) mA |
| Analog voltage output | 0...10; (scalable 1:4) V |
| Number of digital outputs | 2 |
