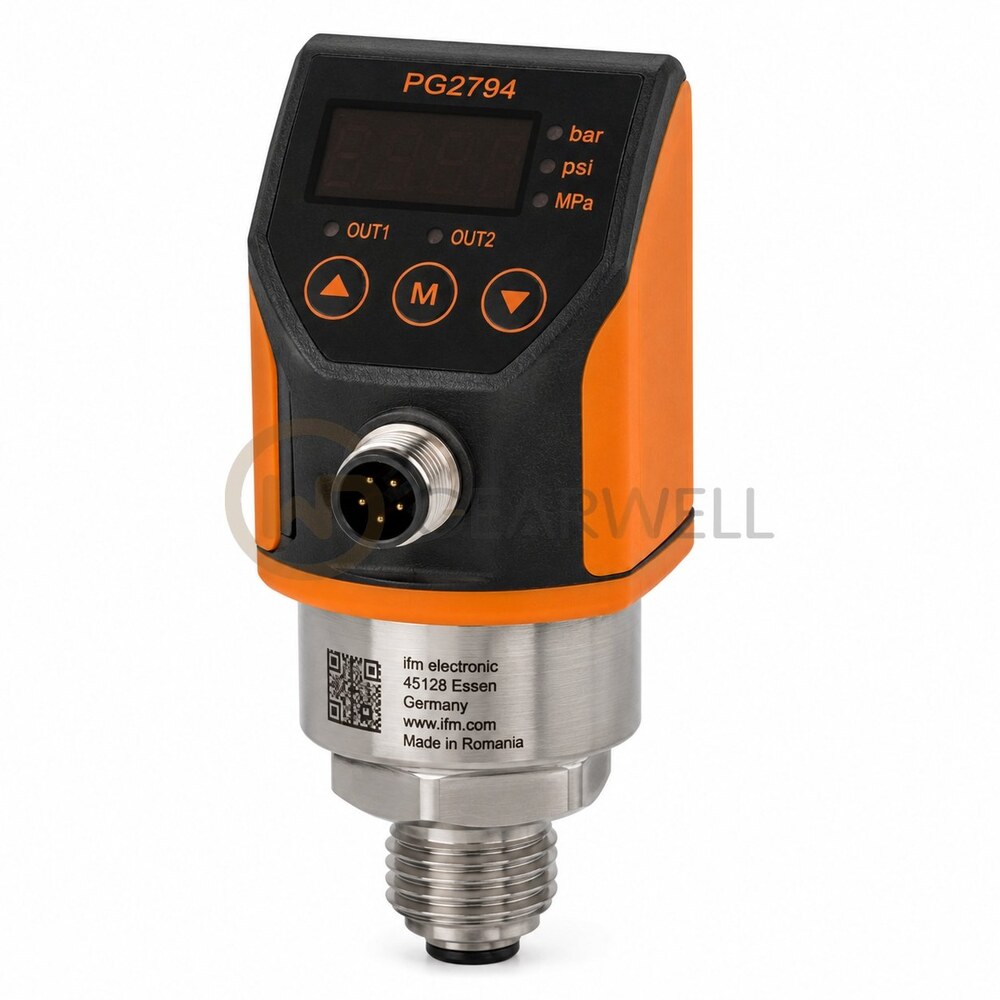

IFM PG2794 Flush Pressure Sensor with Analogue Display
- Brand
- IFM
- Model
- PG2794
- GEARWELL SKU
- GWP-000000461
- Category
- Industrial Automation Parts
Key specifications
- Outputs
- 1 digital and 1 analogue output
- Application
- Flush mounting for food and beverage applications
- Product type
- Flush pressure sensor with analogue display
- Output options
- NO/NC; 4–20 mA or 0–10 V
- Measurement range
- -1 to 10 bar
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ifm PG2794 (PG-010-REA01-MFRKG/US/ /P) is a flush pressure sensor with analog display for liquids and gases, including viscous media and liquids with suspended particles. It measures relative pressure and vacuum over -1…10 bar (-14.5…145 psi), with a pressure rating of 50 bar and a minimum burst pressure of 150 bar. The process connection is a G 1 external thread with Aseptoflex Vario sealing contour, the wetted parts are stainless steel (1.4435 / 316L), ceramics (99.9 % Al2O3) and PTFE, and the permitted medium temperature is -25…125 °C. It provides 1 switching output (PNP/NPN) and 1 analog output (4…20 mA), runs on 18…32 V DC and connects through an M12 connector (A-coded, 4 gold-plated contacts). ifm specifies characteristic deviation < ± 0.2 % of span and repeatability < ± 0.1 % of span. The sensor is rated IP67 and IP69K for -25…80 °C ambient.
Technical reference
| Product name | IFM PG2794 Flush Pressure Sensor with Analogue Display |
|---|---|
| Brand | IFM |
| Model | PG2794 |
| Category | Industrial Automation Parts |
| Outputs | 1 digital and 1 analogue output |
| Application | Flush mounting for food and beverage applications |
| Product type | Flush pressure sensor with analogue display |
| Output options | NO/NC; 4–20 mA or 0–10 V |
| Measurement range | -1 to 10 bar |
| Operating voltage | 18–32 V DC |
| Medium temperature | -25 to +125 °C; 145 °C max. 1 h |
| Process connection | G1 external thread, Aseptoflex Vario |
