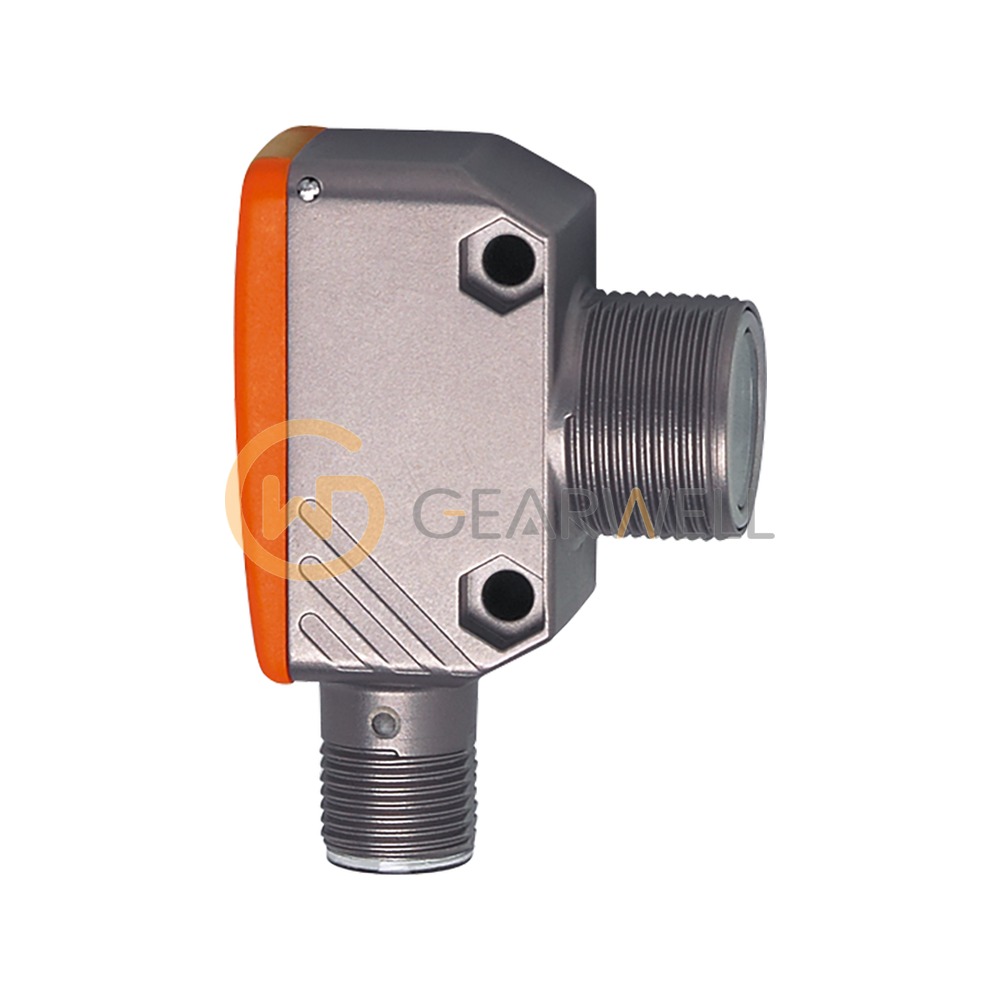

IFM OGP281 OGP-HPKG/US/CUBE Retro-reflective sensor
- Brand
- IFM
- Model
- OGP281
- GEARWELL SKU
- GWP-000012465
- Category
- Proximity & Photoelectric Sensors
Key specifications
- Housing
- rectangular with M18 thread
- Protection
- IP 65; IP 67
- Type of light
- red light
- Output function
- light-on mode
- Electrical design
- PNP
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ifm OGP281 (OGP-HPKG/US/CUBE) is a retro-reflective sensor in a rectangular housing with M18 x 1 thread, measuring 52.6 x 19 x 36 mm. ifm specifies a range of 0.1…4 m with prismatic reflector Ø 80 E20005. It works with red light (662 nm) and has a polarization filter. The light spot is at most 160 mm in diameter at maximum range. It has 1 PNP switching output and IO-Link. The switching output works in light-on mode, switches at up to 1000 Hz and carries up to 200 mA. It runs on 10…30 V DC and connects through an M12 connector (A-coded, 4 contacts). It has a diecast zinc housing and a PMMA front lens and is rated IP65 and IP67 for -25…60 °C ambient.
Technical reference
| Product name | IFM OGP281 OGP-HPKG/US/CUBE Retro-reflective sensor |
|---|---|
| Brand | IFM |
| Model | OGP281 |
| Category | Proximity & Photoelectric Sensors |
| Housing | rectangular with M18 thread |
| Protection | IP 65; IP 67 |
| Type of light | red light |
| Output function | light-on mode |
| Electrical design | PNP |
| Operating voltage | 10...30 DC; (cULus - Class 2 source required) V |
| Current consumption | 21 mA |
| Switching frequency DC | 1000 Hz |
