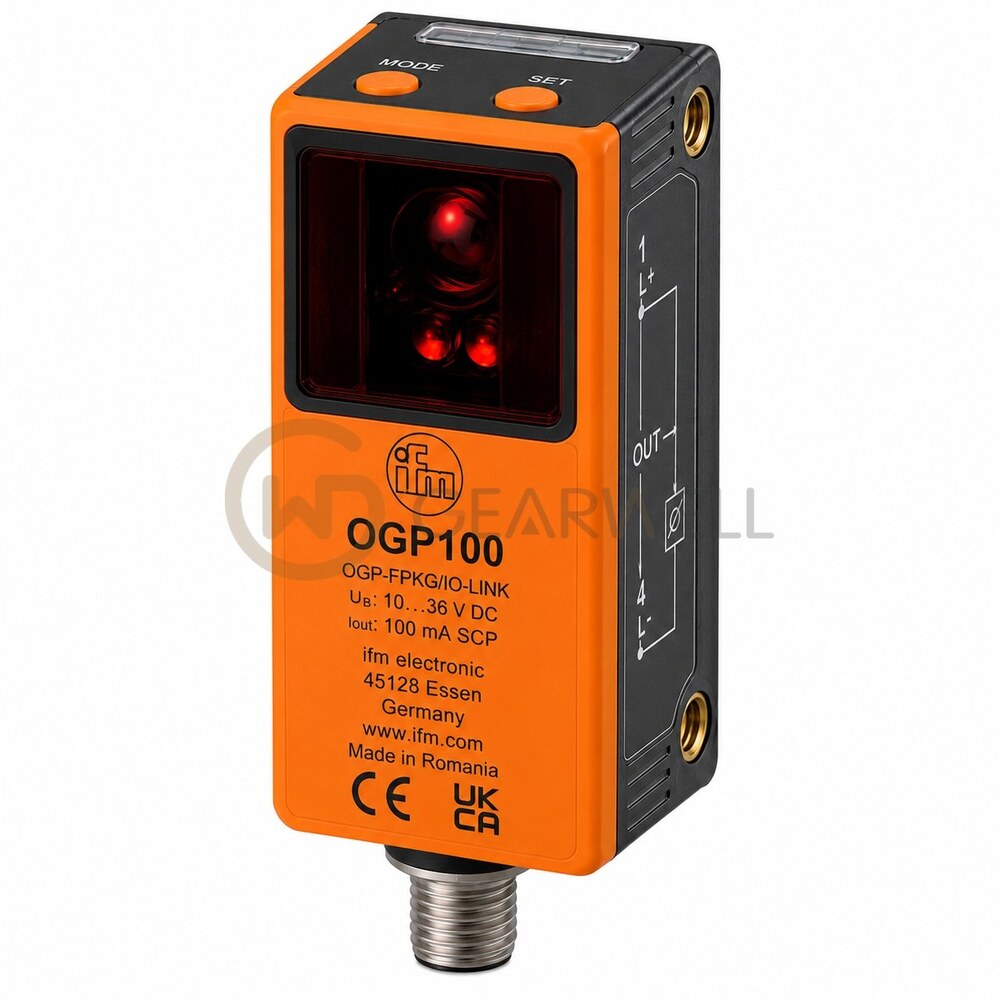

IFM OGP100 Retro-Reflective Sensor
- Brand
- IFM
- Model
- OGP100
- GEARWELL SKU
- GWP-000003306
- Category
- Industrial Automation Parts
Key specifications
- Dimensions
- M18 x 1 / L = 44 mm
- Protection
- IP 67; (in conjunction with a corresponding connector)
- Product type
- Retro-reflective sensor
- Output function
- dark-on mode
- Electrical design
- PNP
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ifm OGP100 (OGP-DPKG/US) is a retro-reflective sensor in an M18 x 1 threaded housing 44 mm long. ifm specifies a range of 0.05…2.5 m with prismatic reflector Ø 80 E20005. It works with red light (645 nm) and has a polarization filter. The light spot is at most 200 mm in diameter at maximum range. It has 1 PNP switching output. The switching output works in dark-on mode, switches at up to 1000 Hz and carries up to 200 mA. It runs on 10…30 V DC and connects through an M12 connector (A-coded, 4 contacts). It has an ABS housing and a PMMA front lens and is rated IP67 for -25…60 °C ambient.
Technical reference
| Product name | IFM OGP100 Retro-Reflective Sensor |
|---|---|
| Brand | IFM |
| Model | OGP100 |
| Category | Industrial Automation Parts |
| Dimensions | M18 x 1 / L = 44 mm |
| Protection | IP 67; (in conjunction with a corresponding connector) |
| Product type | Retro-reflective sensor |
| Output function | dark-on mode |
| Electrical design | PNP |
| Operating voltage | 10...30 V DC |
| Ambient temperature | -25...60 °C |
| Current consumption | 20 mA |
