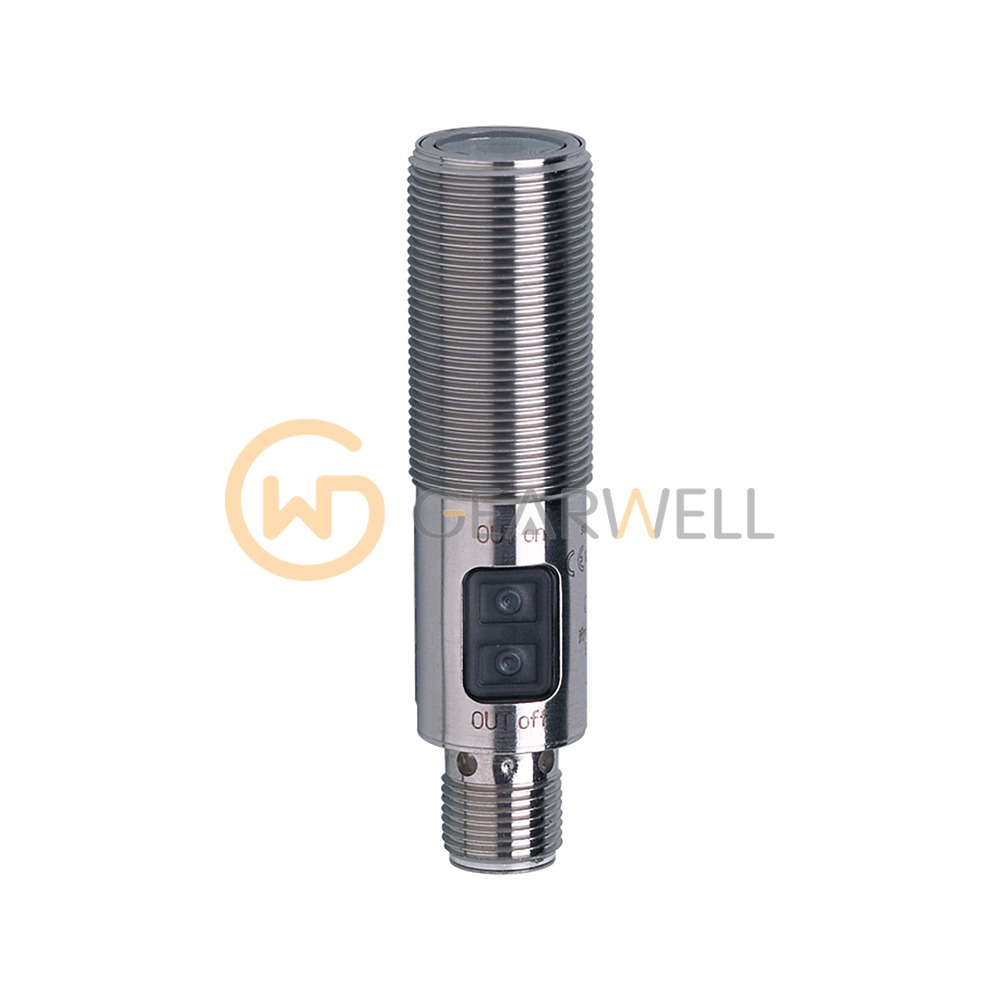

IFM OGH700 OGHLFPKG/US100 Laser Diffuse Reflection Sensor
- Brand
- IFM
- Model
- OGH700
- GEARWELL SKU
- GWP-000008414
- Category
- Proximity & Photoelectric Sensors
Key specifications
- Range
- 20...200 (white paper 200 x 200 mm 90% remission) mm
- Dimensions
- M18 x 1 / L = 72 mm
- Protection
- IP 65; IP 67
- Output function
- light-on/dark-on mode (programmable)
- Electrical design
- PNP
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ifm OGH700 (OGHLFPKG/US100) is a laser diffuse reflection sensor in an M18 x 1 threaded housing 72 mm long. ifm specifies a range of 20…200 mm on white paper 200 x 200 mm with 90 % remission; on grey (18 % remission) it is 20…100 mm and on black (6 % remission) 20…70 mm. It works with red light (655 nm), is laser protection class 1 and has background suppression. It has 1 PNP switching output. The switching output is programmable for light-on or dark-on mode, switches at up to 1000 Hz and carries up to 200 mA. It runs on 10…36 V DC and connects through an M12 connector (A-coded, 4 contacts). It has a PMMA front lens and is rated IP65 and IP67 for -10…60 °C ambient.
Technical reference
| Product name | IFM OGH700 OGHLFPKG/US100 Laser Diffuse Reflection Sensor |
|---|---|
| Brand | IFM |
| Model | OGH700 |
| Category | Proximity & Photoelectric Sensors |
| Range | 20...200 (white paper 200 x 200 mm 90% remission) mm |
| Dimensions | M18 x 1 / L = 72 mm |
| Protection | IP 65; IP 67 |
| Output function | light-on/dark-on mode (programmable) |
| Electrical design | PNP |
| Operating voltage | 10...36 DC V |
| Current consumption | 15 mA |
| Switching frequency DC | 1000 Hz |
