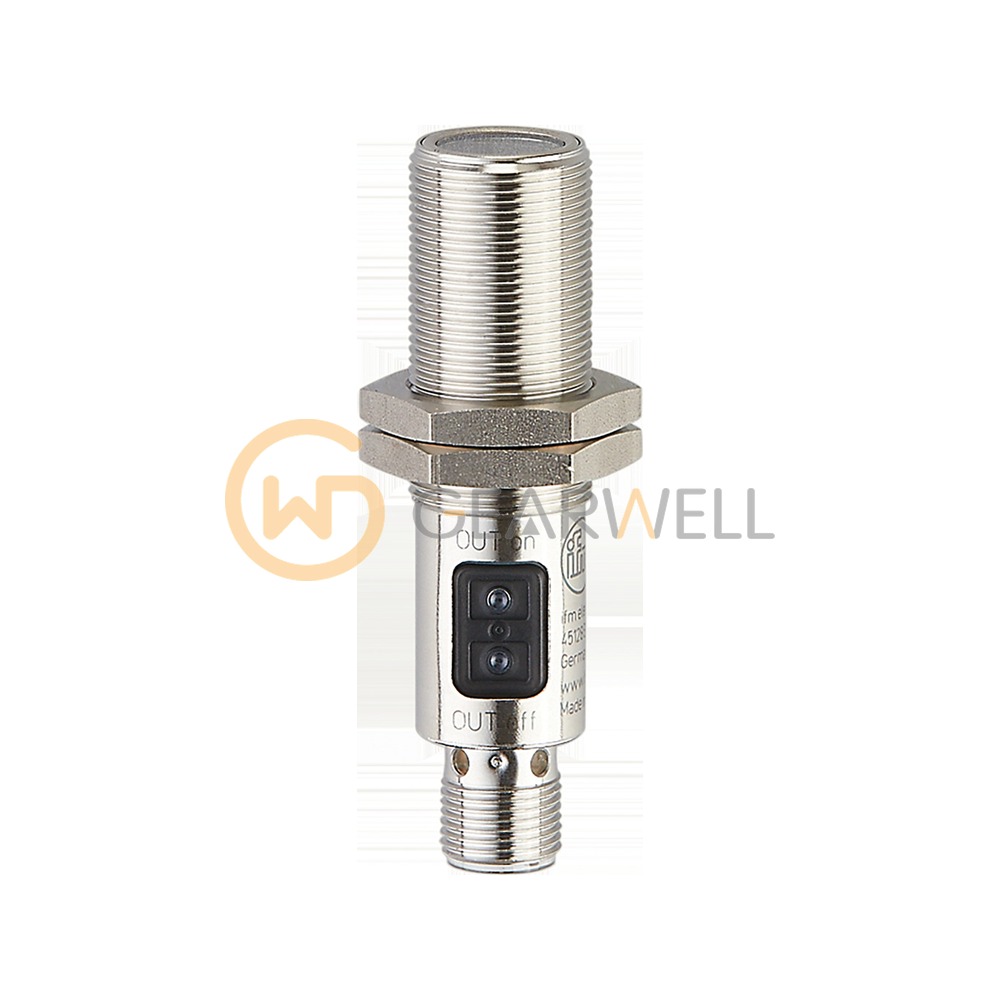

IFM OGH500 Diffuse reflection sensors with background suppression
- Brand
- IFM
- Model
- OGH500
- GEARWELL SKU
- GWP-000012124
- Category
- Proximity & Photoelectric Sensors
Key specifications
- Range
- 15...300; (white paper 200 x 200 mm 90 % remission) mm
- Housing
- Threaded type
- Protection
- IP 67
- Type of light
- red light
- Output function
- light-on/dark-on mode; (programmable)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ifm OGH500 (OGH-FPKG/US100) is a diffuse reflection sensor with background suppression in an M18 x 1 threaded housing 72 mm long. ifm specifies a range of 15…300 mm on white paper 200 x 200 mm with 90 % remission; on grey (18 % remission) it is 15…290 mm and on black (6 % remission) 15…190 mm. It works with red light (624 nm). The light spot is at most 25 mm in diameter at maximum range. It has 1 PNP switching output. The switching output is programmable for light-on or dark-on mode, switches at up to 1000 Hz and carries up to 150 mA. It runs on 10…36 V DC and connects through an M12 connector (A-coded, 4 contacts). It has a PMMA front lens and is rated IP67 for -25…80 °C ambient.
Technical reference
| Product name | IFM OGH500 Diffuse reflection sensors with background suppression |
|---|---|
| Brand | IFM |
| Model | OGH500 |
| Category | Proximity & Photoelectric Sensors |
| Range | 15...300; (white paper 200 x 200 mm 90 % remission) mm |
| Housing | Threaded type |
| Protection | IP 67 |
| Type of light | red light |
| Output function | light-on/dark-on mode; (programmable) |
| Electrical design | PNP |
| Operating voltage | 10...36 DC V |
| Ambient temperature | -25...80 °C |
