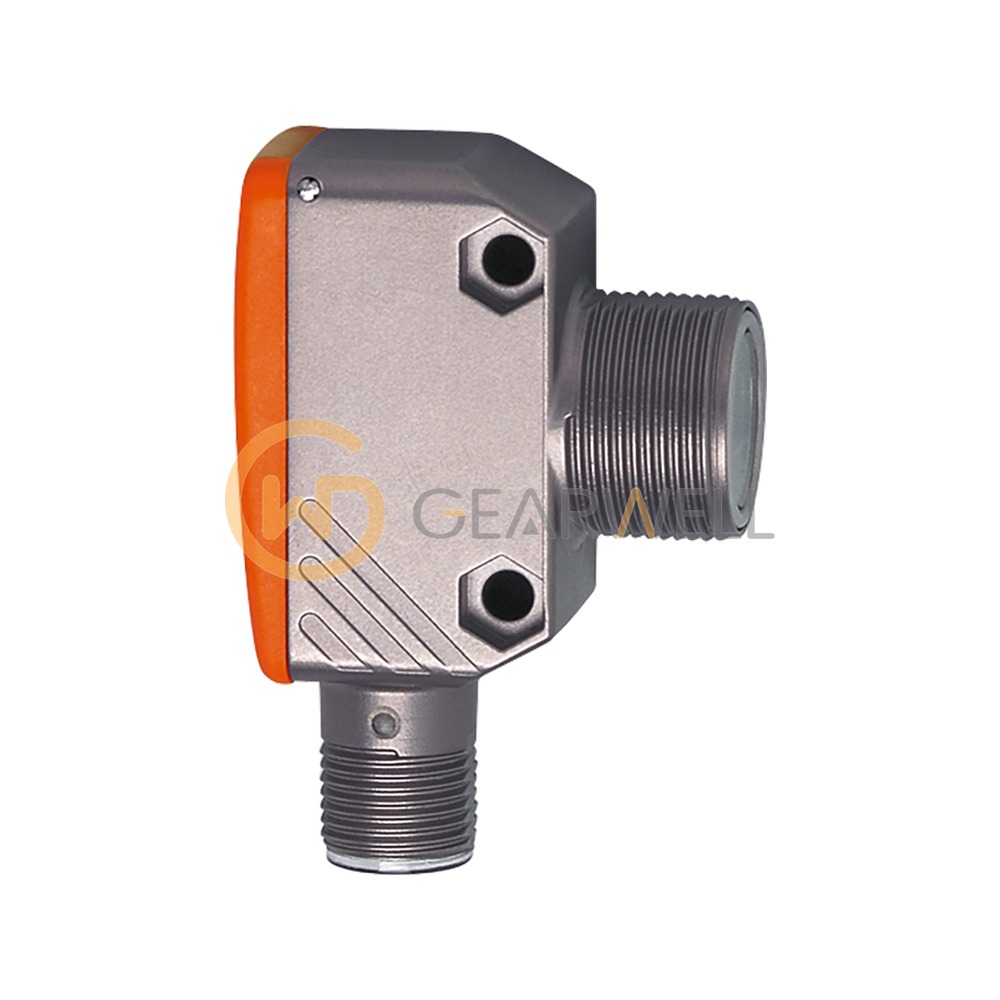

IFM OGH281 Diffuse Reflection Sensor with Background Suppression
- Brand
- IFM
- Model
- OGH281
- GEARWELL SKU
- GWP-000008413
- Category
- Proximity & Photoelectric Sensors
Key specifications
- Range
- < 200 (white paper 200 x 200 mm 90% remission) mm
- Dimensions
- 52.6 x 19.1 x 35.9 mm
- Output function
- light-on mode
- Electrical design
- PNP
- Operating voltage
- 10...30 DC ("supply class 2" to cULus) V
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ifm OGH281 (OGH-HPKG/US/CUBE/200MM) is a diffuse reflection sensor with background suppression in a rectangular housing with M18 x 1 thread, measuring 52.6 x 19.1 x 35.9 mm. ifm specifies a range of up to 200 mm on white paper 200 x 200 mm with 90 % remission; on grey (18 % remission) it is < 200 mm and on black (6 % remission) < 190 mm. It works with red light (645 nm). The light spot is at most 13 mm in diameter at maximum range. It has 1 PNP switching output and IO-Link. The switching output works in light-on mode, switches at up to 1000 Hz and carries up to 200 mA. It runs on 10…30 V DC and connects through an M12 connector (A-coded, 4 contacts). It has a diecast zinc housing and a PEI front lens and is rated IP65 and IP67 for -25…60 °C ambient.
Technical reference
| Product name | IFM OGH281 Diffuse Reflection Sensor with Background Suppression |
|---|---|
| Brand | IFM |
| Model | OGH281 |
| Category | Proximity & Photoelectric Sensors |
| Range | < 200 (white paper 200 x 200 mm 90% remission) mm |
| Dimensions | 52.6 x 19.1 x 35.9 mm |
| Output function | light-on mode |
| Electrical design | PNP |
| Operating voltage | 10...30 DC ("supply class 2" to cULus) V |
| Current consumption | 25 mA |
| Switching frequency DC | 1000 Hz |
| Communication interface | IO-Link |
