IFM OGE701 OGELFPKG/US100 Through-beam laser sensor receiver
- Brand
- IFM
- Model
- OGE701
- GEARWELL SKU
- GWP-000012463
- Category
- Proximity & Photoelectric Sensors
Key specifications
- Range
- < 2 m
- Housing
- Threaded type
- Type of light
- red light
- Output function
- light-on/dark-on mode; (programmable)
- Electrical design
- PNP
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview

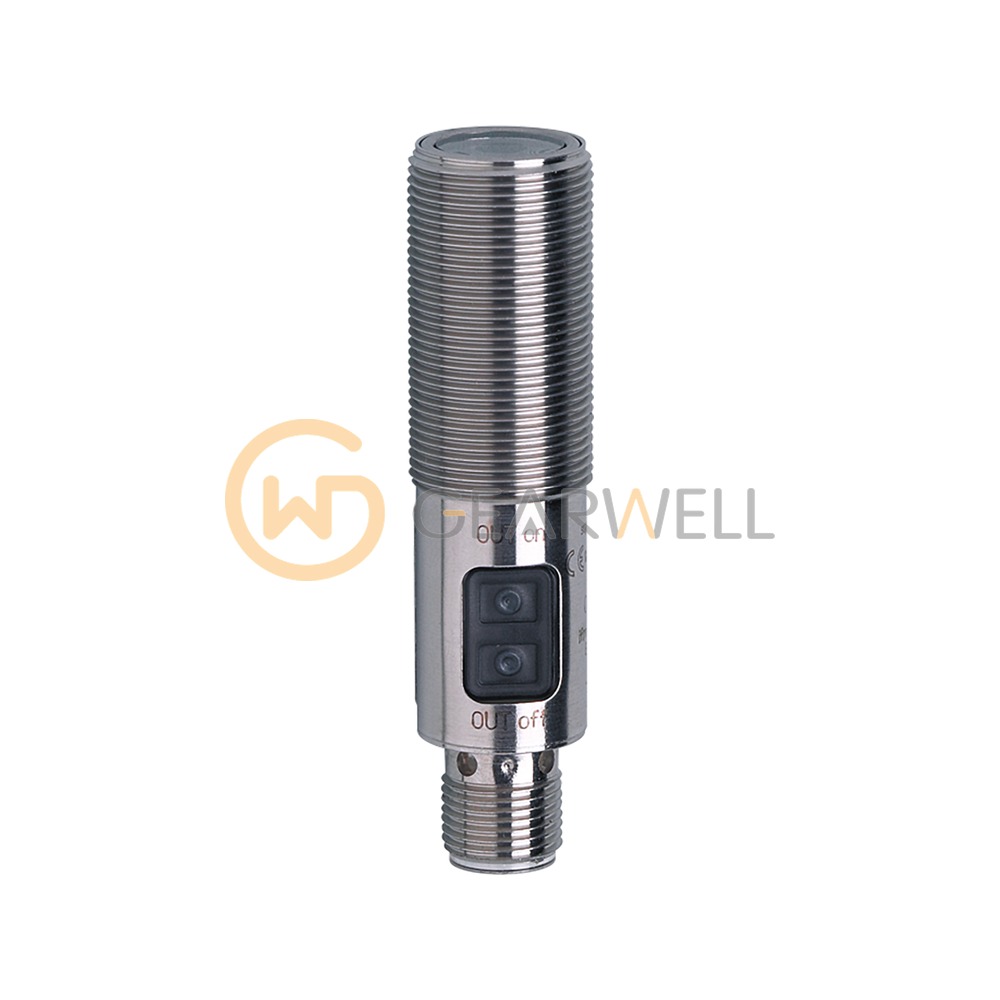

The ifm OGE701 (OGELFPKG/US100) is a through-beam laser sensor receiver in an M18 x 1 threaded housing 72 mm long. ifm specifies a range of up to 2 m. It works with red light (655 nm). It has 1 PNP switching output. The switching output is programmable for light-on or dark-on mode, switches at up to 1000 Hz and carries up to 200 mA. It runs on 10…36 V DC and connects through an M12 connector (A-coded, 4 contacts). It has a PMMA front lens and is rated IP65 and IP67 for -10…60 °C ambient.
Technical reference
| Product name | IFM OGE701 OGELFPKG/US100 Through-beam laser sensor receiver |
|---|---|
| Brand | IFM |
| Model | OGE701 |
| Category | Proximity & Photoelectric Sensors |
| Range | < 2 m |
| Housing | Threaded type |
| Type of light | red light |
| Output function | light-on/dark-on mode; (programmable) |
| Electrical design | PNP |
| Operating voltage | 10...36 DC V |
| Current consumption | 11 mA |
| Switching frequency DC | 1000 Hz |
