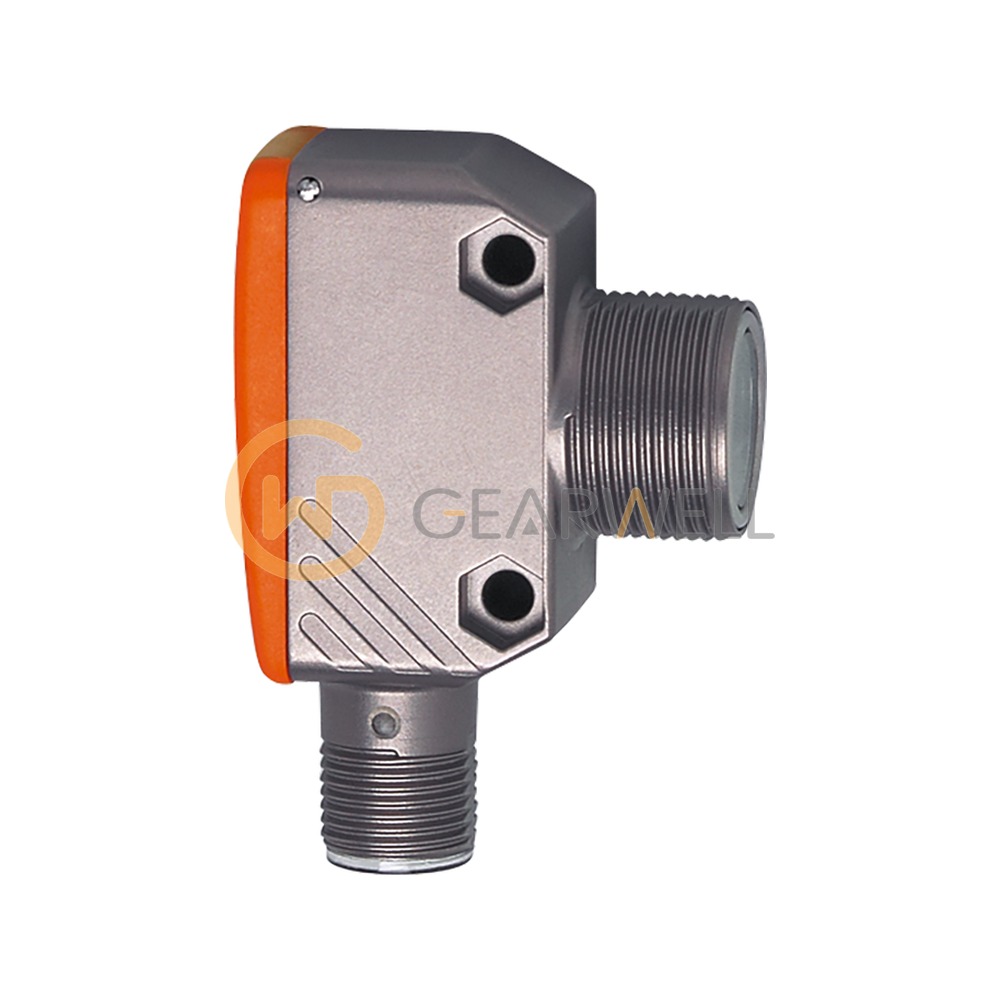

IFM OGE280 OGE-DPKG/US/CUBE Through-beam Sensor Receiver
- Brand
- IFM
- Model
- OGE280
- GEARWELL SKU
- GWP-000008412
- Category
- Proximity & Photoelectric Sensors
Key specifications
- Range
- 20 m
- Dimensions
- 52.6 x 19 x 36 mm
- Output function
- dark-on mode
- Electrical design
- PNP
- Operating voltage
- 10...30 DC ("supply class 2" to cULus) V
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ifm OGE280 (OGE-DPKG/US/CUBE) is a through-beam sensor receiver in a rectangular housing with M18 x 1 thread, measuring 52.6 x 19 x 36 mm. ifm specifies a range of 20 m. It works with red light (662 nm). It has 1 PNP switching output and IO-Link. The switching output works in dark-on mode, switches at up to 1000 Hz and carries up to 200 mA. It runs on 10…30 V DC and connects through an M12 connector (A-coded, 4 contacts). It has a diecast zinc housing and a PMMA front lens and is rated IP65 and IP67 for -25…60 °C ambient.
Technical reference
| Product name | IFM OGE280 OGE-DPKG/US/CUBE Through-beam Sensor Receiver |
|---|---|
| Brand | IFM |
| Model | OGE280 |
| Category | Proximity & Photoelectric Sensors |
| Range | 20 m |
| Dimensions | 52.6 x 19 x 36 mm |
| Output function | dark-on mode |
| Electrical design | PNP |
| Operating voltage | 10...30 DC ("supply class 2" to cULus) V |
| Current consumption | 16 mA |
| Switching frequency DC | 1000 Hz |
| Communication interface | IO-Link |
