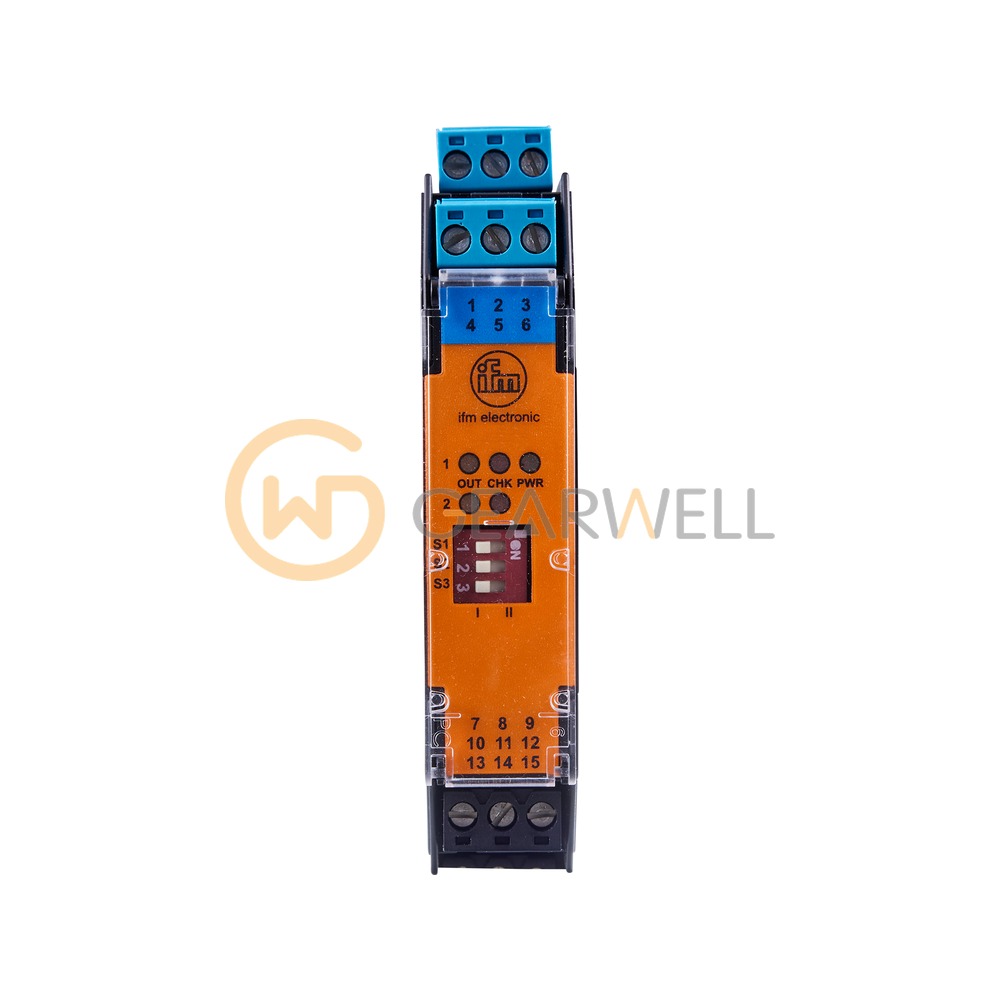

IFM N0533A Switching Amplifiers for Namur Sensors
- Brand
- IFM
- Model
- N0533A
- GEARWELL SKU
- GWP-000009369
- Category
- Relays & Controllers
Key specifications
- Housing
- rectangular
- Dimensions
- 118.8 x 20 x 110 mm
- Protection
- IP 20
- Electrical design
- relay (per channel: 1 changeover contact parameterisable)
- Operating voltage
- 24 DC V
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ifm N0533A (NV1221/24VDC/RL/1D/1G) is a switching amplifier for NAMUR sensors with two channels, for DIN rail mounting. Each channel switches a relay with one changeover contact rated at 253 V AC / 2 A (cos phi > 0.7) or 40 V DC / 2 A with a resistive load, up to 10 Hz. It monitors the sensor circuit for short circuits and wire breaks, runs on 24 V DC (-15…25 %), and carries the ATEX marking II (1) G [Ex ia Ga] IIC (PTB 02 ATEX 2036, IECEx PTB 17.0024). ifm notes that the unit must be mounted outside the hazardous area and that free terminals must not be used. The housing measures 118.8 x 20 x 110 mm, has terminals for conductors up to 2.5 mm² and is rated IP20 for -20…60 °C ambient.
Technical reference
| Product name | IFM N0533A Switching Amplifiers for Namur Sensors |
|---|---|
| Brand | IFM |
| Model | N0533A |
| Category | Relays & Controllers |
| Housing | rectangular |
| Dimensions | 118.8 x 20 x 110 mm |
| Protection | IP 20 |
| Electrical design | relay (per channel: 1 changeover contact parameterisable) |
| Operating voltage | 24 DC V |
| Ambient temperature | -20...60 °C |
| Current consumption | < 50 mA |
| Switching frequency DC | 10 Hz |
