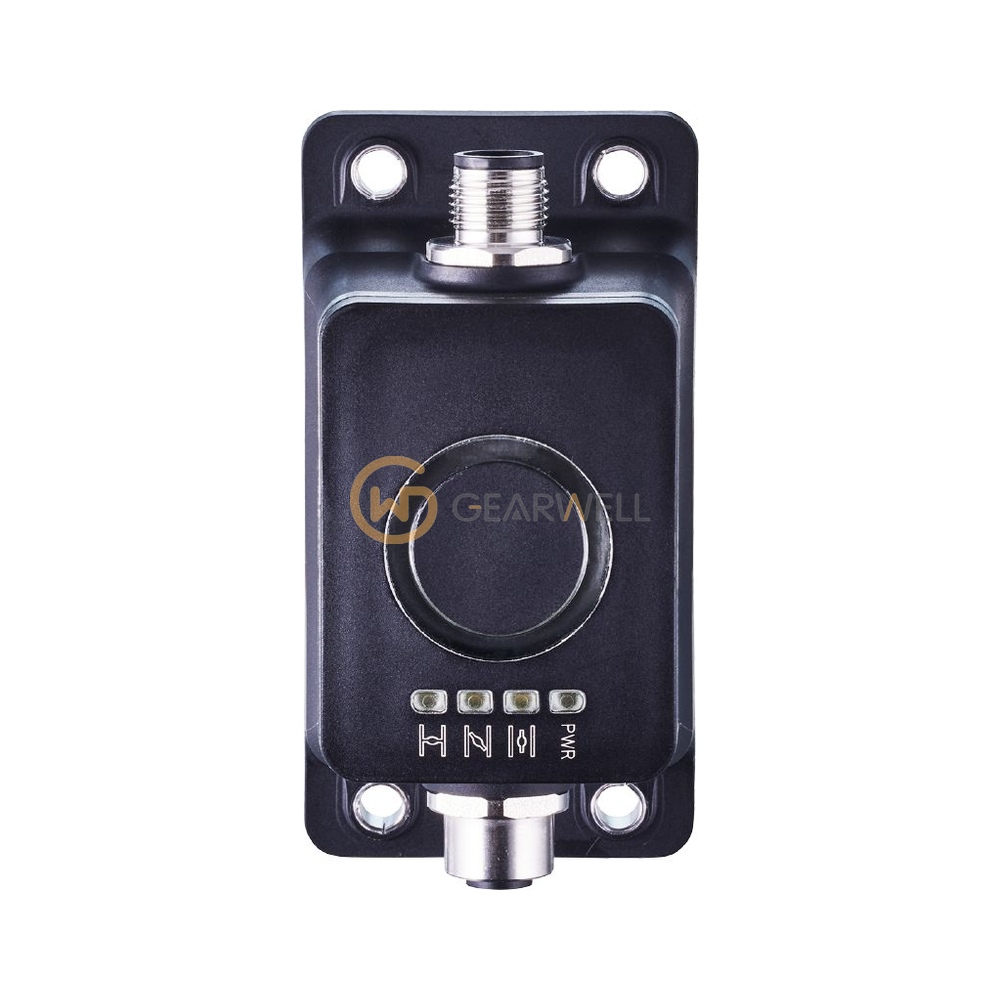

IFM MVQ301 Positioner for Industrial Valves
- Brand
- IFM
- Model
- MVQ301
- GEARWELL SKU
- GWP-000006769
- Category
- Encoders & Position
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ifm MVQ301 (MVQ3360-XRKG/IO/B-Port/2SV/US) is a magnetic positioner for industrial valves that detects the absolute angle of rotation over 360° for position control, with IO-Link. ifm gives an accuracy of ±1°, a repeatability of 0.1° and a temperature drift of 0.02°/K; it has two normally open PNP outputs rated at 200 mA each and runs on 20…30 V DC. The PA housing with PA target puck measures 95 x 50 x 57 mm and is rated IP65 and IP67 for -25…70 °C ambient. It has UL approval under file E174191, and four M5 x 16 mm stainless steel socket head screws are supplied.
Technical reference
| Product name | IFM MVQ301 Positioner for Industrial Valves |
|---|---|
| Brand | IFM |
| Model | MVQ301 |
| Category | Encoders & Position |
