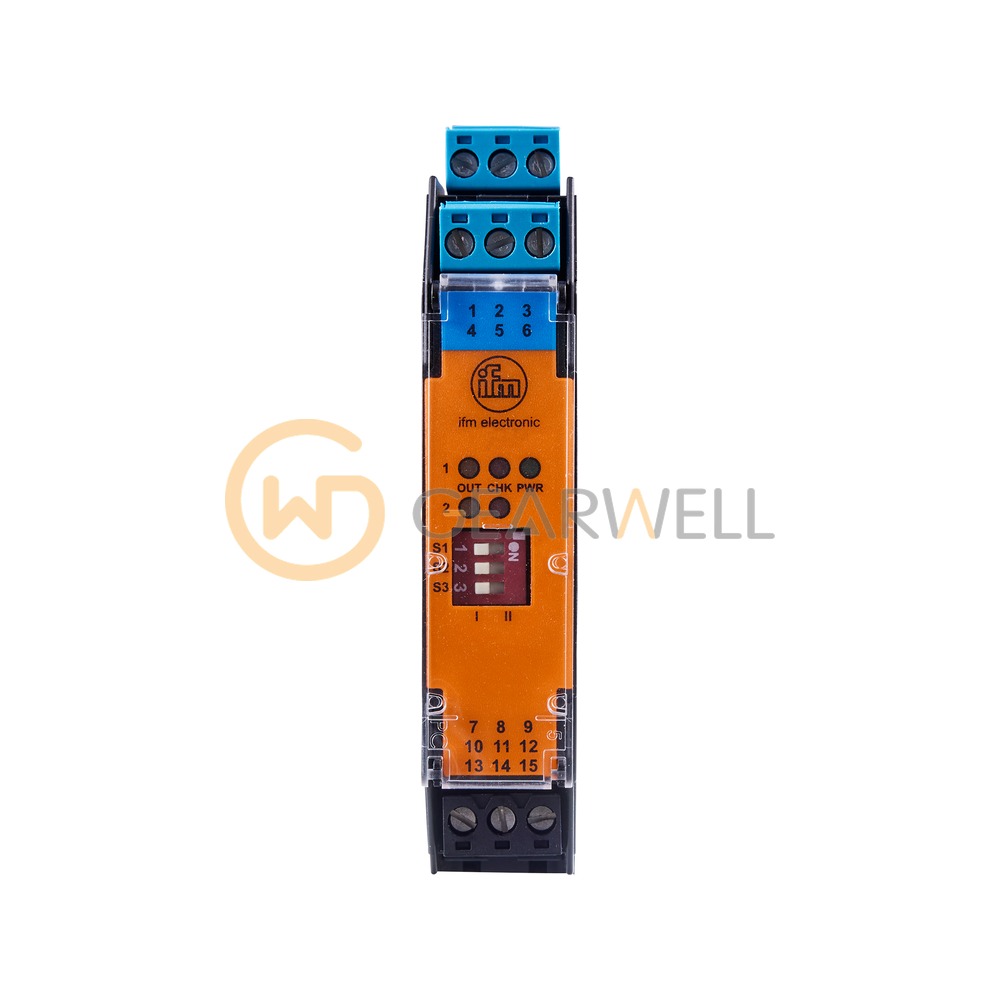

IFM N0539A Switching Amplifiers for Namur Sensors
- Brand
- IFM
- Model
- N0539A
- GEARWELL SKU
- GWP-000009370
- Category
- Relays & Controllers
Key specifications
- Dimensions
- 118.8 x 20 x 110 mm
- Protection
- IP 20
- Electrical design
- PNP
- Operating voltage
- 24 DC V
- Ambient temperature
- -20...60 °C
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ifm N0539A (NV1222/24VDC/TR/1D/1G) is a switching amplifier for NAMUR sensors with two channels, for DIN rail mounting. It has two short-circuit-proof PNP transistor outputs rated at 100 mA each, switching up to 5000 Hz. It monitors the sensor circuit for short circuits and wire breaks, runs on 24 V DC (-15…25 %), and carries the ATEX marking II 3 (1) G Ex nA [ia Ga] IIC T4 Gc (FIDI 20 ATEX 0022X, IECEx FIDI 20.0003X). ifm notes that the unit must be mounted as described in the operating instructions and that free terminals must not be used. The housing measures 118.8 x 20 x 110 mm, has terminals for conductors up to 2.5 mm² and is rated IP20 for -20…60 °C ambient.
Technical reference
| Product name | IFM N0539A Switching Amplifiers for Namur Sensors |
|---|---|
| Brand | IFM |
| Model | N0539A |
| Category | Relays & Controllers |
| Dimensions | 118.8 x 20 x 110 mm |
| Protection | IP 20 |
| Electrical design | PNP |
| Operating voltage | 24 DC V |
| Ambient temperature | -20...60 °C |
| Current consumption | < 50 mA |
| Switching frequency DC | 5000 Hz |
| Number of digital outputs | 2 |
