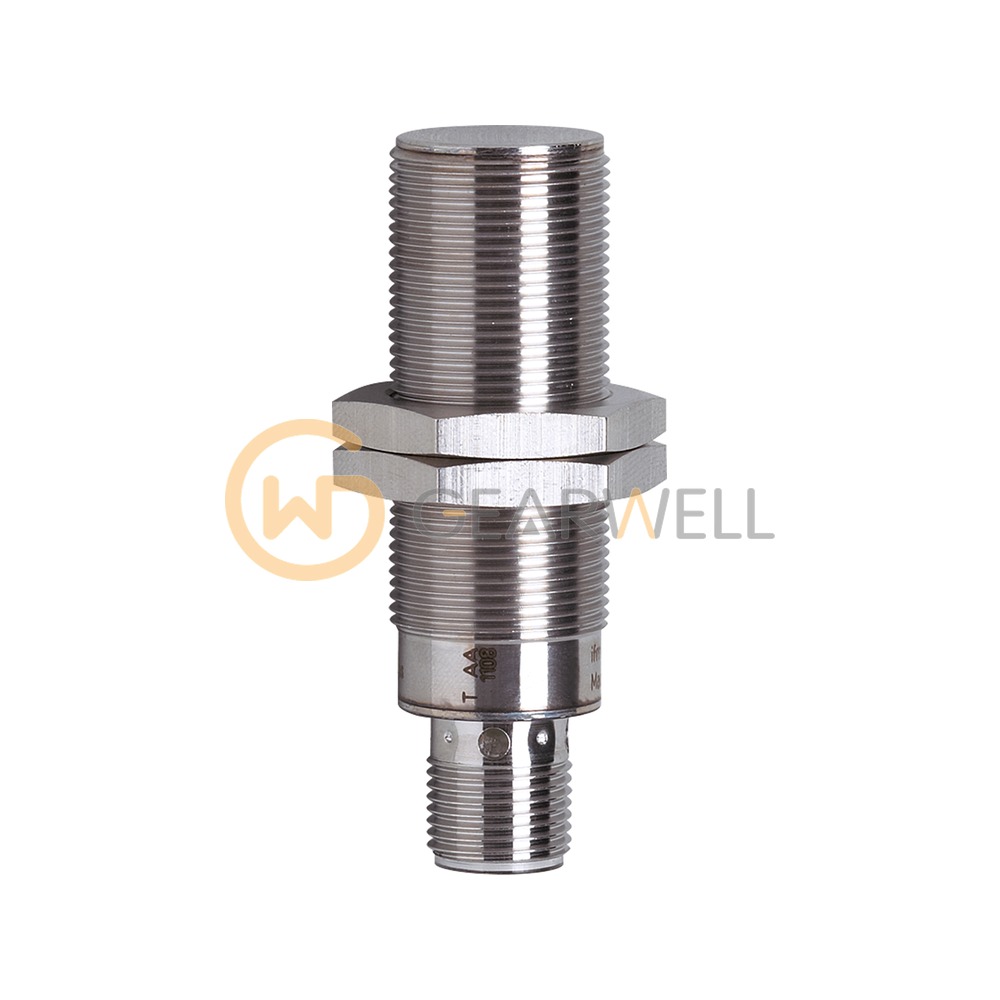

IFM MGS205 MGK3070-ANKG/AM/G/US Full-metal magnetic sensor
- Brand
- IFM
- Model
- MGS205
- GEARWELL SKU
- GWP-000012448
- Category
- Proximity & Photoelectric Sensors
Key specifications
- Housing
- Threaded type
- Dimensions
- M18 x 1 / L = 60 mm
- Sensing range
- 70; (referred to magnet M 4.0) mm
- Output function
- normally open
- Electrical design
- NPN
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ifm MGS205 (MGK3070-ANKG/AM/G/US) is a full-metal magnetic sensor in an M18 x 1 threaded housing 60 mm long. It detects a magnet over up to 70 mm (referred to magnet M 4.0) with a magnetic sensitivity of 0.9 mT, has a pressure rating of 100 bar and switches up to 5000 Hz. The NPN switching output is normally open, rated at 200 mA, on 10…30 V DC. The sensor has a stainless steel (1.4404 / 316L) housing and connects through an M12 connector (A-coded, 4 gold-plated contacts), and is rated IP65 and IP67 for -25…75 °C ambient. Supplied with two lock nuts.
Technical reference
| Product name | IFM MGS205 MGK3070-ANKG/AM/G/US Full-metal magnetic sensor |
|---|---|
| Brand | IFM |
| Model | MGS205 |
| Category | Proximity & Photoelectric Sensors |
| Housing | Threaded type |
| Dimensions | M18 x 1 / L = 60 mm |
| Sensing range | 70; (referred to magnet M 4.0) mm |
| Output function | normally open |
| Electrical design | NPN |
| Operating voltage | 10...30 DC V |
| Current consumption | < 10 mA |
| Switching frequency DC | 5000 Hz |
