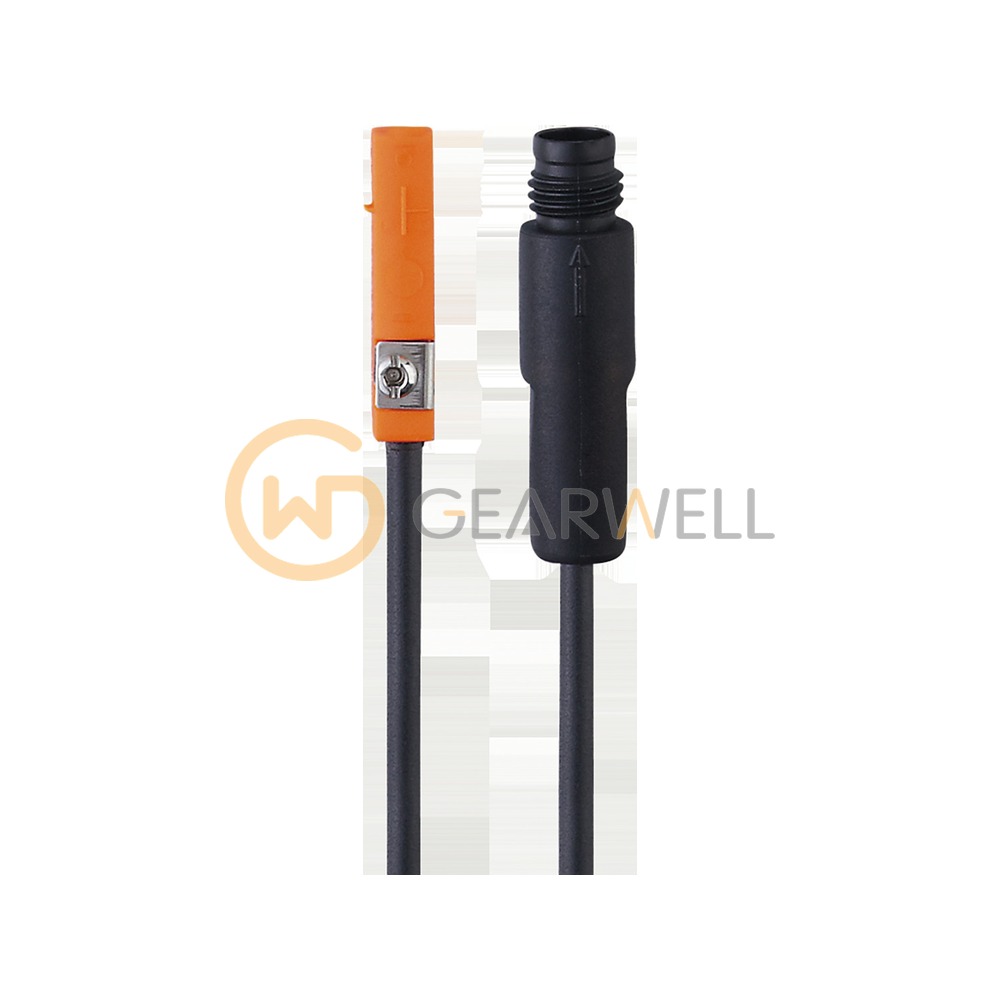

IFM MK5104 cylinder sensors MK T-slot cylinder sensor
- Brand
- IFM
- Model
- MK5104
- GEARWELL SKU
- GWP-000012120
- Category
- Proximity & Photoelectric Sensors
Key specifications
- Dimensions
- 25 x 5 x 6.5 mm
- Protection
- IP 65; IP 67
- Output function
- normally open
- Electrical design
- PNP/NPN
- Operating voltage
- 10...30 DC; (cULus - Class 2 source required) V
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ifm MK5104 (MKT2028BARKG/G/0,3M/ZH/AS) is a T-slot cylinder sensor in a housing measuring 25 x 5 x 6.5 mm, for flush mounting. It fits T-slot cylinders, uses a GMR cell with a magnetic sensitivity of 2.8 mT, switches up to 4000 Hz and detects travel speeds above 10 m/s with a repeatability under 0.2 mm. The PNP/NPN switching output is normally open, rated at 100 mA, on 10…30 V DC. The sensor has a PA housing with a stainless steel fastening clamp and connects through a 0.3 m PUR cable ending in an M8 connector (A-coded, 3 contacts), and is rated IP65 and IP67 for -25…85 °C ambient. Supplied with a rubber memory stop and a cable clip.
Technical reference
| Product name | IFM MK5104 cylinder sensors MK T-slot cylinder sensor |
|---|---|
| Brand | IFM |
| Model | MK5104 |
| Category | Proximity & Photoelectric Sensors |
| Dimensions | 25 x 5 x 6.5 mm |
| Protection | IP 65; IP 67 |
| Output function | normally open |
| Electrical design | PNP/NPN |
| Operating voltage | 10...30 DC; (cULus - Class 2 source required) V |
| Ambient temperature | -25...85 °C |
| Magnetic sensitivity | 2.8 mT |
