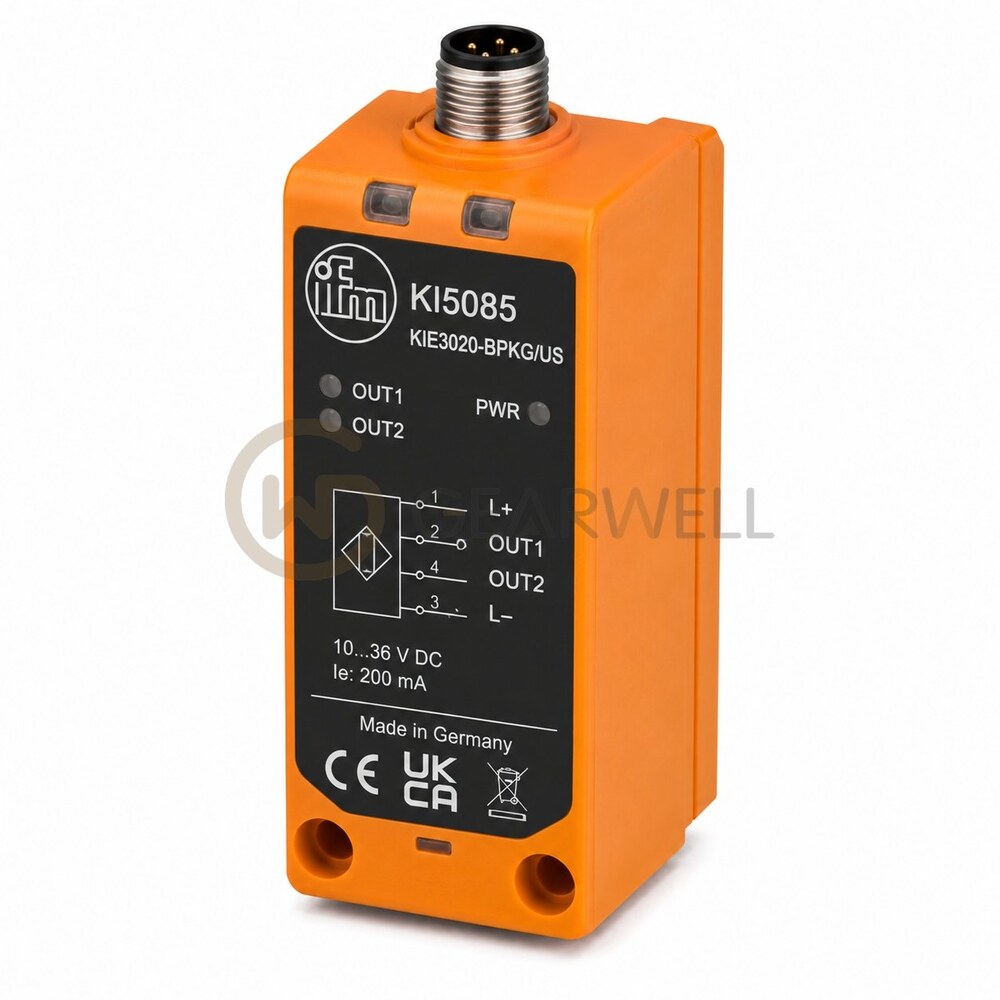

IFM KI5085 Capacitive Sensor
- Brand
- IFM
- Model
- KI5085
- GEARWELL SKU
- GWP-000003733
- Category
- Industrial Automation Parts
Key specifications
- Protection
- IP 65; IP 67
- Product type
- Capacitive sensor
- Sensing range
- 8 mm
- Output function
- normally open / closed; (selectable)
- Electrical design
- PNP
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ifm KI5085 (KIA3080BFPKG/2T/US) is a capacitive proximity sensor in an M30 x 1.5 threaded housing 90 mm long, for flush mounting. Its rated sensing range is 8 mm. The PNP switching output is selectable as normally open or normally closed, rated at 100 mA and up to 10 Hz on 10…30 V DC, with reverse polarity protection. The sensor has a stainless steel (1.4404 / 316L) housing, connects through an M12 connector (A-coded, 3 contacts) and is rated IP65 and IP67 for -25…80 °C ambient. Supplied with two lock nuts.
Technical reference
| Product name | IFM KI5085 Capacitive Sensor |
|---|---|
| Brand | IFM |
| Model | KI5085 |
| Category | Industrial Automation Parts |
| Protection | IP 65; IP 67 |
| Product type | Capacitive sensor |
| Sensing range | 8 mm |
| Output function | normally open / closed; (selectable) |
| Electrical design | PNP |
| Operating voltage | 10...30 V DC; (10...36 DC (60 °C)) |
| Current consumption | < 18 mA |
| Communication interface | IO-Link |
