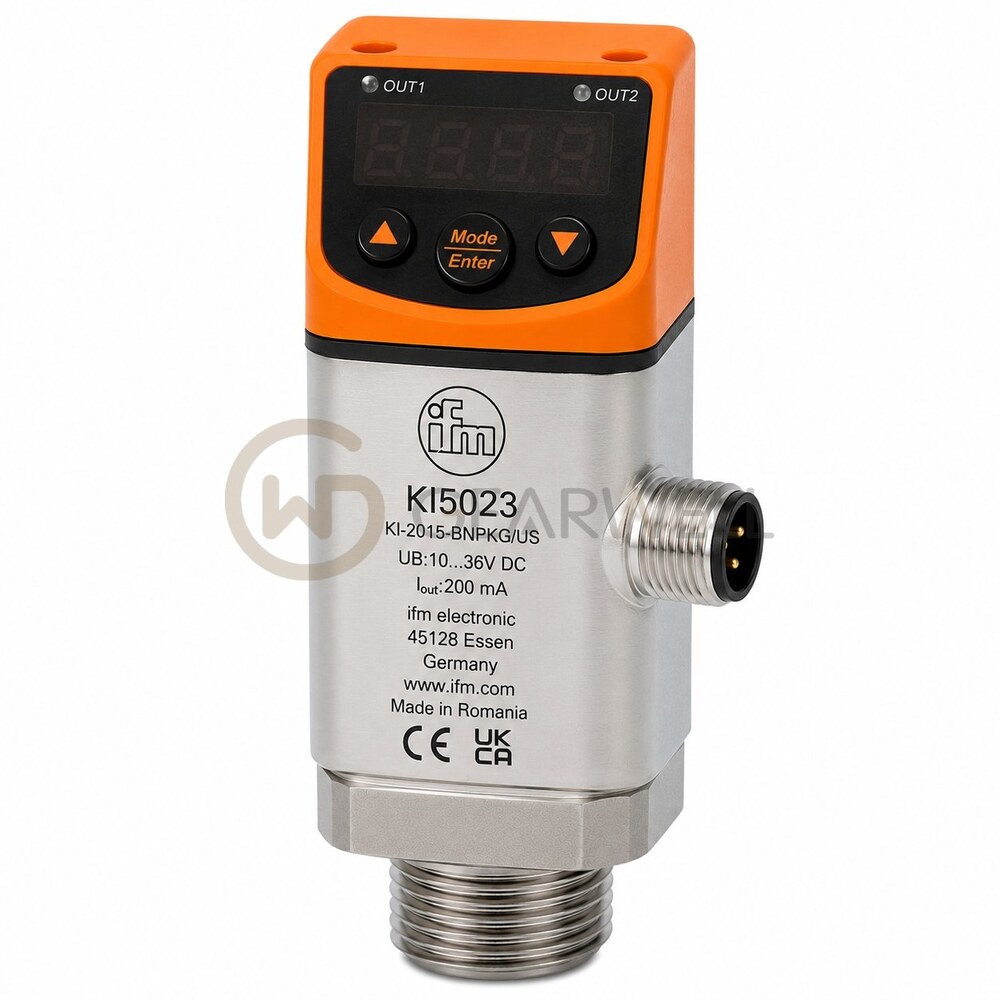

IFM KI5023 Capacitive Sensor
- Brand
- IFM
- Model
- KI5023
- GEARWELL SKU
- GWP-000000531
- Category
- Industrial Automation Parts
Key specifications
- Protection
- IP 65
- Product type
- Capacitive sensor
- Sensing range
- 15 mm
- Output function
- normally open / closed; (selectable)
- Electrical design
- PNP
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ifm KI5023 (KIE3015-FPKG/NI/55V) is a capacitive proximity sensor in an M30 x 1.5 threaded housing 125 mm long, for non-flush mounting. Its rated sensing range is 15 mm. The real sensing range is 15 mm ± 10% and the operating distance is 0…12.1 mm. ifm gives correction factors of 0.4 for glass, 1 for water, 0.2 for ceramics and 0.2 for PVC. The PNP switching output is selectable as normally open or normally closed, rated at 250 mA and up to 40 Hz on 10…55 V DC, with reverse polarity protection. ifm specifies increased immunity to conducted radio frequency interference. The sensor has a PBT housing, connects through terminals for conductors up to 2.5 mm² in a terminal chamber with an M20 x 1.5 cable gland for cable Ø 7…13 mm and is rated IP65 for -25…70 °C ambient. Supplied with two lock nuts.
Technical reference
| Product name | IFM KI5023 Capacitive Sensor |
|---|---|
| Brand | IFM |
| Model | KI5023 |
| Category | Industrial Automation Parts |
| Protection | IP 65 |
| Product type | Capacitive sensor |
| Sensing range | 15 mm |
| Output function | normally open / closed; (selectable) |
| Electrical design | PNP |
| Operating voltage | 10...55 V DC; (cULus - Class 2 source required) |
| Ambient temperature | -25...70 °C |
| Current consumption | 14; (24 V) mA |
