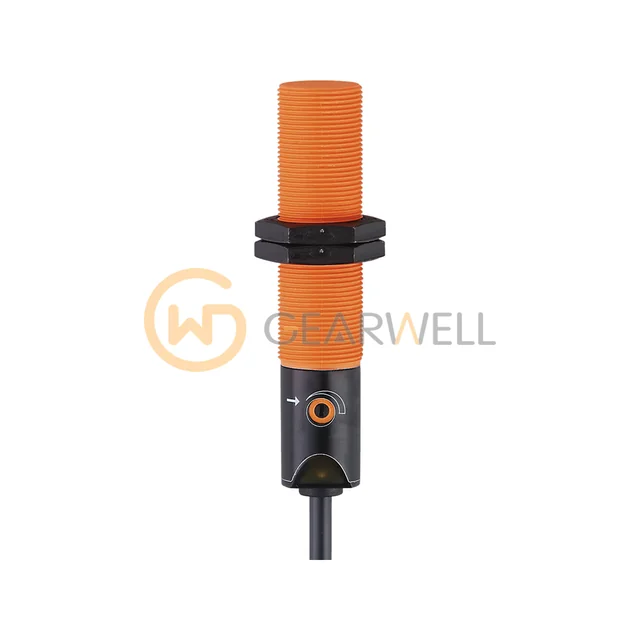

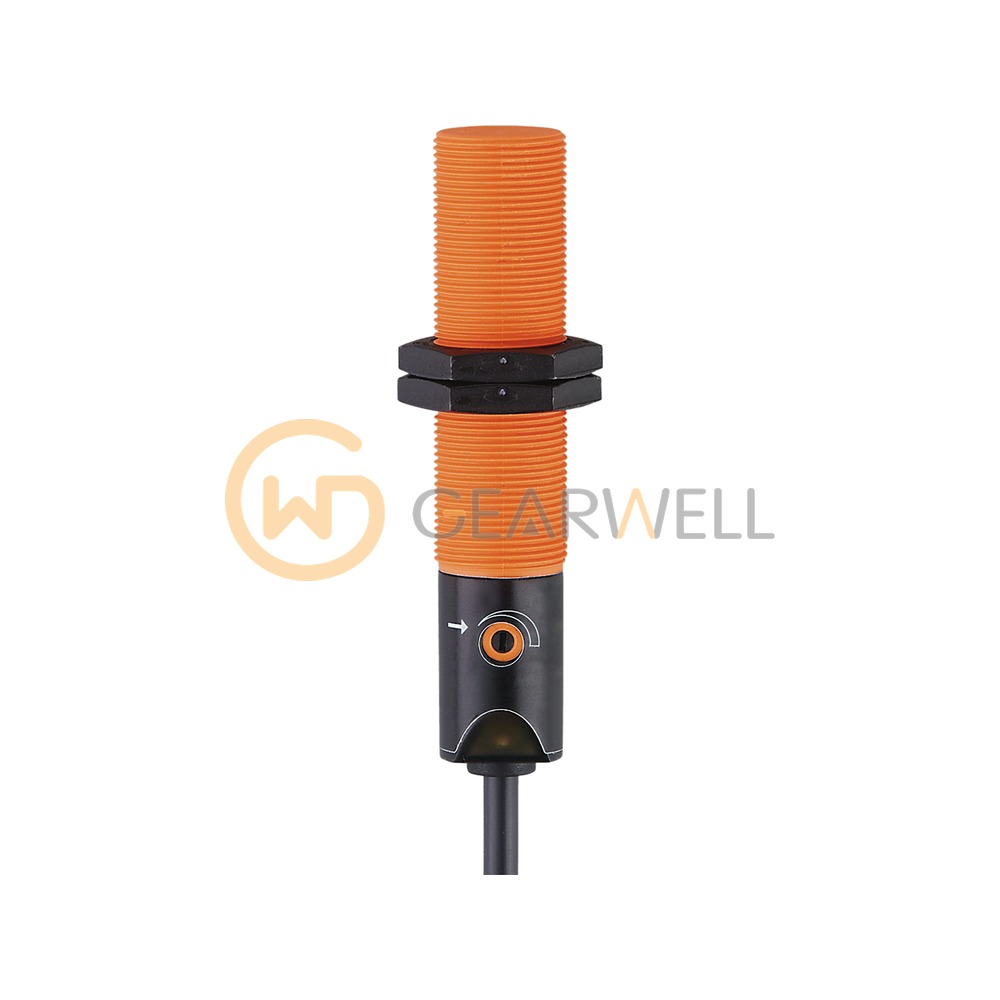

IFM KG0009 KG-2008-ABOA/NI Capacitive sensor

Product overview

The ifm KG0009 (KG-2008-ABOA/NI) is a capacitive proximity sensor in an M18 x 1 threaded housing 84 mm long, for non-flush mounting. Its rated sensing range is 8 mm. The real sensing range is 8 mm ± 10% and the operating distance is 0…6.5 mm. ifm gives correction factors of 0.4 for glass, 1 for water, 0.2 for ceramics and 0.2 for PVC. It is a two-wire sensor for 20…250 V AC/DC; the output is normally open, with an AC load current of 150 mA and a switching frequency of 25 Hz on AC, or 100 mA and 50 Hz on DC. ifm specifies a fast-acting miniature fuse of 2 A or less in the supply. The sensor has a PBT housing, connects through a 2 m PVC cable with 2 x 0.34 mm² conductors and is rated IP67 for -25…80 °C ambient. Supplied with two lock nuts.
