IFM KF5002 KFA3080NBPKG/NI/US Capacitive Sensor
- Brand
- IFM
- Model
- KF5002
- GEARWELL SKU
- GWP-000008402
- Category
- Proximity & Photoelectric Sensors
Key specifications
- Dimensions
- M12 x 1 / L = 61 mm
- Protection
- IP 65
- Sensing range
- 3...12 mm
- Output function
- normally open
- Electrical design
- PNP
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview

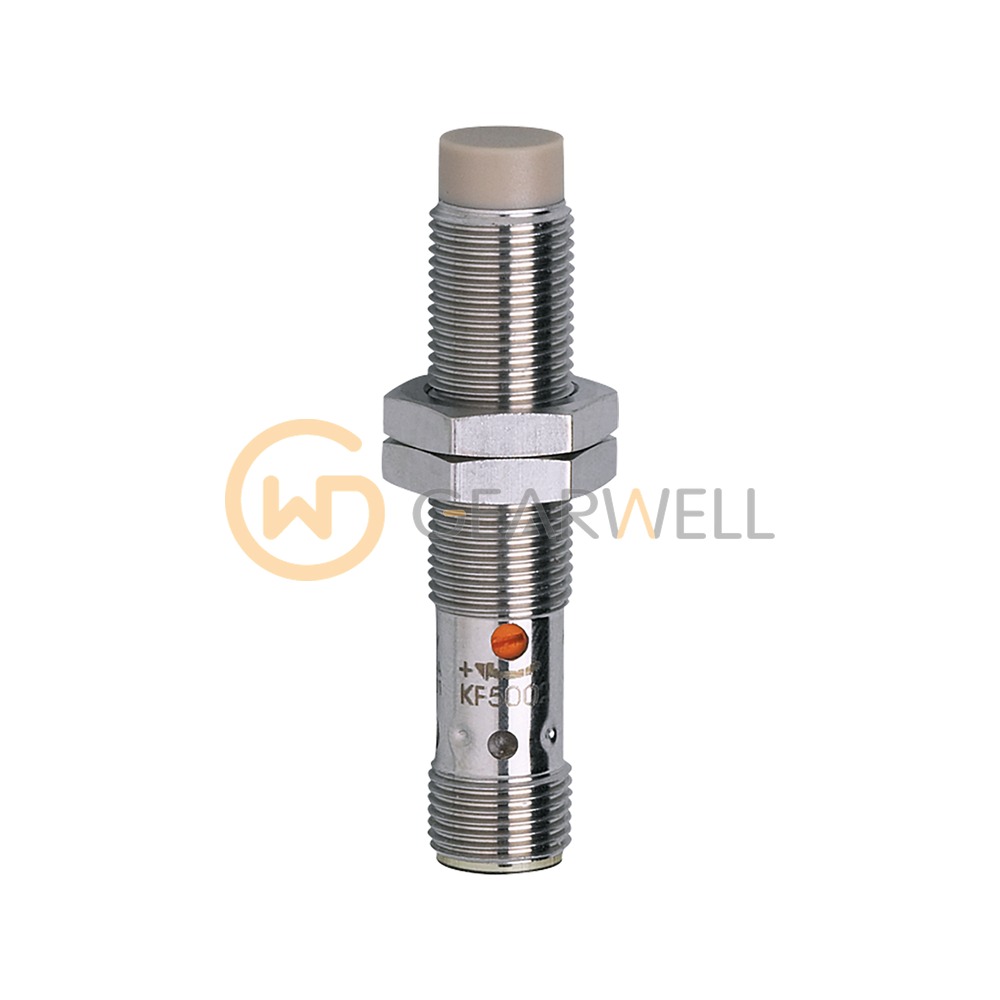

The ifm KF5002 (KFA3080NBPKG/NI/US) is a capacitive sensor in an M12 x 1 threaded housing 61 mm long, for non-flush mounting. Its sensing range is 3…12 mm, adjustable and factory-set to 8 mm; the real sensing range is 8 mm ± 10%. ifm lists it for dry bulk material and liquids. ifm gives correction factors of 0.6 for glass, 1 for water, 0.5 for ceramics and 0.4 for PVC. The PNP switching output is normally open, rated at 100 mA and up to 50 Hz, on 10…36 V DC. The sensor has a stainless steel (1.4404 / 316L) housing with a PEEK sensing face and connects through an M12 connector (A-coded, 3 contacts), and is rated IP65 for -25…70 °C ambient. Supplied with two lock nuts.
Technical reference
| Product name | IFM KF5002 KFA3080NBPKG/NI/US Capacitive Sensor |
|---|---|
| Brand | IFM |
| Model | KF5002 |
| Category | Proximity & Photoelectric Sensors |
| Dimensions | M12 x 1 / L = 61 mm |
| Protection | IP 65 |
| Sensing range | 3...12 mm |
| Output function | normally open |
| Electrical design | PNP |
| Operating voltage | 10...36 DC ("supply class 2" to cULus) V |
| Current consumption | < 12 mA |
| Switching frequency DC | 50 Hz |
