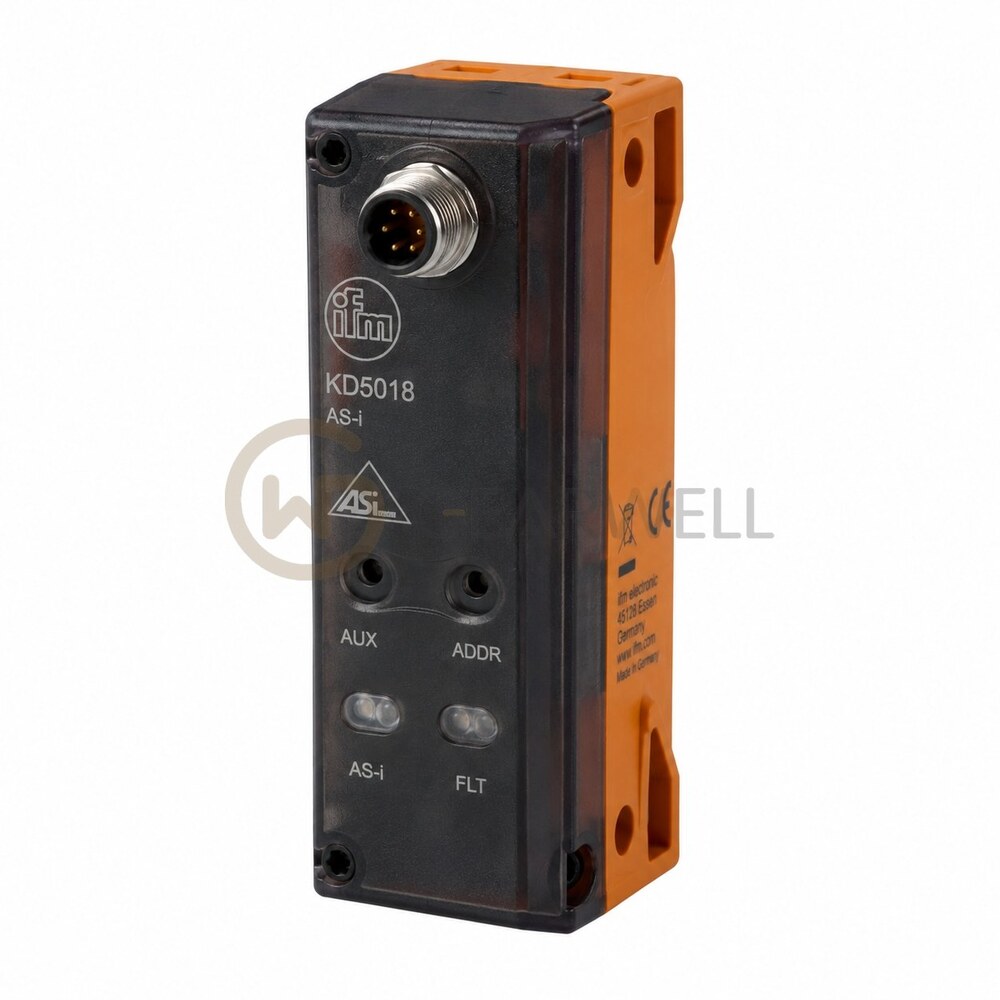

IFM KD5018 Capacitive Sensor
- Brand
- IFM
- Model
- KD5018
- GEARWELL SKU
- GWP-000003807
- Category
- Industrial Automation Parts
Key specifications
- Protection
- IP 65
- Product type
- Capacitive sensor
- Sensing range
- 60 mm
- Output function
- normally open / closed; (selectable)
- Electrical design
- PNP
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ifm KD5018 (KDE3060-FPKG/NI) is a capacitive sensor in a housing measuring 105 x 80 x 40 mm, for non-flush mounting. Its sensing range is 60 mm; the real sensing range is 60 mm ± 10% and the operating distance is 0…48.6 mm. ifm gives correction factors of 0.4 for glass, 1 for water, 0.2 for ceramics and 0.2 for PVC. The PNP switching output is configurable as normally open or normally closed, rated at 250 mA and up to 10 Hz, on 10…36 V DC. The sensor has a modified PPE housing and connects through terminals for conductors up to 2.5 mm² with an M20 x 1.5 cable gland for cable Ø 7…13 mm, and is rated IP65 for -25…80 °C ambient. Supplied with four spring washers and four cylinder screws.
Technical reference
| Product name | IFM KD5018 Capacitive Sensor |
|---|---|
| Brand | IFM |
| Model | KD5018 |
| Category | Industrial Automation Parts |
| Protection | IP 65 |
| Product type | Capacitive sensor |
| Sensing range | 60 mm |
| Output function | normally open / closed; (selectable) |
| Electrical design | PNP |
| Operating voltage | 10...36 V DC |
| Ambient temperature | -25...80 °C |
| Current consumption | 15; (24 V) mA |
