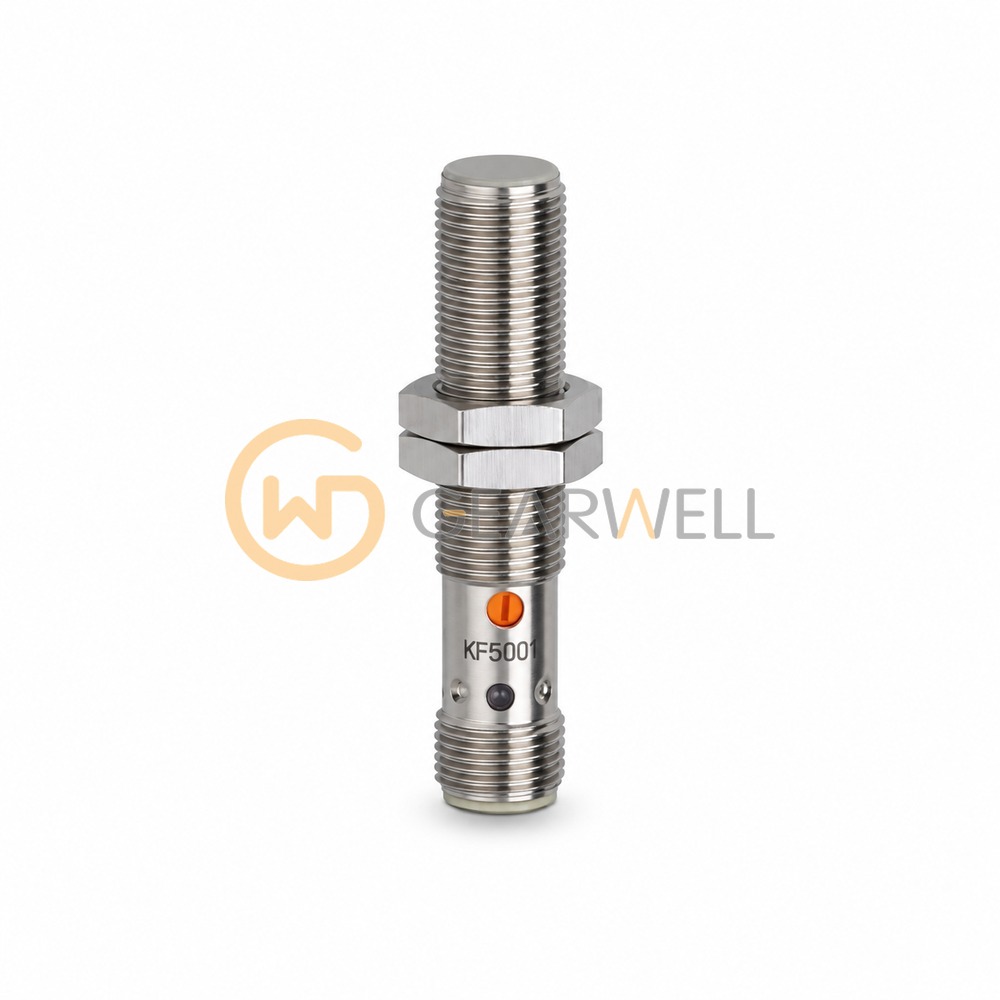

IFM KF5001 Capacitive Sensor
- Brand
- IFM
- Model
- KF5001
- GEARWELL SKU
- GWP-000003236
- Category
- Proximity & Photoelectric Sensors
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ifm KF5001 (KFA3040BBPKG/NI/US) is a capacitive sensor in an M12 x 1 threaded housing 60 mm long, for flush mounting. Its sensing range is 1…6 mm, adjustable and factory-set to 4 mm; the real sensing range is 4 mm ± 10%. ifm lists it for dry bulk material and liquids. ifm gives correction factors of 0.6 for glass, 1 for water, 0.5 for ceramics and 0.4 for PVC. The PNP switching output is normally open, rated at 100 mA and up to 50 Hz, on 10…36 V DC. The sensor has a stainless steel (1.4404 / 316L) housing with a PEEK sensing face and connects through an M12 connector (A-coded, 3 contacts), and is rated IP65 for -25…70 °C ambient. Supplied with two lock nuts.
Technical reference
| Product name | IFM KF5001 Capacitive Sensor |
|---|---|
| Brand | IFM |
| Model | KF5001 |
| Category | Proximity & Photoelectric Sensors |
