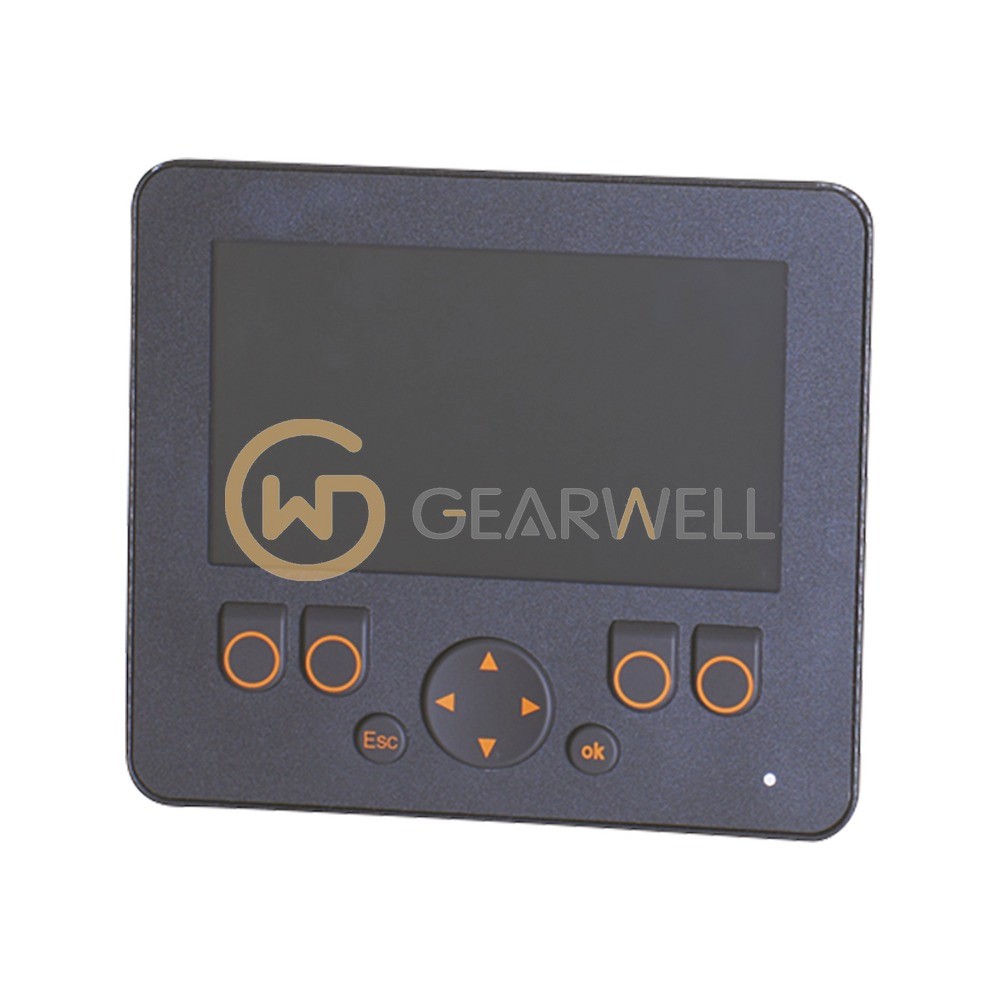

IFM CR0452 Programmable Graphic Display
- Brand
- IFM
- Model
- CR0452
- GEARWELL SKU
- GWP-000008638
- Category
- HMIs & Industrial PCs
Key specifications
- Weight
- 291.5 g
- Housing
- rectangular
- Dimensions
- 109.5 x 124.5 x 40.5 mm
- Display type
- colour display
- Operating voltage
- 8...32 DC V
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ifm CR0452 (R360/BasicDisplay XL) is a programmable display for mobile machines, programmable to IEC 61131-3, with a 4.3" LED-backlit color display of 480 x 272 pixels. It has six freely programmable backlit function keys and a navigation key for the cursor, and one CAN interface. It runs on 8…32 V DC, measures 109.5 x 124.5 x 40.5 mm, mounts in a panel or on a surface and connects through an M12 connector (A-coded, 5 contacts).
Technical reference
| Product name | IFM CR0452 Programmable Graphic Display |
|---|---|
| Brand | IFM |
| Model | CR0452 |
| Category | HMIs & Industrial PCs |
| Weight | 291.5 g |
| Housing | rectangular |
| Dimensions | 109.5 x 124.5 x 40.5 mm |
| Display type | colour display |
| Operating voltage | 8...32 DC V |
| PLC function to IEC 61131-3 | yes |
