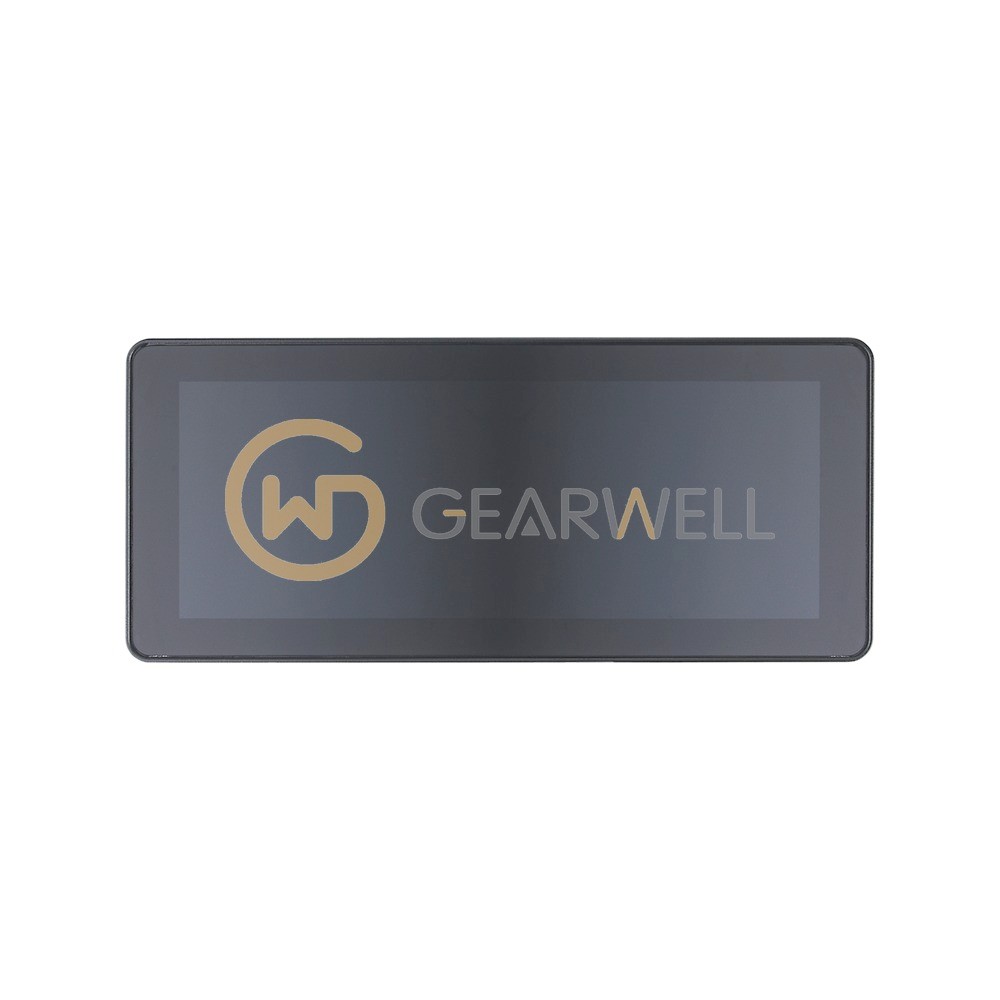

IFM CR1203 Programmable Graphic Display
- Brand
- IFM
- Model
- CR1203
- GEARWELL SKU
- GWP-000008639
- Category
- HMIs & Industrial PCs
Key specifications
- Interface
- CAN Interface 2.0 A/B ISO 11898
- Dimensions
- 160.5 x 339.1 x 47.7 mm
- Protection
- IP 65; IP 67 (for inserted connectors with individually sealed cores and inserted M12 connectors or sealing caps: IP 67)
- Operating voltage
- 8...32 DC V
- Current consumption
- < 1208 (24 V DC; with switched outputs: < 5000 mA) mA
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ifm CR1203 (ecomatDisplay/12"/8:3/Touch) is a programmable display for mobile machines with a 12.3" PCAP color touchscreen of 1280 x 480 pixels in 8:3 format, 24-bit color depth, a brightness of up to 1000 cd/m² (adjustable in 1 % steps) and a contrast ratio of 1000:1. It runs Embedded Linux 4.14 on an ARM quad-core 64-bit 1.2 GHz processor with 1 GByte RAM and 8 GByte flash, and is programmed with CODESYS 3.5 to IEC 61131-3. It has four CAN interfaces (CANopen, SAE J1939 or free protocol), two Ethernet interfaces, two USB interfaces, four analog video inputs (PAL, NTSC), stereo audio input and output, an OPC UA server, and two digital inputs and two digital outputs rated at 2500 mA. It runs on 8…32 V DC (12 / 24 V nominal, 29 W), has a powder-coated die-cast aluminum housing with hardened anti-reflective glass measuring 160.5 x 339.1 x 47.7 mm and is rated IP65 and IP67 for -30…65 °C ambient.
Technical reference
| Product name | IFM CR1203 Programmable Graphic Display |
|---|---|
| Brand | IFM |
| Model | CR1203 |
| Category | HMIs & Industrial PCs |
| Interface | CAN Interface 2.0 A/B ISO 11898 |
| Dimensions | 160.5 x 339.1 x 47.7 mm |
| Protection | IP 65; IP 67 (for inserted connectors with individually sealed cores and inserted M12 connectors or sealing caps: IP 67) |
| Operating voltage | 8...32 DC V |
| Current consumption | < 1208 (24 V DC; with switched outputs: < 5000 mA) mA |
| Communication interface | Ethernet; CAN; USB |
| Number of digital inputs | 2 |
| Number of digital outputs | 2 |
