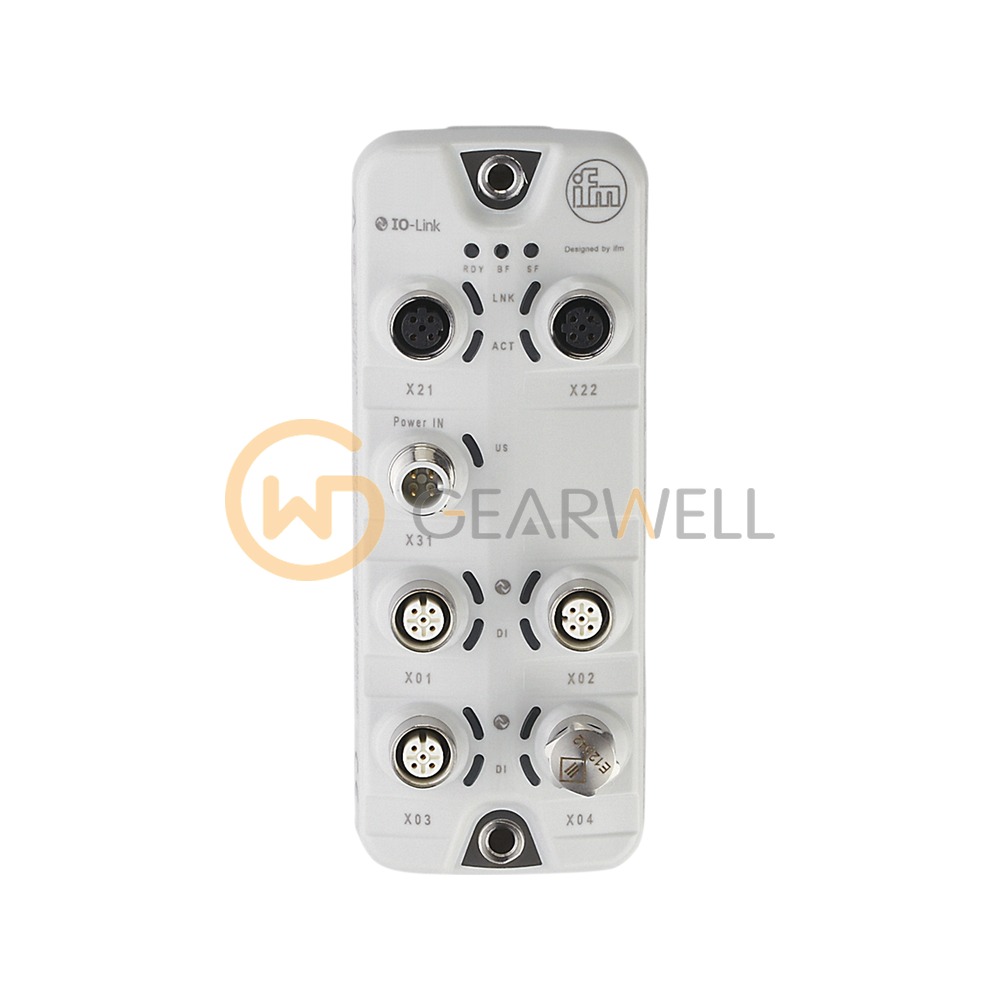

IFM AL1101 IO-Link Master with PROFINET Interface
- Brand
- IFM
- Model
- AL1101
- GEARWELL SKU
- GWP-000008620
- Category
- Industrial Communication
Key specifications
- Dimensions
- 152 x 59.3 x 38.4 mm
- Protection
- IP 65; IP 66; IP 67; IP 69K (operation with stainless steel protective caps: IP 69K)
- Operating voltage
- 20...30 DC (US ; to SELV/PELV) V
- Ambient temperature
- -25...60 °C
- Current consumption
- 300...3900 (US) mA
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ifm AL1101 (IO-Link Master SL PN 4P IP69K) is an IO-Link master with a Profinet interface (PROFINET) and 4 class A IO-Link ports. The Ethernet side supports 100Base-TX, and the fieldbus interface can be daisy-chained. ifm lists CC-C (Conformance Class C) (IRT-Switch), Netload Class III, SNMP (Simple Network Management Protocol), MRP (Media Redundancy Protocol) and line and ring network topologies. The ports work to IO-Link revision 1.1 with COM1, COM2 and COM3 transmission. They also provide 8 digital inputs and 4 digital outputs, with up to 300 mA per output and a total current load of up to 3.6 A. It runs on 20…30 V DC (US). The housing measures 152 x 59.3 x 38.4 mm and is made of grey PA, with stainless steel (1.4404 / 316L) sockets, for backplane mounting. It has one M12 connector (D-coded, 4 contacts). It is rated IP65, IP66 and IP67, and IP69K when operated with stainless steel protective caps, for -25…60 °C ambient.
Technical reference
| Product name | IFM AL1101 IO-Link Master with PROFINET Interface |
|---|---|
| Brand | IFM |
| Model | AL1101 |
| Category | Industrial Communication |
| Dimensions | 152 x 59.3 x 38.4 mm |
| Protection | IP 65; IP 66; IP 67; IP 69K (operation with stainless steel protective caps: IP 69K) |
| Operating voltage | 20...30 DC (US ; to SELV/PELV) V |
| Ambient temperature | -25...60 °C |
| Current consumption | 300...3900 (US) mA |
| Communication interface | Ethernet; IO-Link |
| Number of digital inputs | 8 (IO-Link Port Class A: 4 x 2) |
| Number of digital outputs | 4 (IO-Link Port Class A: 4 x 1) |
