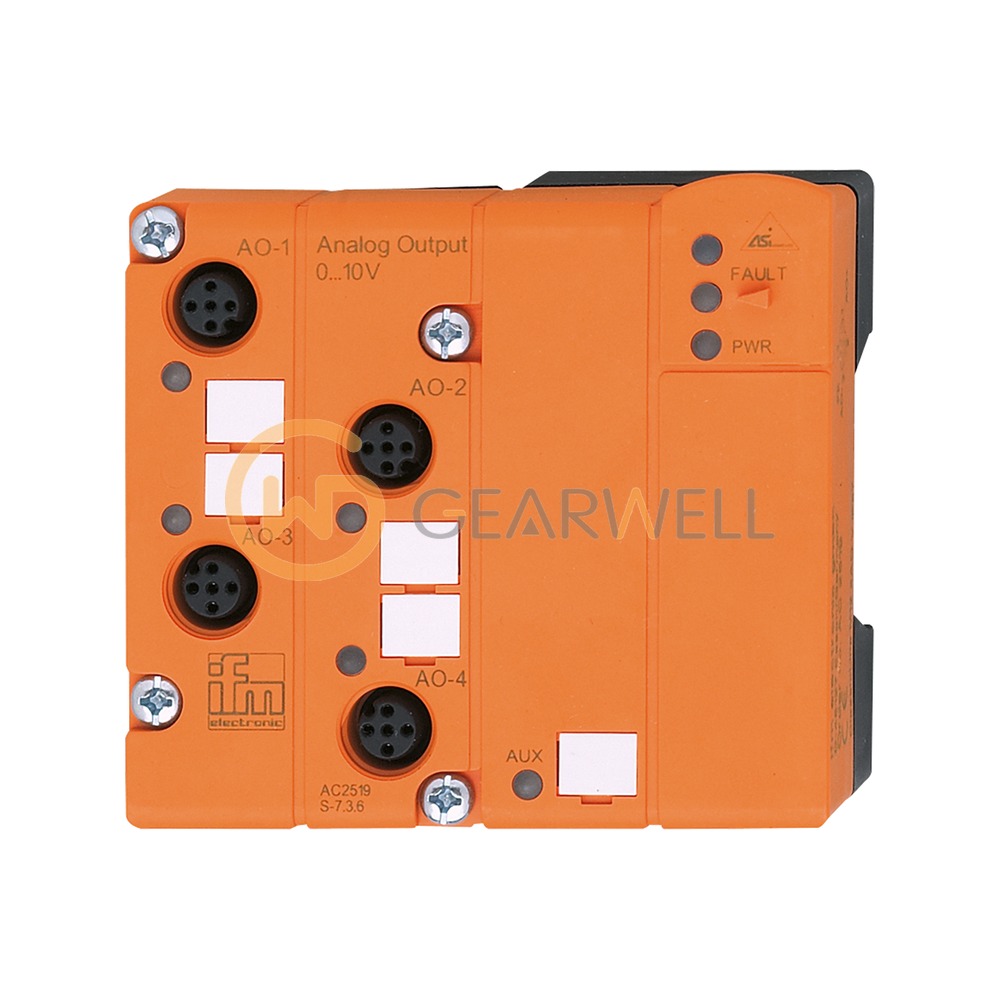

IFM AC2519 AS-Interface ClassicLine Module
- Brand
- IFM
- Model
- AC2519
- GEARWELL SKU
- GWP-000008608
- Category
- PLCs & I/O
Key specifications
- Housing
- rectangular
- Materials
- housing: PBT
- Dimensions
- 83 x 90 x 44 mm
- Protection
- IP 67
- Operating voltage
- 26.5...31.6 DC V
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ifm AC2519 (ClassicLine90 4AO (V) M12 IP67) is an AS-Interface ClassicLine module for field installation. It has four 0…10 V analog outputs. The analog outputs have a resolution of 16 bits (1 bit = 1 mV) and an accuracy of 0.5 %. On the AS-i side it uses slave profile S-7.3.6, and it works with AS-i masters of profile M3 and M4. It runs on 26.5…31.6 V DC from the AS-i line, drawing up to 157 mA, with an optional AUX supply of 24…30 V DC. The housing measures 83 x 90 x 44 mm and is made of PBT. It fits an FC or FC-E lower part, has an M12 socket (A-coded, 3-pin) and is rated IP67 for 0…70 °C ambient.
Technical reference
| Product name | IFM AC2519 AS-Interface ClassicLine Module |
|---|---|
| Brand | IFM |
| Model | AC2519 |
| Category | PLCs & I/O |
| Housing | rectangular |
| Materials | housing: PBT |
| Dimensions | 83 x 90 x 44 mm |
| Protection | IP 67 |
| Operating voltage | 26.5...31.6 DC V |
| Ambient temperature | 0...70 °C |
| Number of analogue outputs | 4 (connection of 2-wire actuator) |
| Max. current consumption from AS-i | 157 mA |
