EUCHNER 016849 Industrial Sensor
- Brand
- EUCHNER
- Model
- 016849
- GEARWELL SKU
- GWP-000003267
- Category
- Industrial Automation Parts
Key specifications
- Actuator
- Galvanized steel
- Overtravel
- max. 4 mm
- Door radius
- min. 1000 mm
- Ordernumber
- 016849
- Gross weight
- 0,038kg
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview

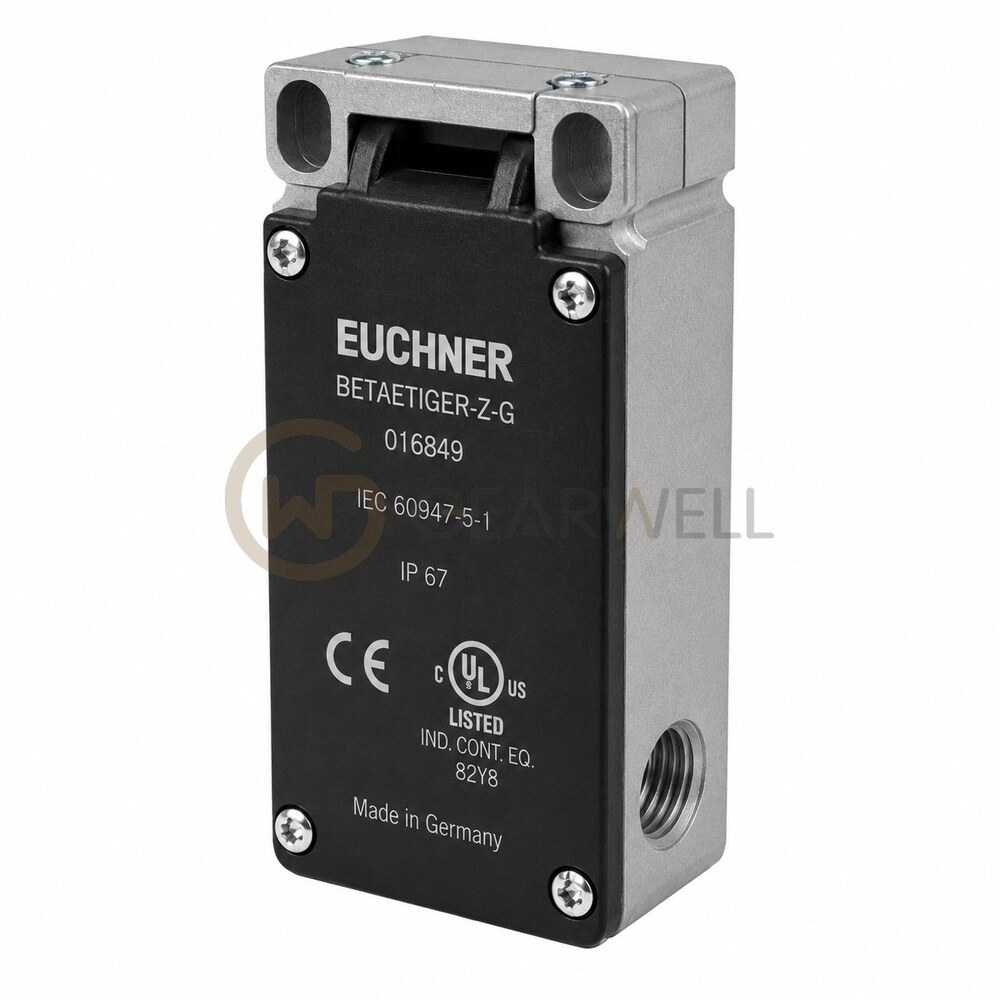

The EUCHNER BETAETIGER-Z-G is a straight actuator for EUCHNER NZ.VZ, NZ.VZ.VS and TZ safety switches, order no. 016849. It suits sliding doors and hinged doors with radii above 1000 mm and allows up to 4 mm of overtravel for doors with normal play. The actuator is galvanized steel with a plastic sheath, and two stainless steel safety screws that cannot be removed once fitted are included. It is not intended for use with an insertion funnel.
Technical reference
| Product name | EUCHNER 016849 Industrial Sensor |
|---|---|
| Brand | EUCHNER |
| Model | 016849 |
| Category | Industrial Automation Parts |
| Actuator | Galvanized steel |
| Overtravel | max. 4 mm |
| Door radius | min. 1000 mm |
| Ordernumber | 016849 |
| Gross weight | 0,038kg |
| Item designation | BETAETIGER-Z-G |
| Storage temperature | -25 ... 70 °C |
| Global Trade Item Number (GTIN) | 4047048000070 |
