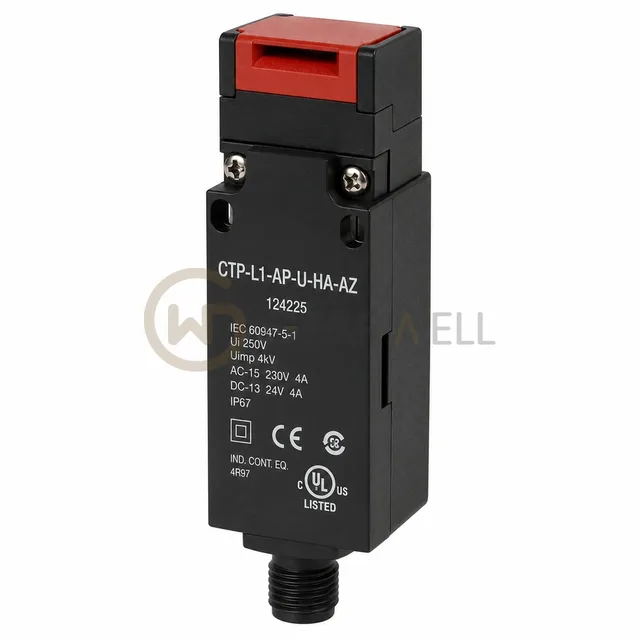

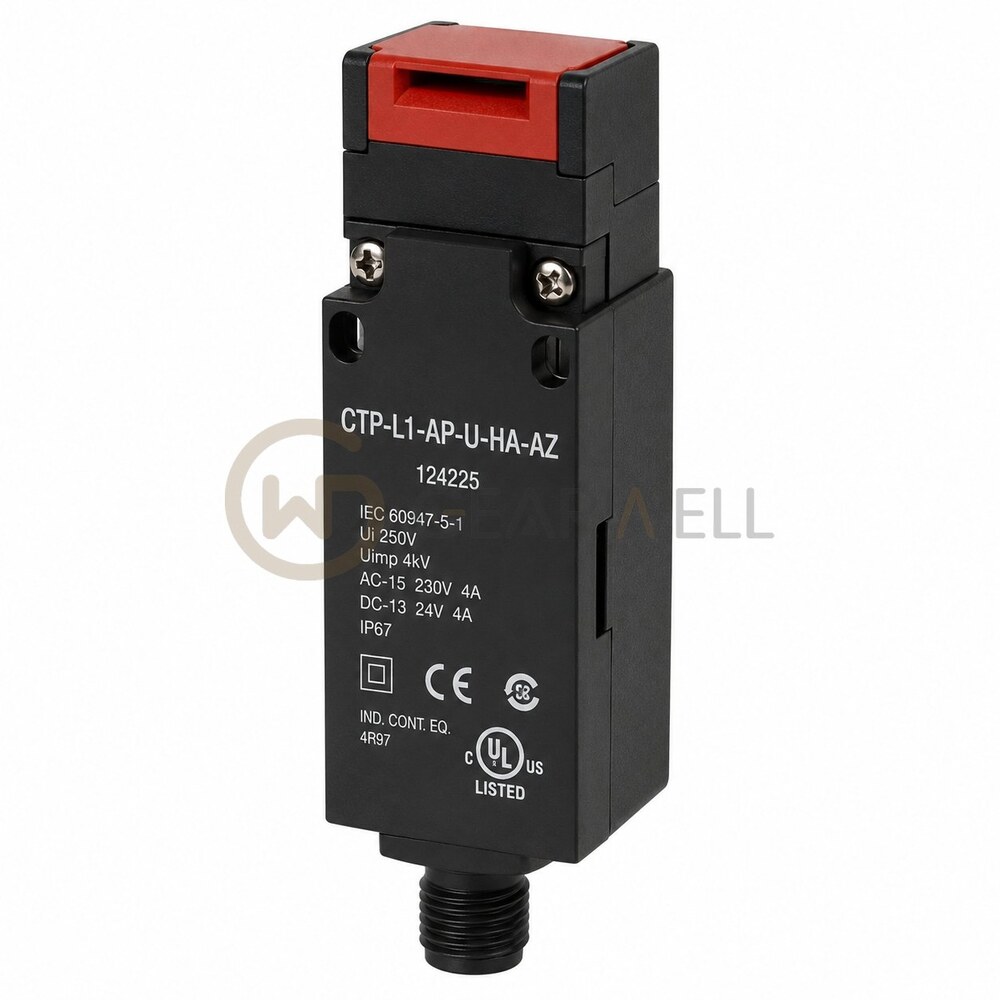

EUCHNER TP-L1-AP-U-HA-AZ-SA-124225 Safety Switch

Product overview

The EUCHNER CTP-L1-AP-U-HA-AZ-SA-124225 is a CTP-AP transponder-coded safety switch with guard locking, order no. 124225, built on the closed-circuit current principle so the guard is locked by spring force and released by the 24 V DC solenoid (power to unlock). Unicode evaluation means the switch detects only a taught-in actuator, and two semiconductor safety outputs FO1A/FO1B plus monitoring outputs OD (door position) and OI (diagnostics) are provided; guard lock monitoring reaches PL e, category 4. It connects through one 8-pin M12 plug connector and has a reinforced thermoplastic housing with a die-cast zinc switch head cover, rated IP67/IP69/IP69K for -20 to 55 °C. Locking force is 3900 N (F max) and 3000 N (F Zh), and the actuator is not included.
