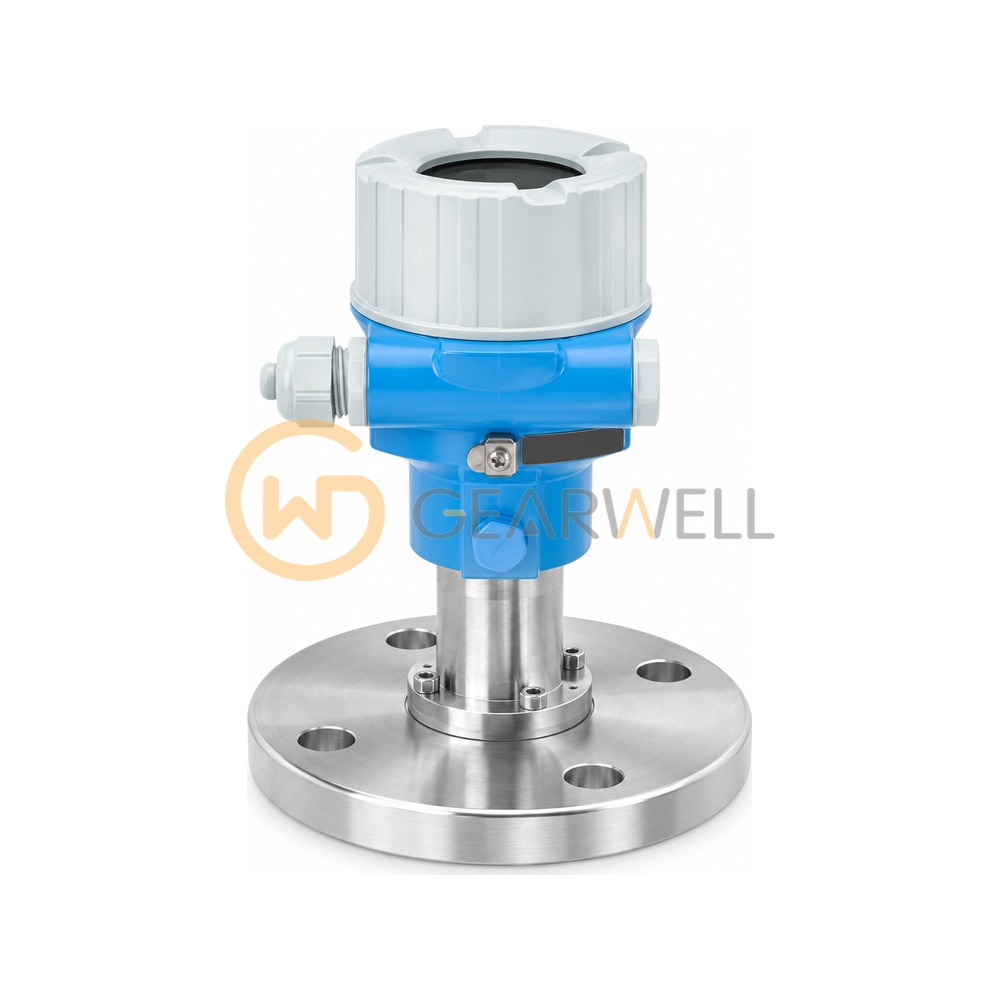

Endress+Hauser PMC51-1FNX7/0 Cerabar M Pressure Transmitter
- Brand
- Endress+Hauser
- Model
- PMC51-1FNX7/0
- GEARWELL SKU
- GWP-000013374
- Category
- Pressure, Flow & Temperature
Key specifications
- Series
- Cerabar M PMC51 (absolute/gauge pressure)
- Measuring cell
- capacitive, oil-free ceramic cell with Ceraphire diaphragm
- Output options
- 4-20 mA / 4-20 mA HART / PROFIBUS PA / FOUNDATION Fieldbus / IO-Link (selected when ordering)
- Order code "1FNX7/0"
- configured order code as collected; not decoded from an official source
- Measuring range (series)
- 100 mbar to 40 bar (1.5 to 600 psi), relative or absolute
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Endress+Hauser PMC51-1FNX7/0 Cerabar M Pressure Transmitter |
|---|---|
| Brand | Endress+Hauser |
| Model | PMC51-1FNX7/0 |
| Category | Pressure, Flow & Temperature |
| Series | Cerabar M PMC51 (absolute/gauge pressure) |
| Measuring cell | capacitive, oil-free ceramic cell with Ceraphire diaphragm |
| Output options | 4-20 mA / 4-20 mA HART / PROFIBUS PA / FOUNDATION Fieldbus / IO-Link (selected when ordering) |
| Order code "1FNX7/0" | configured order code as collected; not decoded from an official source |
| Measuring range (series) | 100 mbar to 40 bar (1.5 to 600 psi), relative or absolute |
| Reference accuracy (series) | 0.1 % standard; 0.075 % Platinum |
| Process temperature (series) | -40 to +130 (+150 for 1 h) °C |
