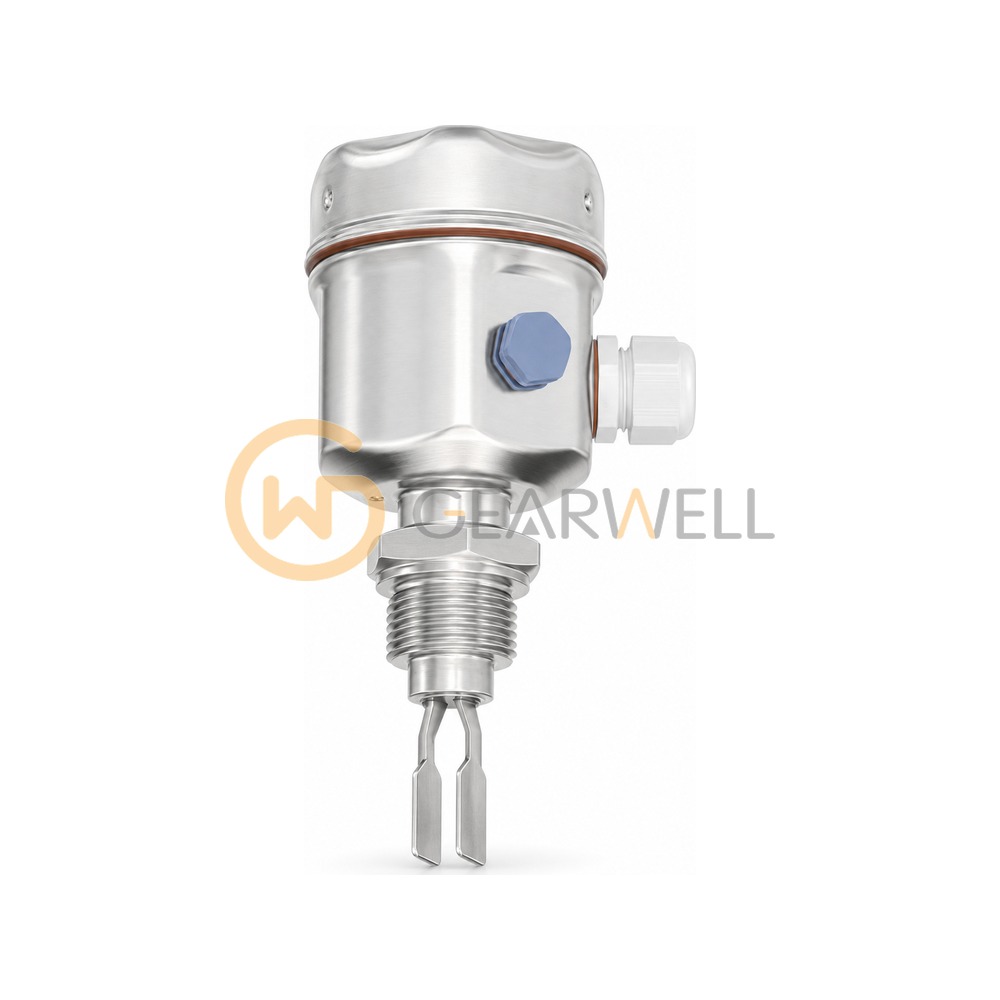

Endress+Hauser FTL50H-AMC2ADAG6C Liquiphant M Vibronic Level Switch
- Brand
- Endress+Hauser
- Model
- FTL50H-AMC2ADAG6C
- GEARWELL SKU
- GWP-000013373
- Category
- Pressure, Flow & Temperature
Key specifications
- Approval (10 = A)
- Non-hazardous area
- Process pressure
- vacuum to 64 bar
- Process temperature
- -50 to +150 °C
- Min. density of medium
- 0.5 (0.4 optional) g/cm³
- Additional option (60 = C)
- EN 10204-3.1 material (316L wetted), inspection certificate
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Endress+Hauser FTL50H-AMC2ADAG6C Liquiphant M Vibronic Level Switch |
|---|---|
| Brand | Endress+Hauser |
| Model | FTL50H-AMC2ADAG6C |
| Category | Pressure, Flow & Temperature |
| Approval (10 = A) | Non-hazardous area |
| Process pressure | vacuum to 64 bar |
| Process temperature | -50 to +150 °C |
| Min. density of medium | 0.5 (0.4 optional) g/cm³ |
| Additional option (60 = C) | EN 10204-3.1 material (316L wetted), inspection certificate |
| Electronics; output (40 = A) | FEL50A, PROFIBUS PA |
| Probe length; type (30 = AD) | Compact; Ra < 0.3 µm / 12 µin |
| Housing; cable entry (50 = G6) | F15 316L hygiene, IP66/67, M20 threaded joint |
| Process connection (20 = MC2) | DIN 11851 DN40 PN25, 316L |
