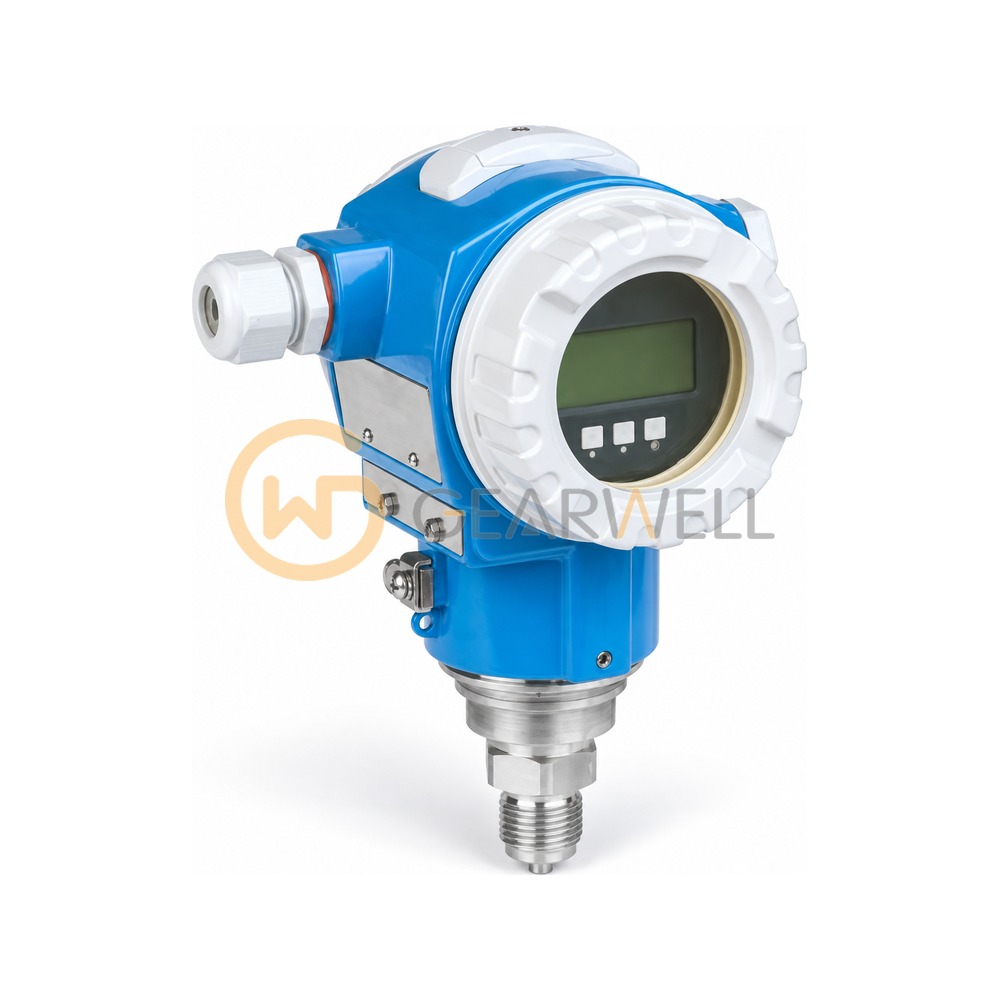

Endress+Hauser PMP71-RAC1H41RAAAA Cerabar S Pressure Transmitter
- Brand
- Endress+Hauser
- Model
- PMP71-RAC1H41RAAAA
- GEARWELL SKU
- GWP-000013375
- Category
- Pressure, Flow & Temperature
Key specifications
- Housing (30 = C)
- Aluminium T14, IP66/67/NEMA 4X/6P, thread 1/2 NPT
- Approval (10 = R)
- FM NI, Class I, Division 2, Groups A-D
- Fill fluid (90 = A)
- Silicone oil
- Sensor range (40 = 1H)
- 1 bar / 100 kPa / 15 psi gauge; OPL 10 bar
- Calibration unit (50 = 4)
- sensor range; inH2O/ftH2O
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Endress+Hauser PMP71-RAC1H41RAAAA Cerabar S Pressure Transmitter |
|---|---|
| Brand | Endress+Hauser |
| Model | PMP71-RAC1H41RAAAA |
| Category | Pressure, Flow & Temperature |
| Housing (30 = C) | Aluminium T14, IP66/67/NEMA 4X/6P, thread 1/2 NPT |
| Approval (10 = R) | FM NI, Class I, Division 2, Groups A-D |
| Fill fluid (90 = A) | Silicone oil |
| Sensor range (40 = 1H) | 1 bar / 100 kPa / 15 psi gauge; OPL 10 bar |
| Calibration unit (50 = 4) | sensor range; inH2O/ftH2O |
| Output; operation (20 = A) | 4-20 mA HART, operation outside, LCD |
| Process connection (70 = RA) | ANSI 1/2 MNPT, 1/4 FNPT, AISI 316L (CRN) |
| Process isolating diaphragm (60 = 1) | AISI 316L |
| Additional options 1 / 2 (100, 110 = A, A) | Not selected / Not selected |
