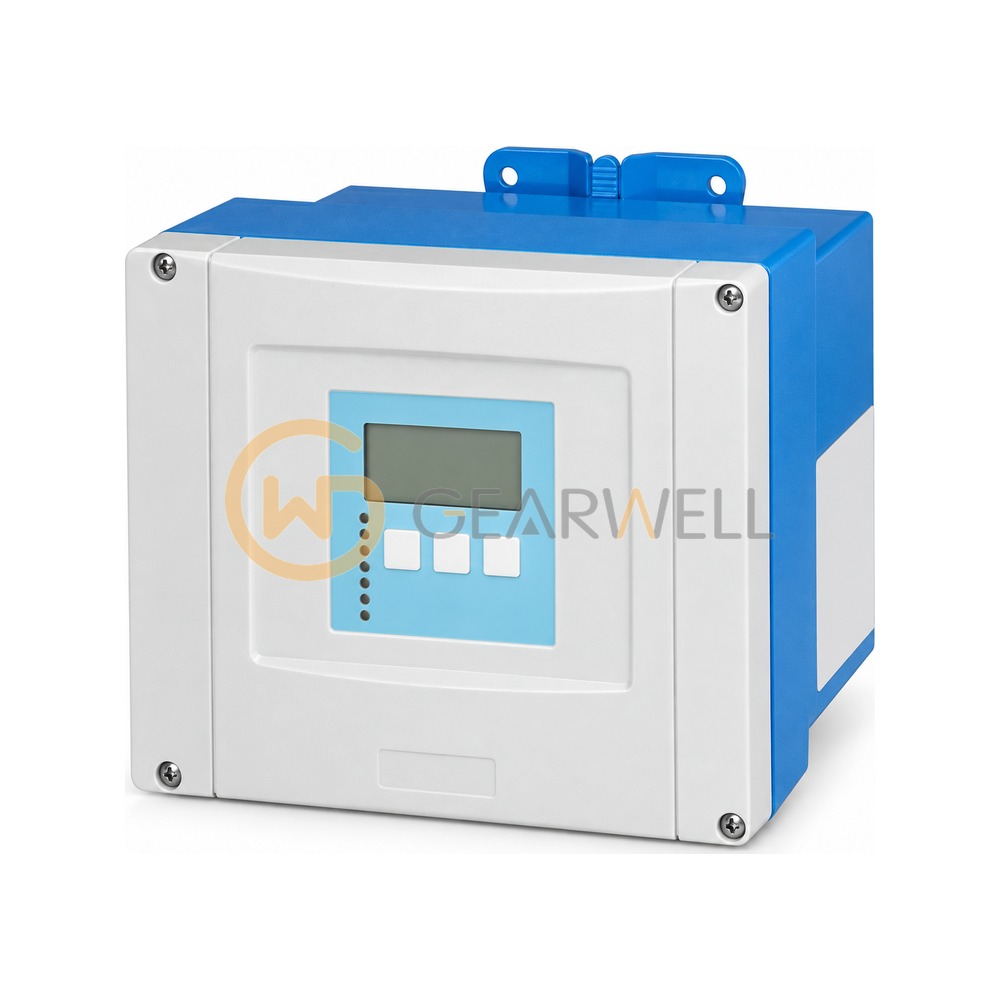

Endress+Hauser FMU90-R11CB161AA1A Prosonic S Ultrasonic Transmitter
- Brand
- Endress+Hauser
- Model
- FMU90-R11CB161AA1A
- GEARWELL SKU
- GWP-000013372
- Category
- Pressure, Flow & Temperature
Key specifications
- Code tail "AA1A"
- same tail as Instrumart-decoded FMU90-R11CA112AA1A: additional output without; language English/German/Dutch/French/Spanish/Italian/Portuguese; basic version; marking without
- Output (pos. 8 = 1)
- 1 x 0/4-20 mA HART
- Display (pos. 4 = C)
- Illuminated display + keypad
- Housing (pos. 3 = 1)
- Field housing polycarbonate, IP66 NEMA4x
- Measuring range
- up to 45 (148 ft) m
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Endress+Hauser FMU90-R11CB161AA1A Prosonic S Ultrasonic Transmitter |
|---|---|
| Brand | Endress+Hauser |
| Model | FMU90-R11CB161AA1A |
| Category | Pressure, Flow & Temperature |
| Code tail "AA1A" | same tail as Instrumart-decoded FMU90-R11CA112AA1A: additional output without; language English/German/Dutch/French/Spanish/Italian/Portuguese; basic version; marking without |
| Output (pos. 8 = 1) | 1 x 0/4-20 mA HART |
| Display (pos. 4 = C) | Illuminated display + keypad |
| Housing (pos. 3 = 1) | Field housing polycarbonate, IP66 NEMA4x |
| Measuring range | up to 45 (148 ft) m |
| Approval (pos. 1 = R) | Non-hazardous area |
| Application (pos. 2 = 1) | Level + pump control, alternating |
| Level input (pos. 6 = 1) | 1 x sensor FDU9x/8x |
| Power supply (pos. 5 = B) | 10.5-32 V DC |
| Switch output (pos. 7 = 6) | 6 x relay, SPDT |
