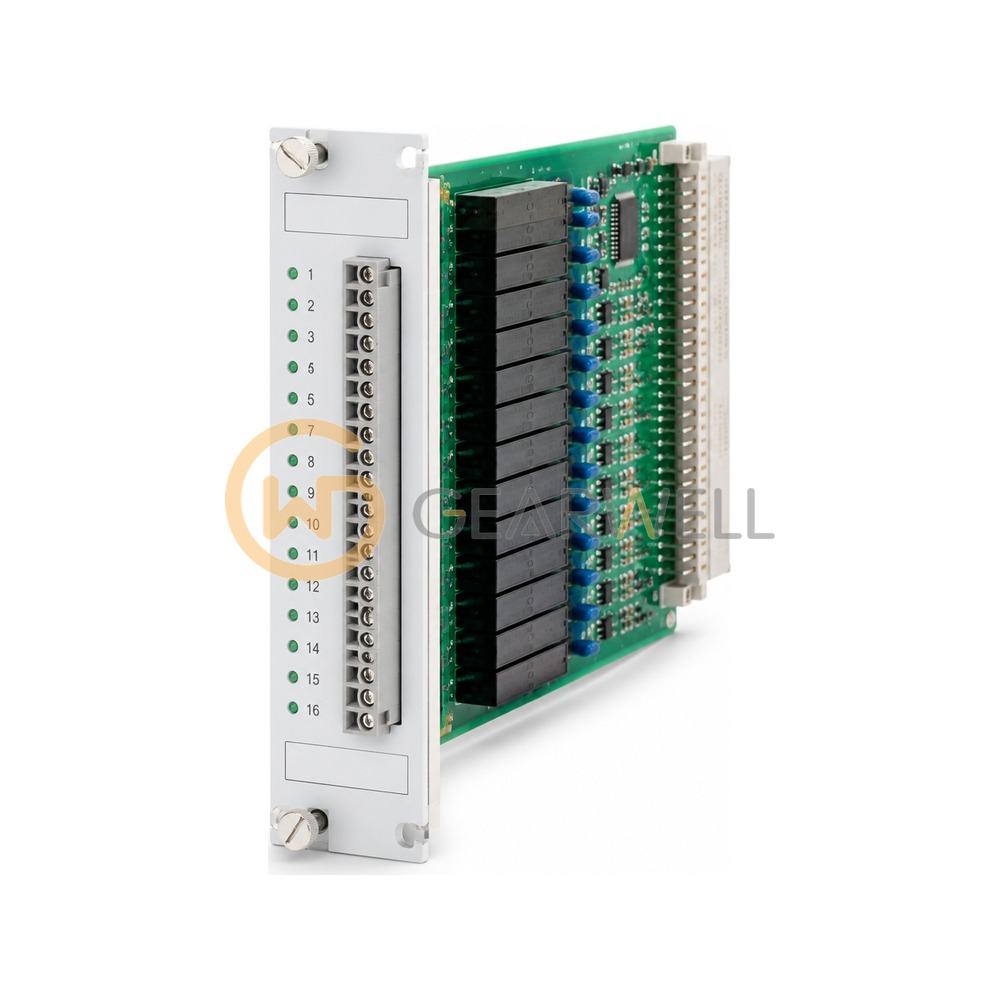

EMERSON A6740 AMS 6500 16-Channel Output Relay Module
- Brand
- EMERSON
- Model
- A6740
- GEARWELL SKU
- GWP-000033826
- Category
- Test & Measurement
Key specifications
- Logic
- up to 30 logic expressions; time delay 0-30 s
- Inputs
- 60 (channel clear, alert, danger)
- Part number
- 9199-00035
- Module width
- 60 mm (12 TE), 3 HE
- Product line
- AMS 6500 / CSI 6500 Machinery Health Monitor
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | EMERSON A6740 AMS 6500 16-Channel Output Relay Module |
|---|---|
| Brand | EMERSON |
| Model | A6740 |
| Category | Test & Measurement |
| Logic | up to 30 logic expressions; time delay 0-30 s |
| Inputs | 60 (channel clear, alert, danger) |
| Part number | 9199-00035 |
| Module width | 60 mm (12 TE), 3 HE |
| Product line | AMS 6500 / CSI 6500 Machinery Health Monitor |
| Relay outputs | 16, SPDT, 48 V / 1 A contact load |
| Power consumption | max. 6 W |
| Operating temperature | 0 to 65 °C |
