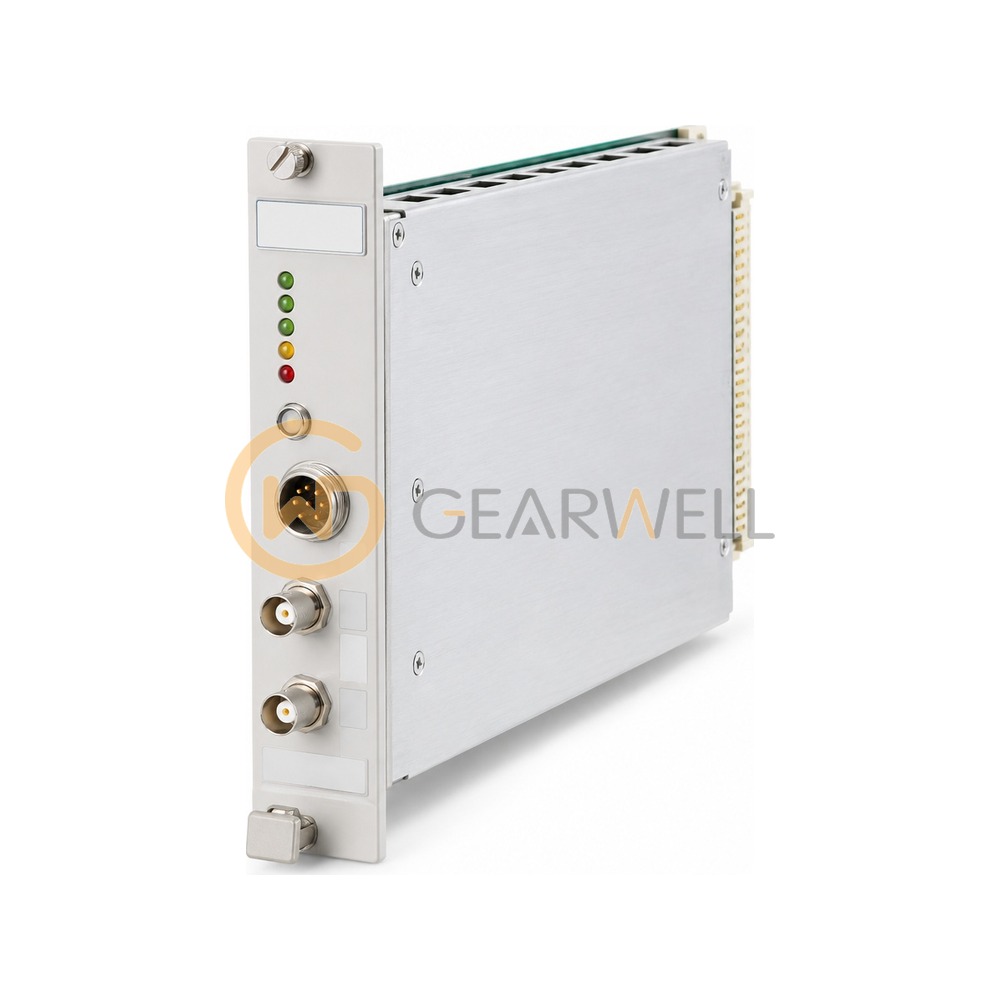

EMERSON A6140 AMS 6500 Shaft Absolute Vibration Monitor
- Brand
- EMERSON
- Model
- A6140
- GEARWELL SKU
- GWP-000033817
- Category
- Test & Measurement
Key specifications
- Format
- 3U, 1-slot plug-in module, API 670 compliant, hot swappable
- Outputs
- 0/4-20 mA per channel
- Channels
- 2 (independent or combined)
- Input type
- Eddy current, seismic or piezoelectric, differential
- Seller code
- A6140 9199-00058 (as collected; 9199-00058 not found in an opened official source)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | EMERSON A6140 AMS 6500 Shaft Absolute Vibration Monitor |
|---|---|
| Brand | EMERSON |
| Model | A6140 |
| Category | Test & Measurement |
| Format | 3U, 1-slot plug-in module, API 670 compliant, hot swappable |
| Outputs | 0/4-20 mA per channel |
| Channels | 2 (independent or combined) |
| Input type | Eddy current, seismic or piezoelectric, differential |
| Seller code | A6140 9199-00058 (as collected; 9199-00058 not found in an opened official source) |
| Model number | A6140 |
| Product line | AMS 6500 / CSI 6500 machinery protection (Emerson, formerly epro) |
| Sensor inputs | Ch1: 6422, 6423, 6424, 6425; Ch2: 6125 |
| Power consumption | max. 6 W, 250 mA at 24 VDC |
