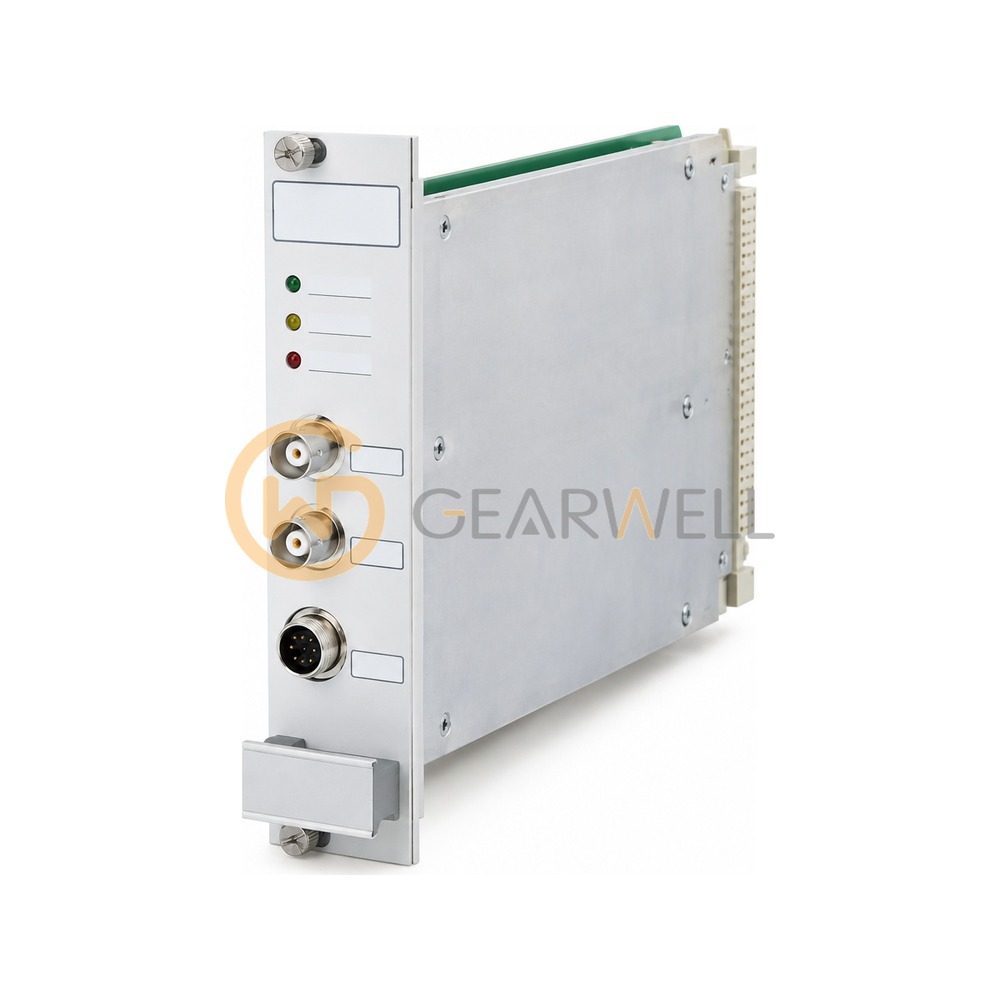

EMERSON A6110 AMS 6500 Shaft Relative Vibration Monitor
- Brand
- EMERSON
- Model
- A6110
- GEARWELL SKU
- GWP-000033814
- Category
- Test & Measurement
Key specifications
- Format
- 3U, 1-slot plug-in module, API 670 compliant, hot swappable
- Outputs
- 0/4-20 mA and 0-10 V per channel
- Channels
- 2 (independent or combined)
- Input type
- Eddy current, differential
- Model number
- A6110
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | EMERSON A6110 AMS 6500 Shaft Relative Vibration Monitor |
|---|---|
| Brand | EMERSON |
| Model | A6110 |
| Category | Test & Measurement |
| Format | 3U, 1-slot plug-in module, API 670 compliant, hot swappable |
| Outputs | 0/4-20 mA and 0-10 V per channel |
| Channels | 2 (independent or combined) |
| Input type | Eddy current, differential |
| Model number | A6110 |
| Product line | AMS 6500 / CSI 6500 machinery protection (Emerson, formerly epro) |
| Sensor inputs | 6422, 6423, 6424, 6425 with driver CON 011/91, 021/91, 041/91 |
| Measuring range | 0-400 to 0-8000 (adjustable) mV |
| Power consumption | max. 6 W, 250 mA at 24 VDC |
| Input voltage range | 0 to -22 VDC |
