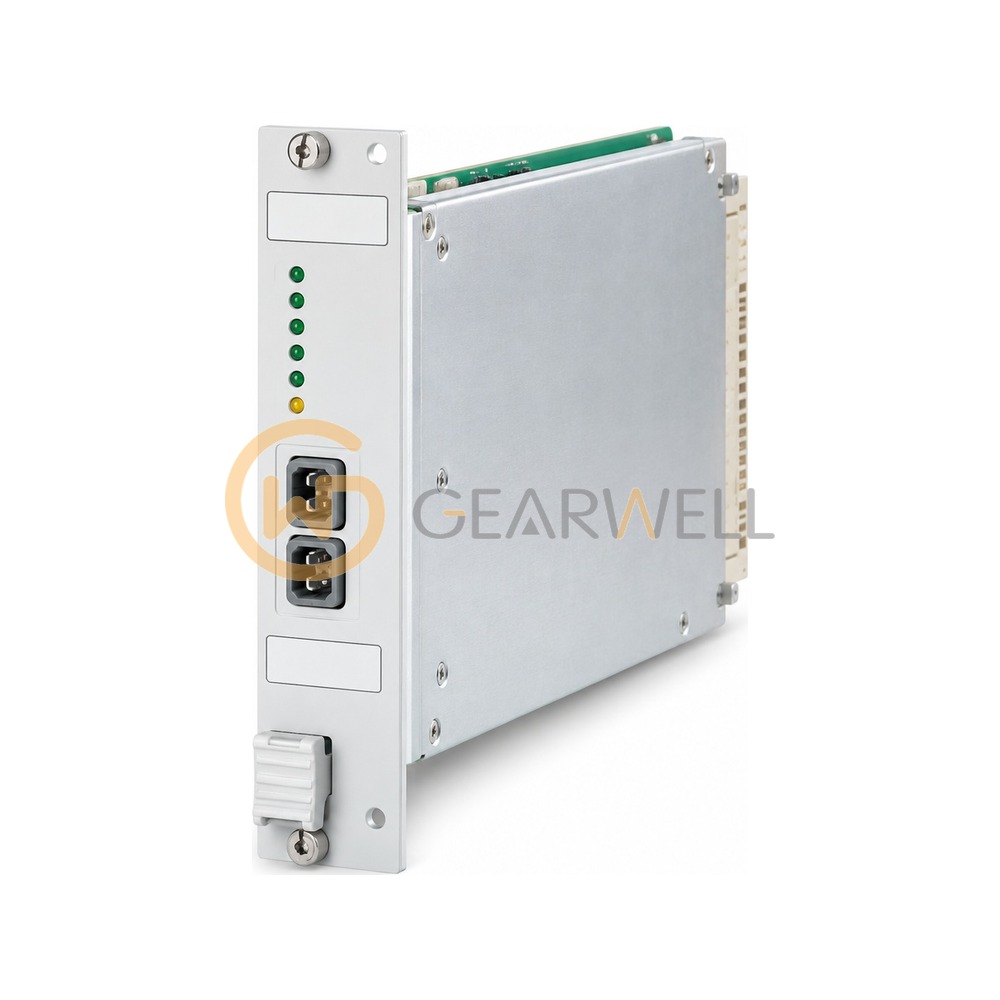

EMERSON A6410 AMS 6500 Valve and Case Expansion Monitor
- Brand
- EMERSON
- Model
- A6410
- GEARWELL SKU
- GWP-000033822
- Category
- Test & Measurement
Key specifications
- Inputs
- 2, independent differential inputs
- Input type
- Inductive half bridge, full bridge, differential transformer (LVDT)
- Module size
- 3U, 1-slot plug-in
- Product line
- AMS 6500 / CSI 6500 machinery protection (classic cards)
- Current outputs
- 0/4-20 mA per channel
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | EMERSON A6410 AMS 6500 Valve and Case Expansion Monitor |
|---|---|
| Brand | EMERSON |
| Model | A6410 |
| Category | Test & Measurement |
| Inputs | 2, independent differential inputs |
| Input type | Inductive half bridge, full bridge, differential transformer (LVDT) |
| Module size | 3U, 1-slot plug-in |
| Product line | AMS 6500 / CSI 6500 machinery protection (classic cards) |
| Current outputs | 0/4-20 mA per channel |
| Voltage outputs | 0 - 10 V DC per channel |
| Compatible sensors | PR 9350/xx, K20315/xx |
| Measuring frequency range | 0 - 100 (-3 dB) Hz |
